AS480 Replace Stamford Automatic Voltage Regulator AVR AS480

Product Name: AVR AS480
Model Number: AS480
Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single package size: 15X10X5 cm
Single gross weight:0.50 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

  AS480 Replace Stamford Automatic Voltage Regulator AVR AS480


AS480 Replace Stamford Automatic Voltage Regulator AVR AS480 Specifications:

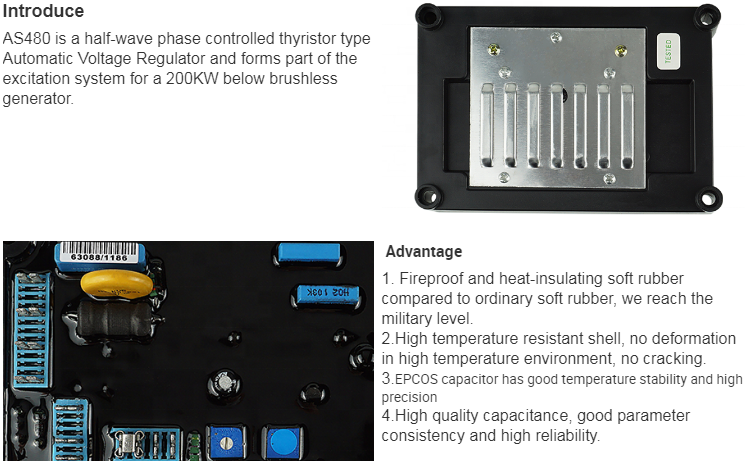

AS480 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a 200KW below brushless generator.


Specification

Sensing Input/Power input

120(95132VAC)240(190-264),1 phase,2wire


Magnetic field output

voltage

max 90VDC at 207VAC input

current

continuous 4A,intermittent 10A

Pressure regulationg accuracy

<+/-%RMS with 4% engine governing

AS480 Replace Stamford Automatic Voltage Regulator AVR AS480 Fetures:



How to choose Stanford Generator AVR

Generator/AVR

SA465

SA465

SX460

SX440

SX421

MS341

MX321

BC16



STD





BC182



STD





BC184

AUX WDG

OPT

STD


LOOSE



UC224



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

UC274



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

HC4




STD

OPT

OPT(PMG)

OPT(PMG)

HC5




STD

OPT

OPT(PMG)

OPT(PMG)

HC6







STD

HC/MV7







STD

Product Name

Generator Universal AVR AS480

Sensing/Power input

Voltage

120(95-132Vac)240(190-264Vac),1 phase 2 wire jumper selectable

Frequency

50/60 Hz jumper selectable

Output

Voltage

Max. 90 Vdc @ 207 Vac input

Current

Continuous 4A,Intermittent 6A

Voltage Regulation

< +/-1% (with 4% engine governing)

Features

* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator

How To Choose Your AVR

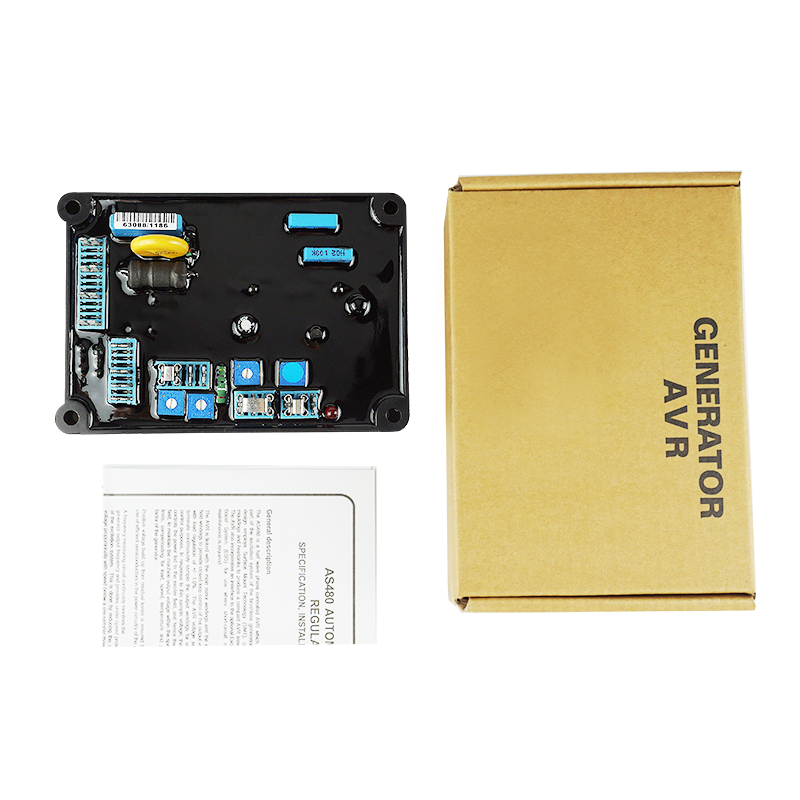

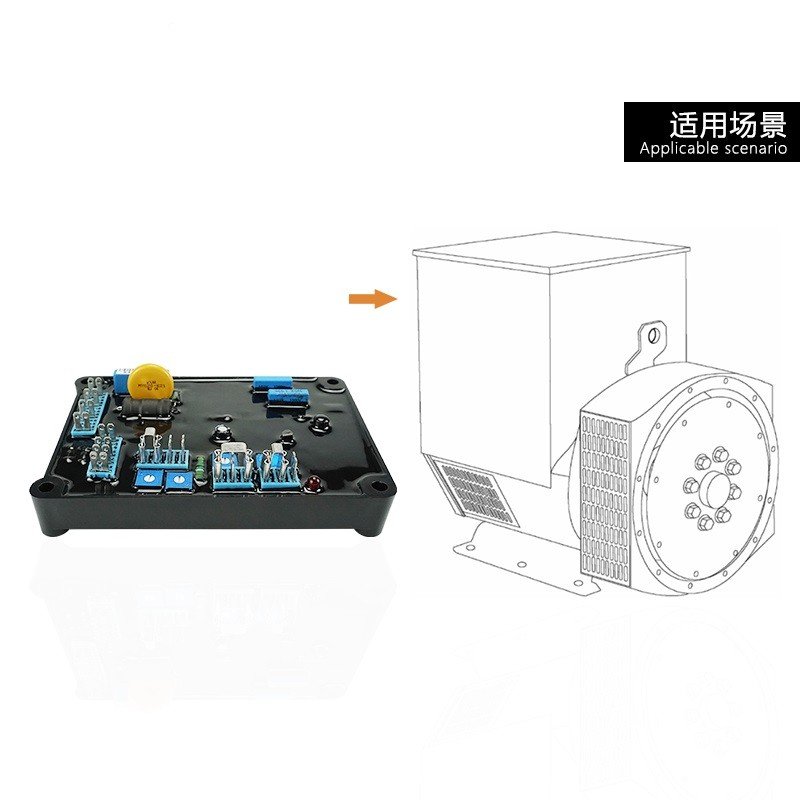

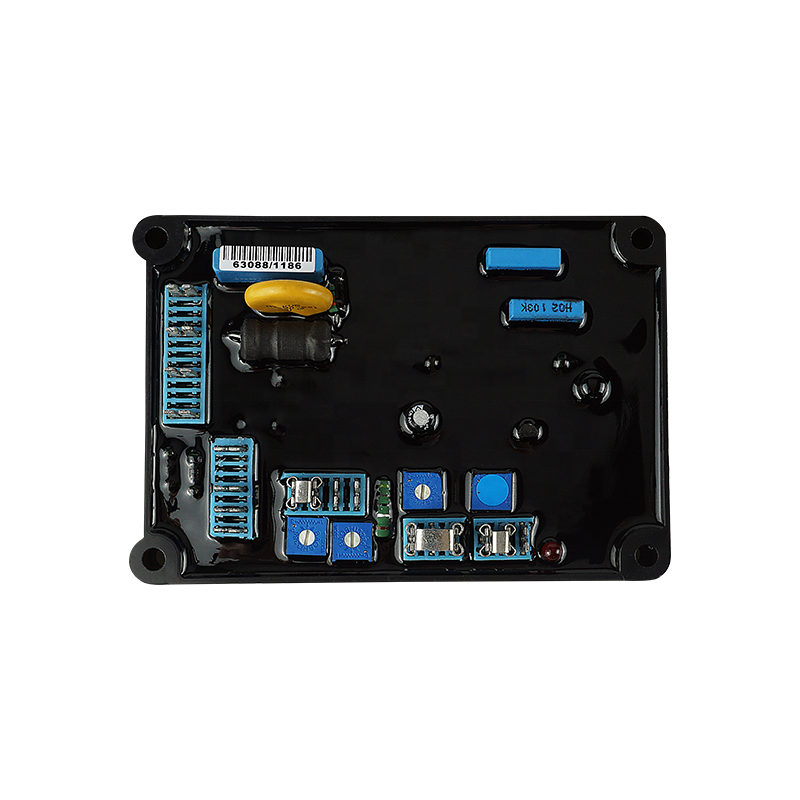

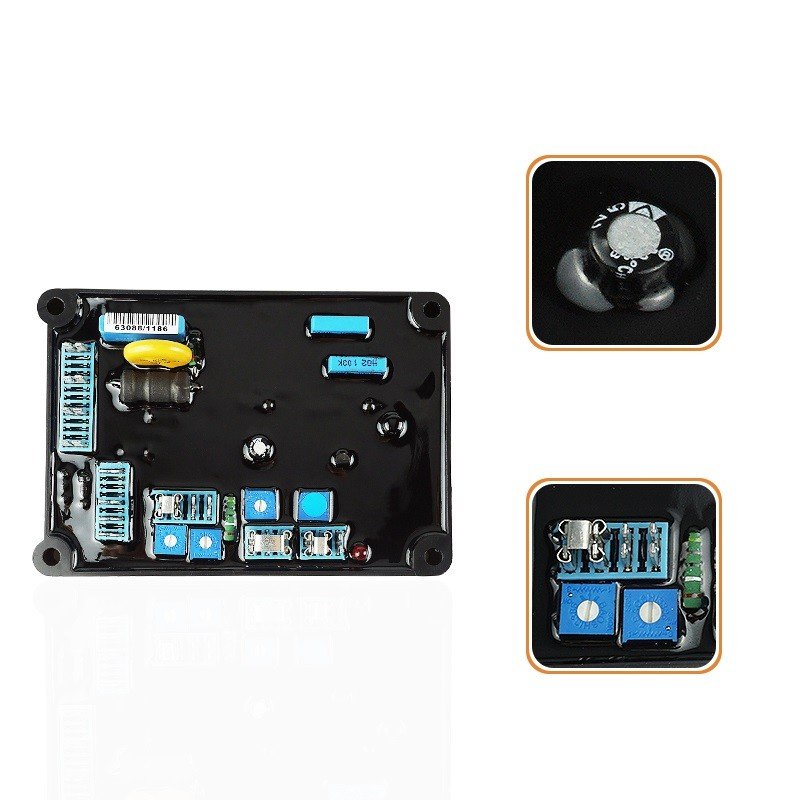

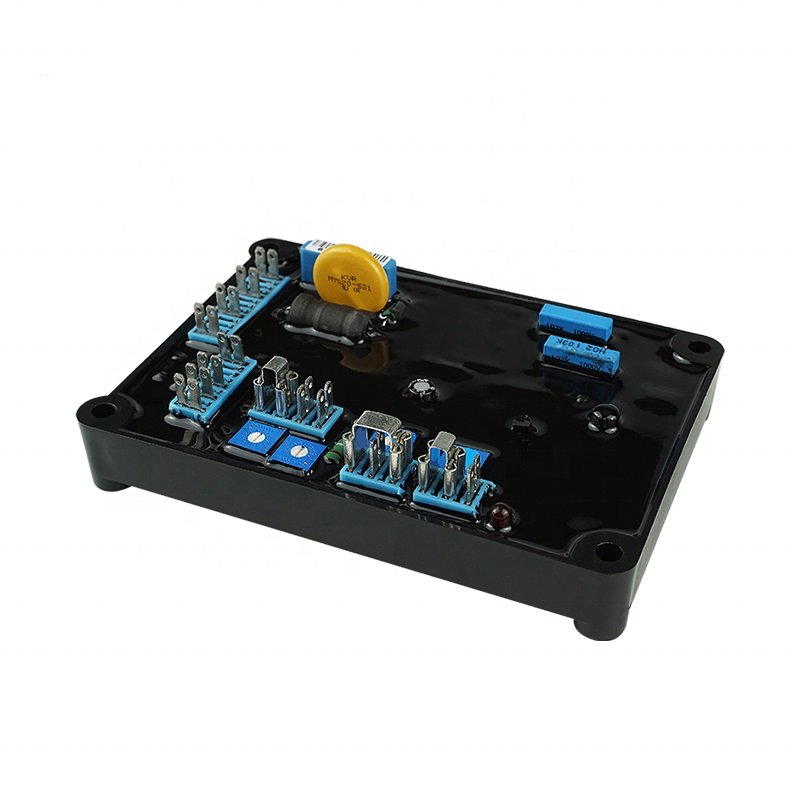

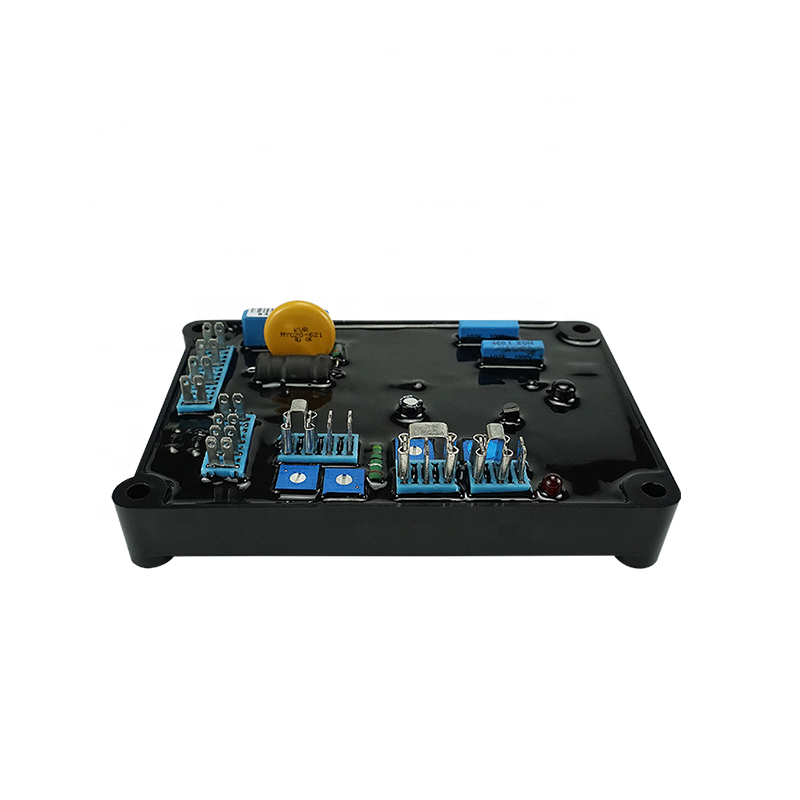

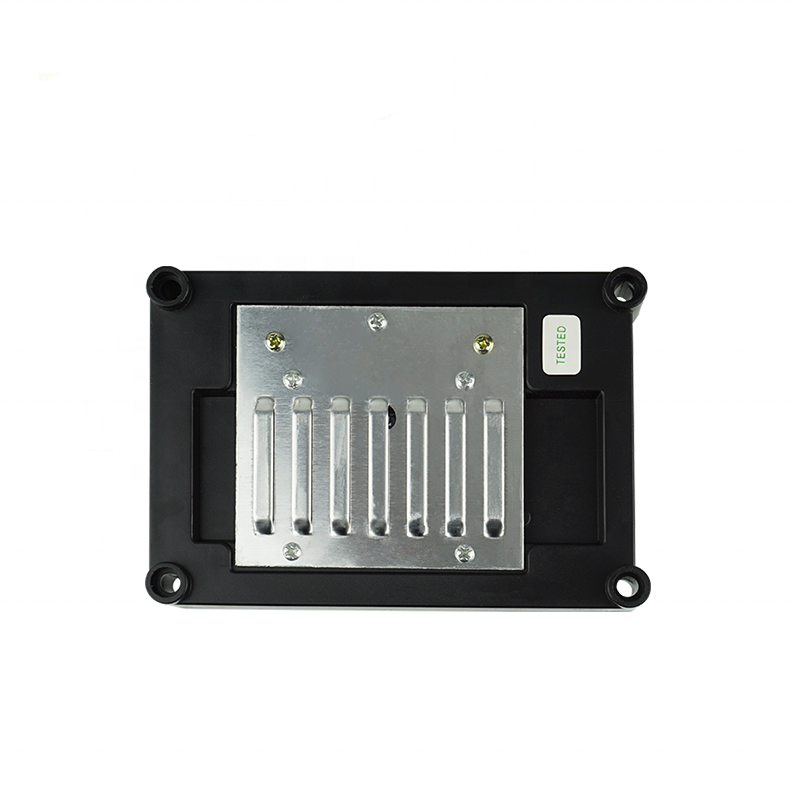

AS480 Replace Stamford Automatic Voltage Regulator AVR AS480 Pictures:

More Genset Parts:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
