GB160 Brush Alternator ST AVR GB160 for Generator with Carbon Brush

Product Name: GB160 For Generator
Model Number: GB160
Usage: For Generator
Function: Replace For siemens avr GB160
Phase: Three Phase and Single Phase
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single package size: 12X9X6 cm
Single gross weight: 1.000 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

GB160 Brush Alternator ST AVR GB160 for Generator with Carbon Brush Specifications:


Generator Automatic Voltage Regulator GB-170 GB-160 AVR is used for variety of single-phase-excitation three-phase alternator or used for phase-compound-excitation alternator


Automatic voltage regulator GB160 AVR(110V, 220, 230V, 380V)

Seinsing Input Voltage: 110/220VAC

Frequency: 50-60Hz

Exiciting voltage: 20-130VDC

Current: 10A

Regulation: +/-1%

Output Currunt 15Amax

Product Name

Brush Alternator Universial AVR GB-160 For Generator With Carbon Brush

Sensing/Power input

Voltage

110/220Vac,3 phase ,3 wire

Frequency

50/60 Hz jumper selectable

Output

Voltage

20-100Vdc

Shunt Current

10A

Features:

* Voltage regulation < +/-1%

* Soft start voltage ramping

* Sensing voltage loss protection

* 120 or 240 Vac sensing, jumper selectable

* Under frequency roll off protection

* With under frequency LED indicator


Single Phase brush Generator Voltage Regulator

GB-160 Voltage

110v/220Vac single-phase wire

GB-170Voltage

400vac .three phase .three wire

Frequency

50/60hz

Excitation voltage

voltage:20~130VDC

Adjustment current

current 10A

voltage regulation

<1%(engine speed changes within 4%)

AUTOMATIC VOLTAGE REGULATOR

AVR FOR BRUSH ALTERNTOR 2KW-50KW

brush generator voltage regulator ST is single phase voltage regulator.please check ST picture!

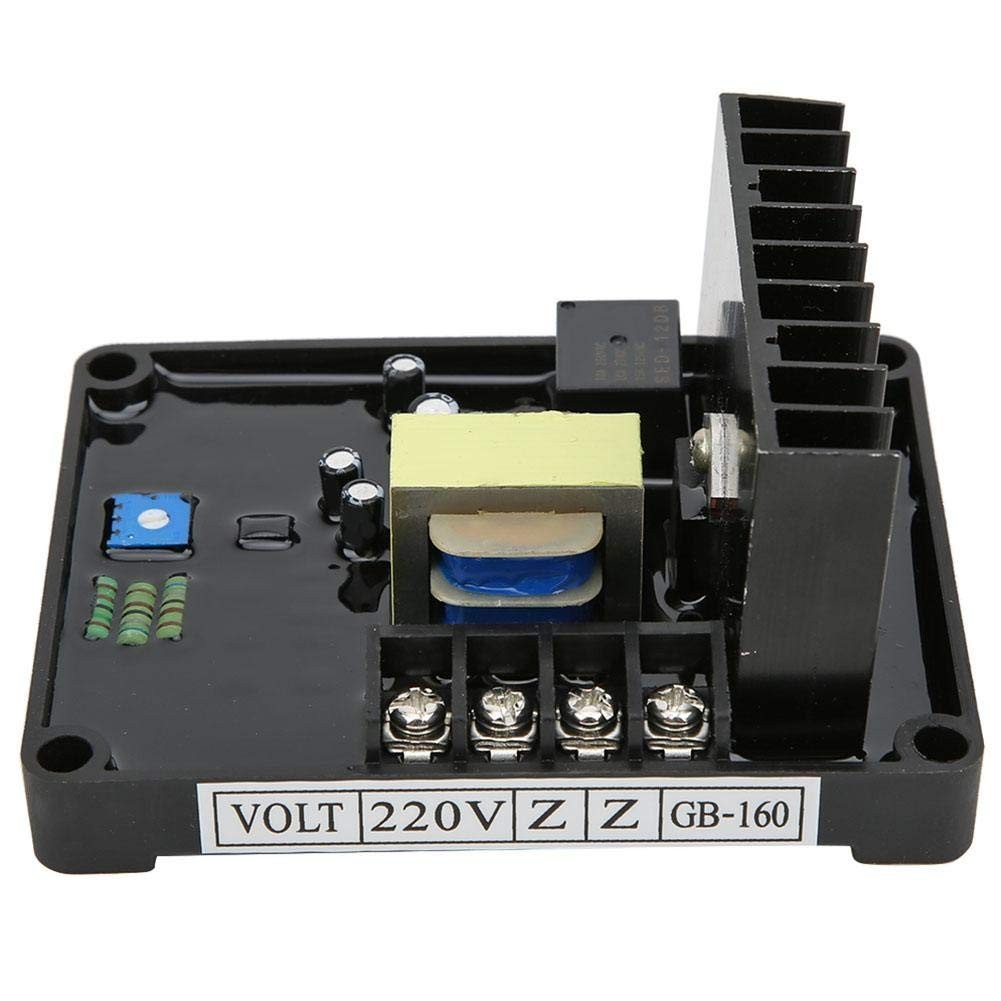

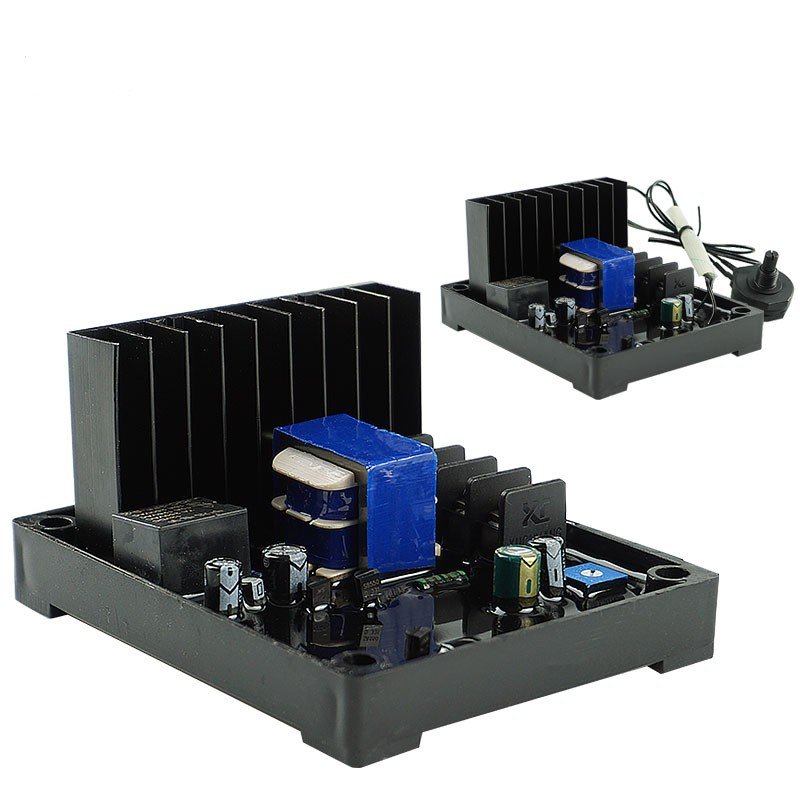

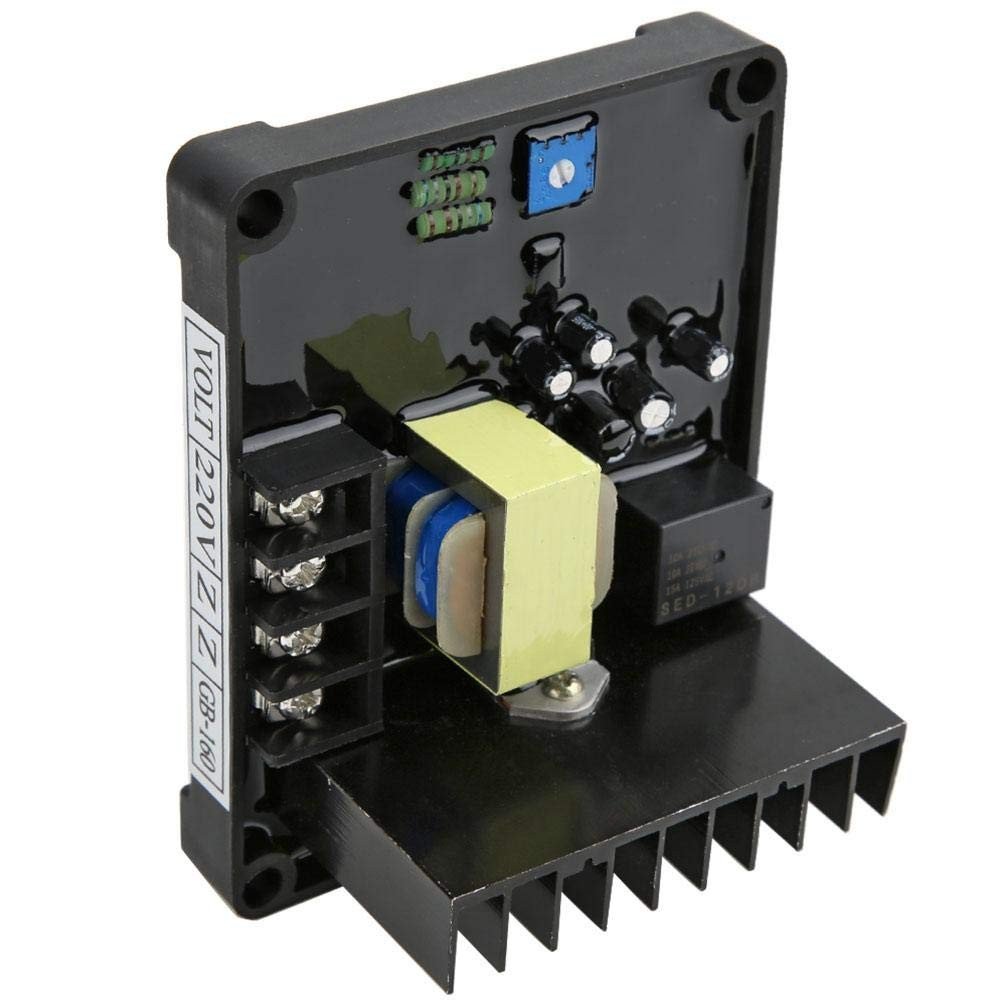

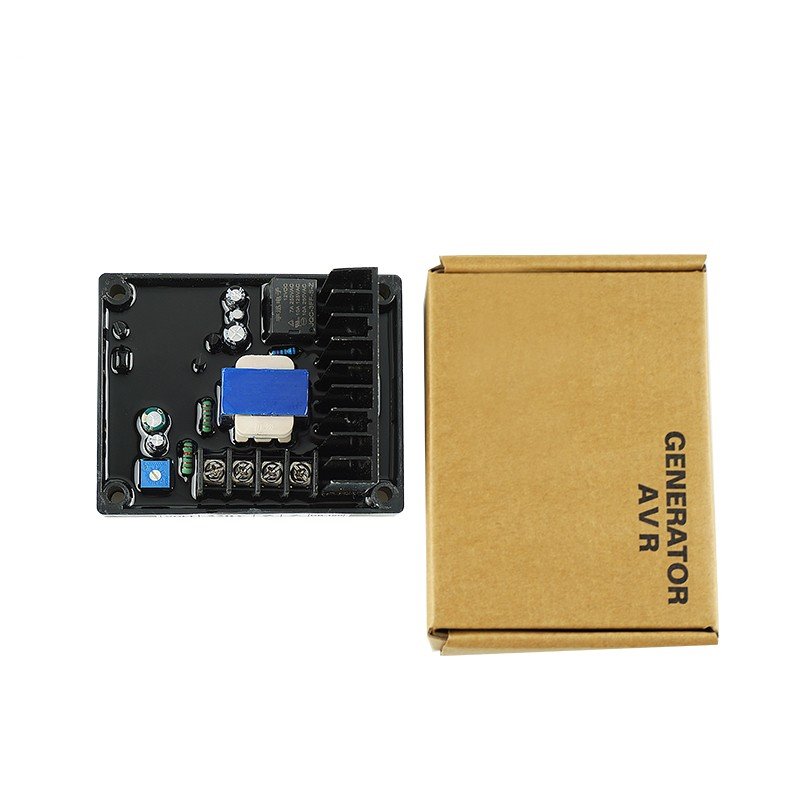

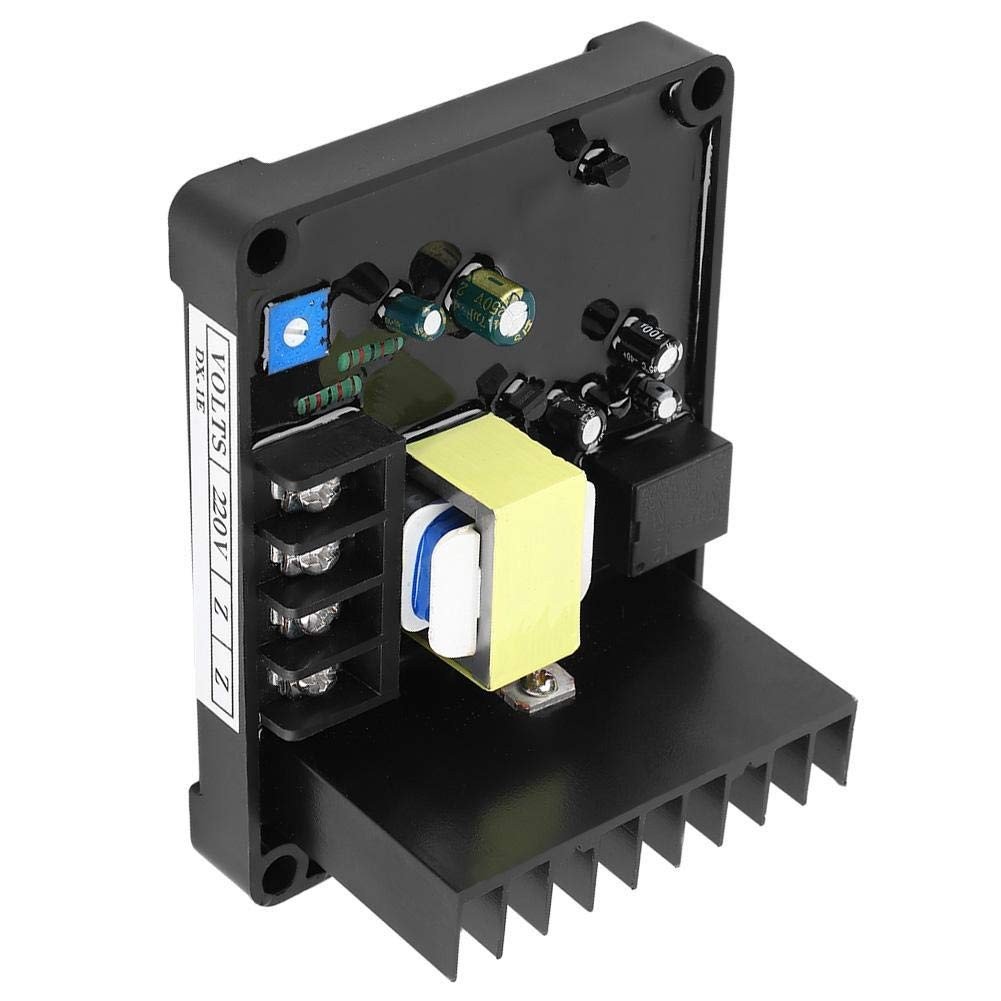

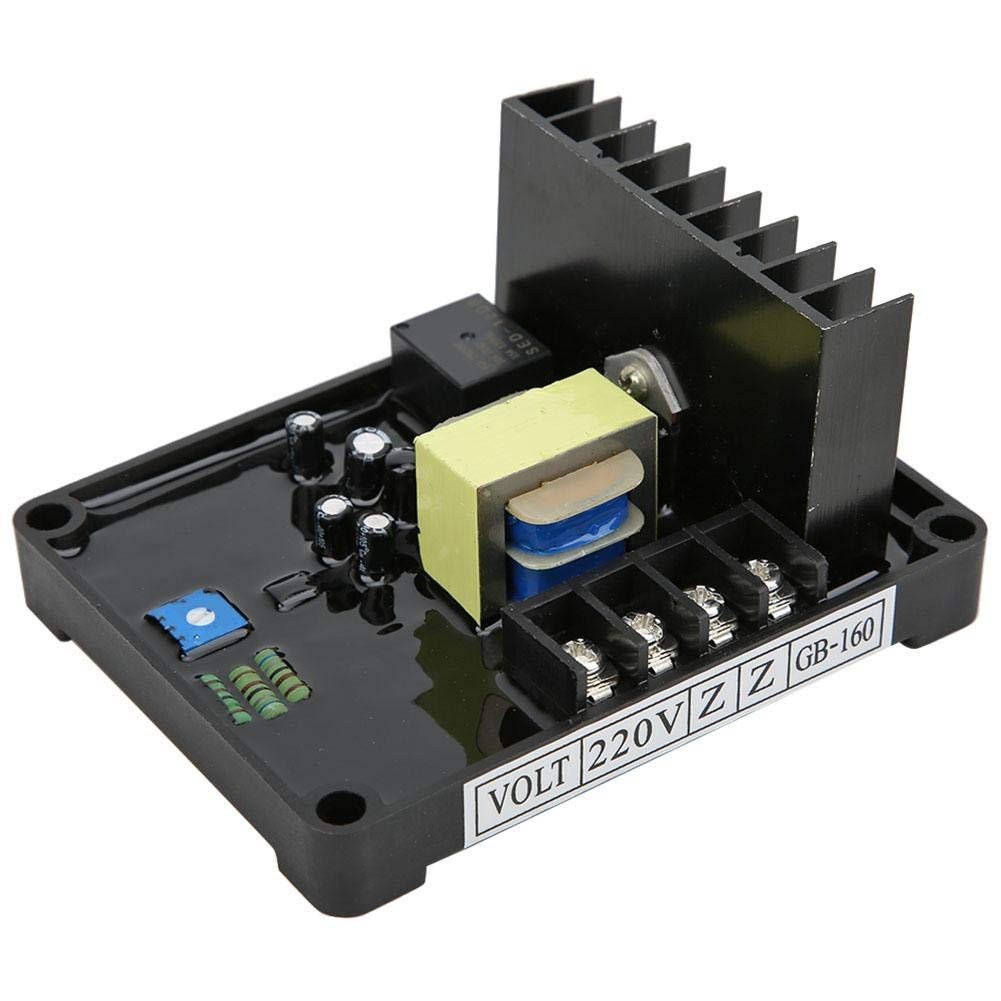

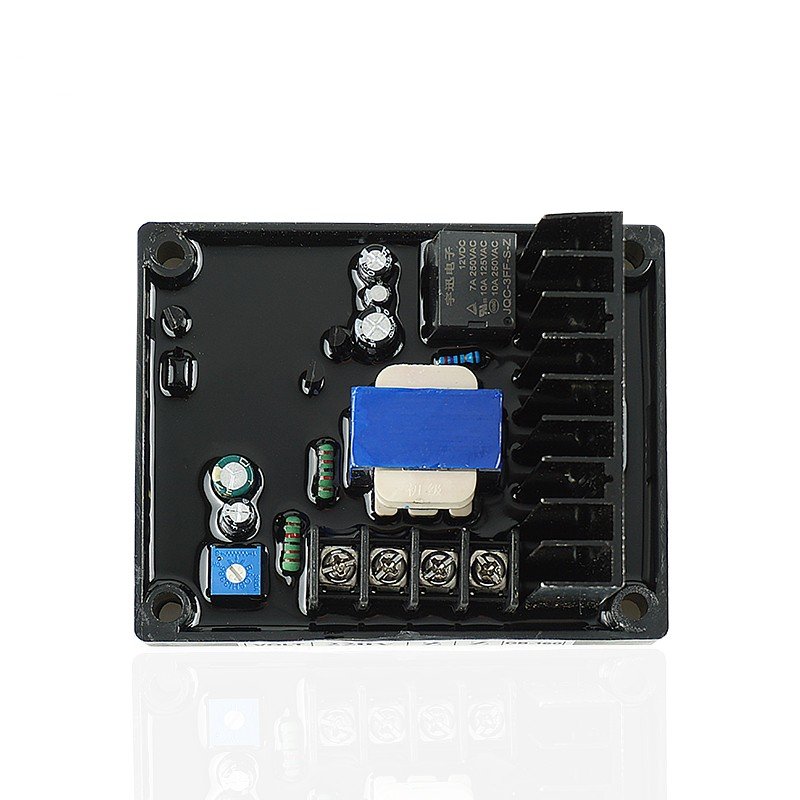

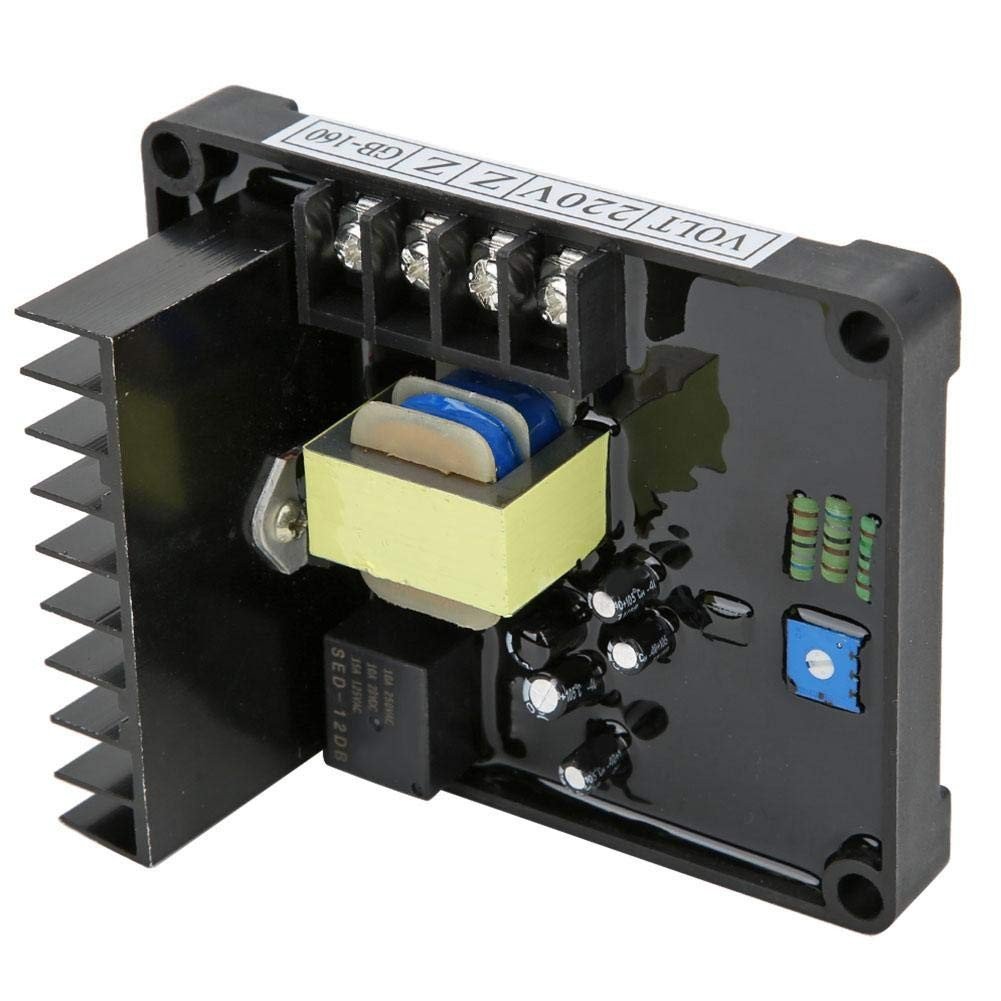

AVR GB160 Pictures:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
