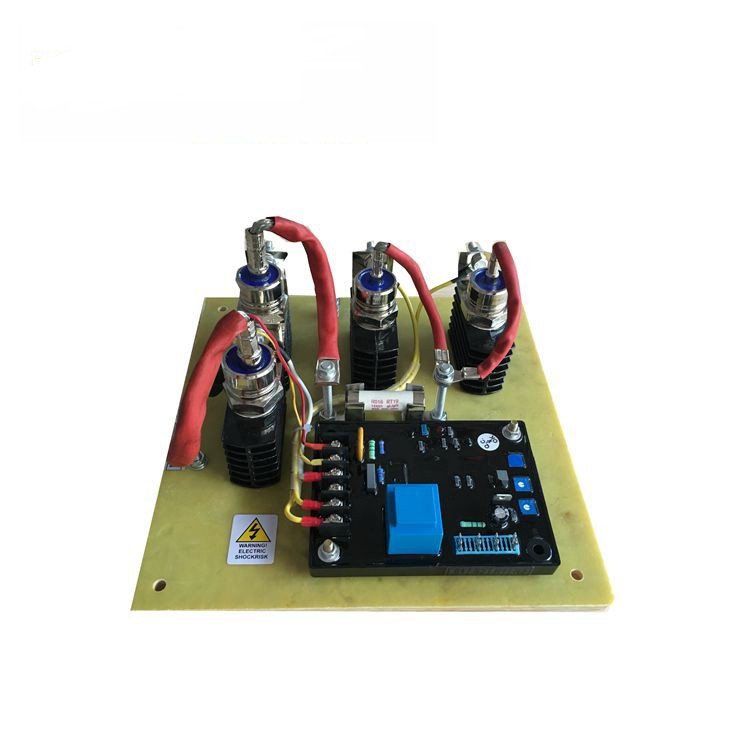

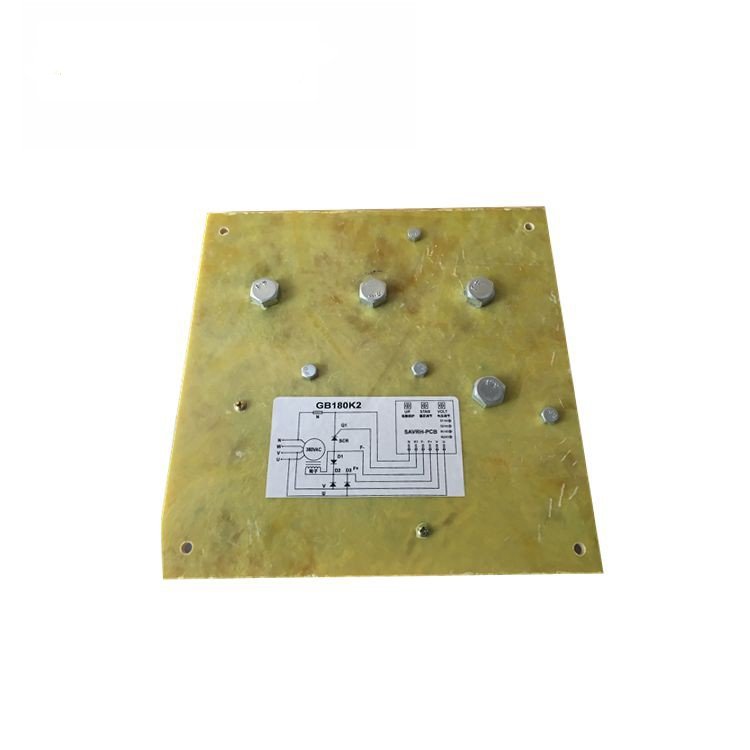

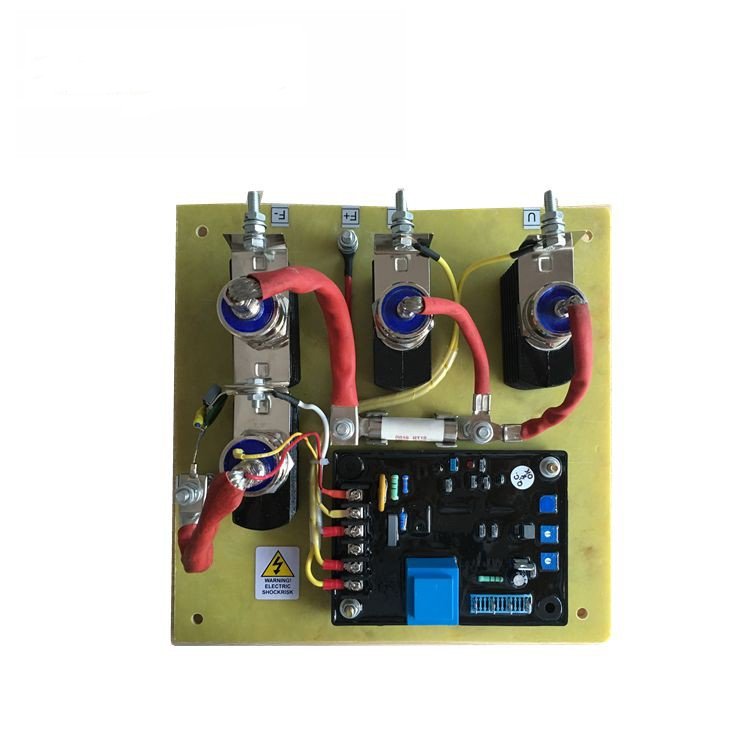

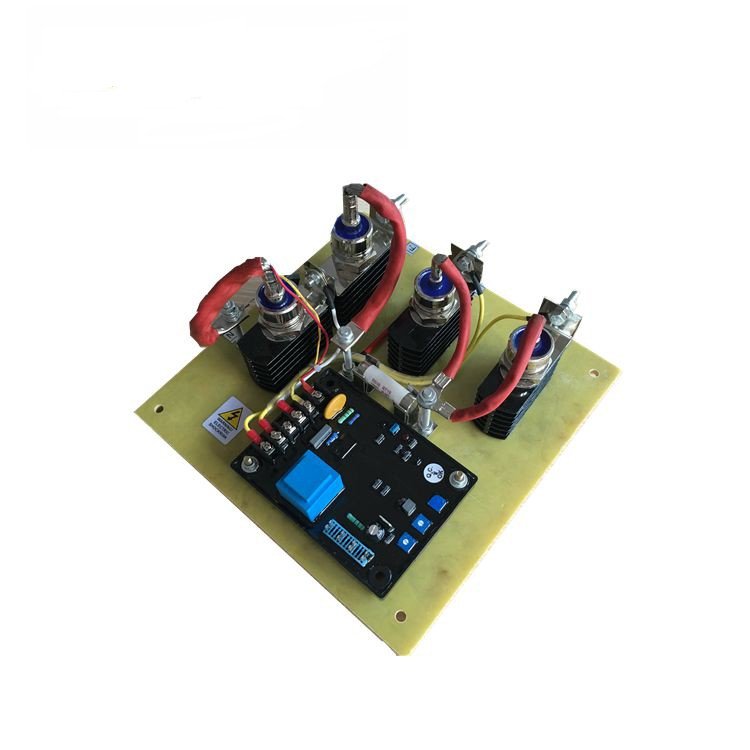

Big Amp 100A AVR for Brush Type Generator SAVRH-100A GAVR 100A

Big Amp 100A AVR for Brush Type Generator SAVRH-100A GAVR 100A

Product Name: Generator AVR GAVR-100A
Model Number: GAVR-100A
Usage: For Denyo Generator
Phase: Three Phase and Single Phase
Quality Class: A grade high quality
Warranty: 1 Year
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
SENSING/POWER INPUT Voltage: 120 (90-140VAC)
MAGNETIC FIELD OUTPUT Voltage: Max 100VDC at 207VAC
Current: Continuous 8A Intermittent 10A within 10 seconds
PRESSURE REGULATING ACCURACY: <+/-1%RMS with 4% engine governing
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Big Amp 100A AVR for Brush Type Generator SAVRH-100A GAVR 100A Specifications:

Big Amp 100A AVR for Brush Type Generator SAVRH-100A GAVR 100A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Brush Type Generator SAVRH-100A GAVR 100A Features:

Product Name	GAVR-100A
SENSING/POWER INPUT
Voltage	120 (90-140VAC)
MAGNETIC FIELD OUTPUT
Voltage	Max 100VDC at 207VAC input
Current	Continuous 8A Intermittent 10A within 10 seconds
PRESSURE REGULATING ACCURACY	<+/-1%RMS with 4% engine governing

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that each product is used by customers assured.
