SX460 Regulator For Generator Replace Stamford Newage Voltage Regulator SX460 AVR

Product Name: AVR SX460
Model Number: SX460
Capacitor Color: Gray, Blue, and Red Capacitor for option

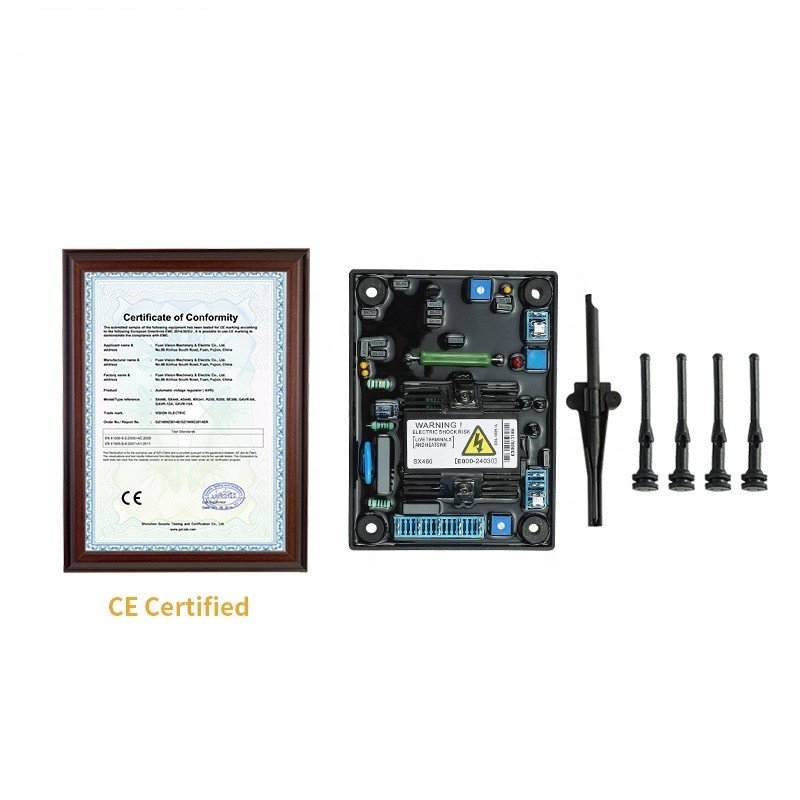

Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single package size: 16X10.5X6 cm
Single gross weight:0.40 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

SX460 Regulator For Generator Replace Stamford Newage Voltage Regulator SX460 AVR


AVR SX460 Specifications:

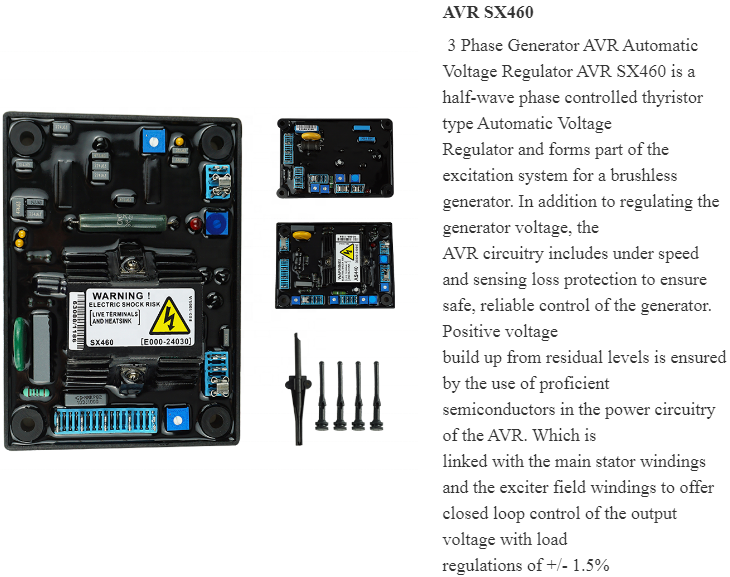

SX460 is a half-wave phase-controlled thyristor type automatic voltage (AVR) and forms part of the excitation system for a
bruch-less generator.
In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.
Positive voltage builds up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR. Runs freely in high-temperature environment, responds extremely fast, builds voltage quickly, stable and reliable, giving you a fine quality experience.



AVR SX460 Features:

Main material: PCB
Main color: black
Input power: 7,8=100V~265V AC 50/60Hz
Maximum output:
6A, 63V DC (when the input power is 220V AC)
6A, 40V DC (when the input power is 110V AC)
Voltage regulation factor: ≤1%
Generator field resistance: 12Ω (minimum)
External potentiometer: 2KΩ1/2W potentiometer ±8%
Voltage establishment (initial): when the residual magnetic voltage is greater than 5V/25Hz, the voltage is automatically
established.
Build voltage time: 1.8s
Operating temperature: -40ºC~60ºC
Recovery time: ≤2s
Item size: 136 * 102 * 38mm / 5.4 * 4.0 * 1.5in
Item weight: 360g / 12.7ounce
Package size: 175 * 150 * 65mm / 6.9 * 5.9 * 2.6in
Package weight: 400g / 0.9lb

Product Name

SX460

SENSING/POWER INPUT


Voltage

120(90-132VAC) or 240(190-264VAC), 1 phase 2 wire

MAGNETIC FIELD OUTPUT


Voltage

max 90VDC at 207VAC input

Current

continuous 4A, intermittent 10A within 10 seconds

PRESSURE REGULATING ACCURACY

<+/-1%RMS with 4% engine governing


How to choose Stanford Generator AVR

Generator/AVR

SA465

SA465

SX460

SX440

SX421

MS341

MX321

BC16



STD





BC182



STD





BC184

AUX WDG

OPT

STD


LOOSE



UC224



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

UC274



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

HC4




STD

OPT

OPT(PMG)

OPT(PMG)

HC5




STD

OPT

OPT(PMG)

OPT(PMG)

HC6







STD

HC/MV7







STD

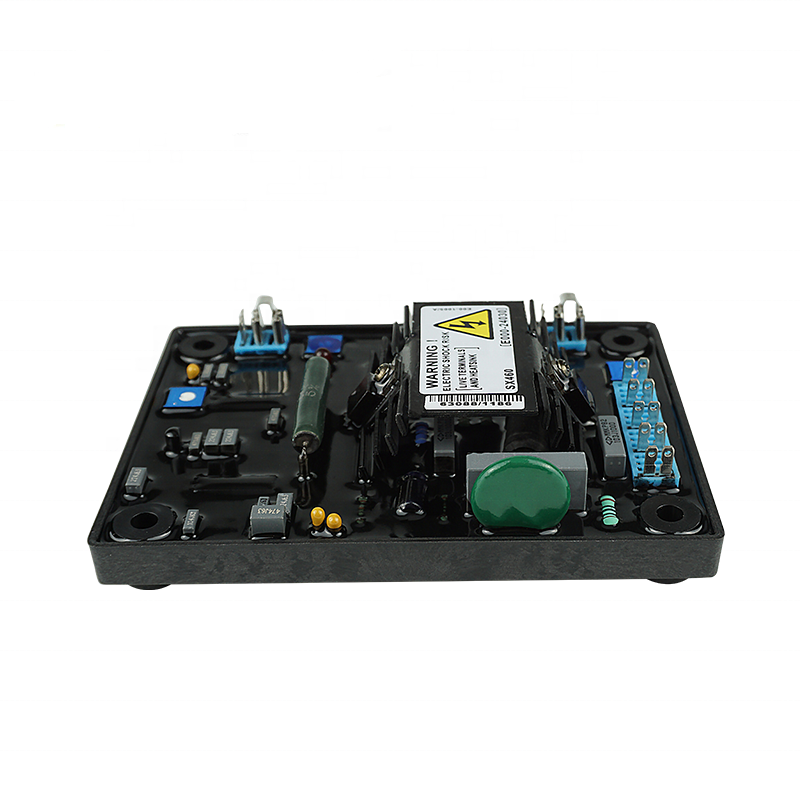

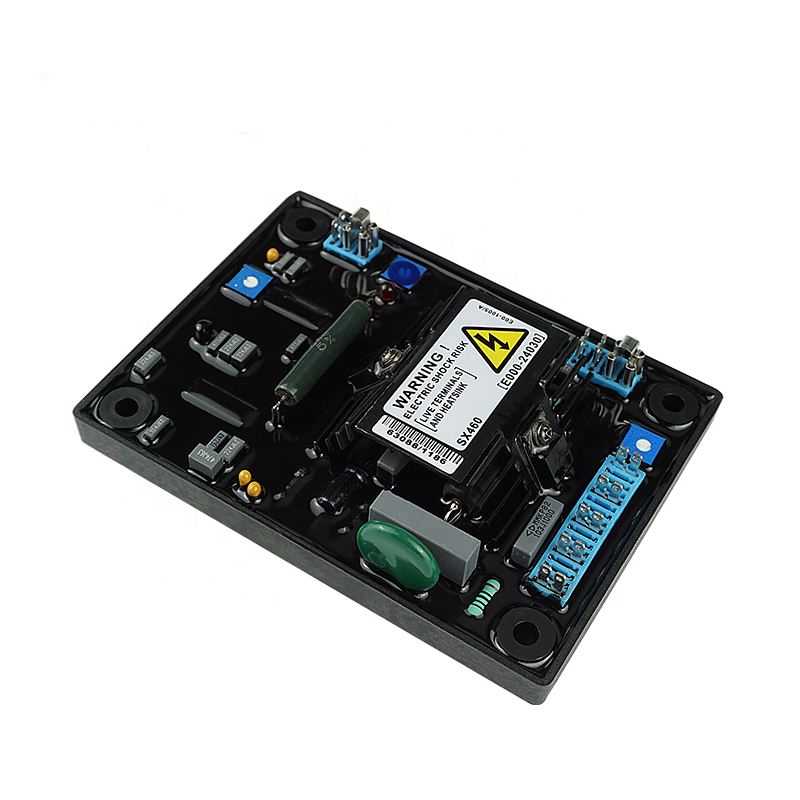

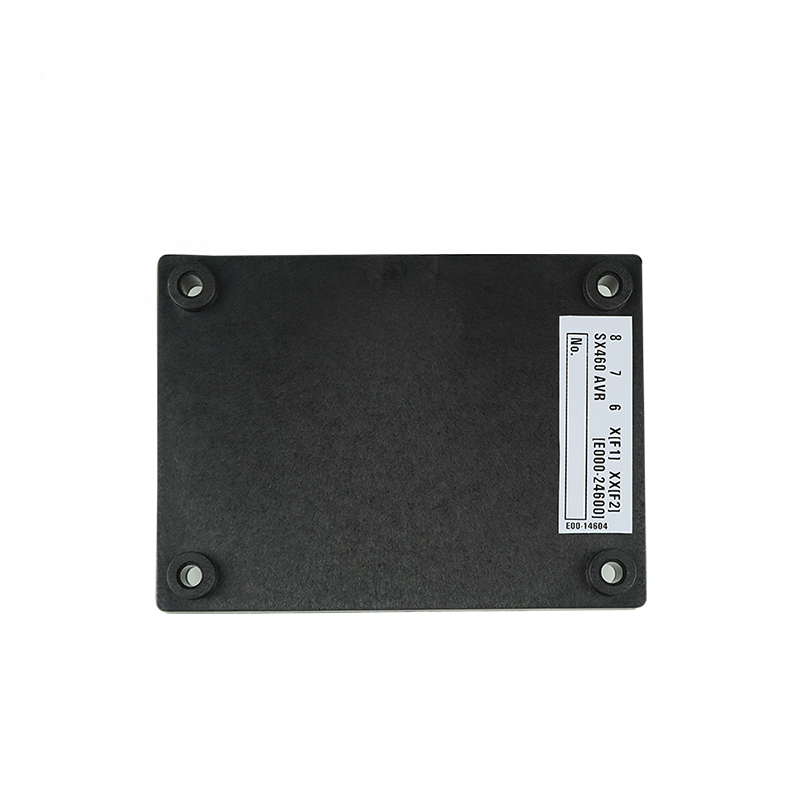

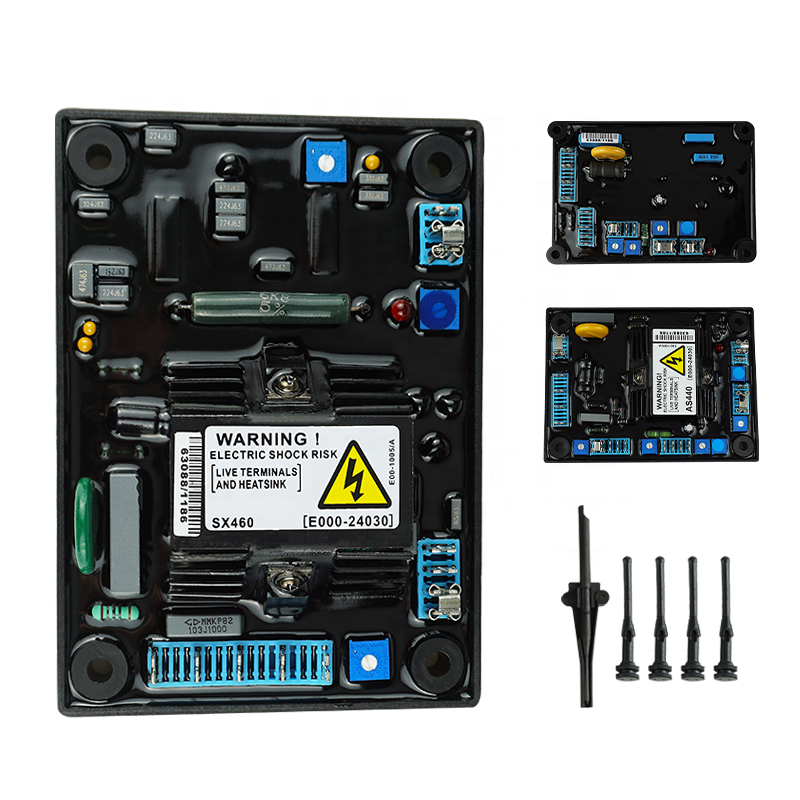

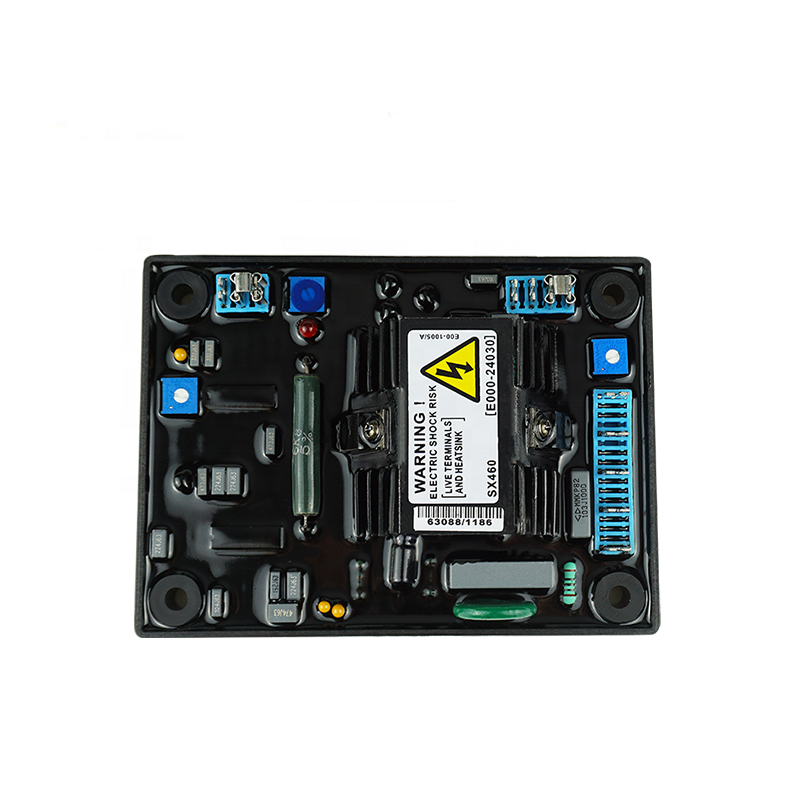

AVR SX460 Pictures:







More Genset Parts:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
