Universal Generator Automatic Voltage Regulator MX450

Product Name: AVR MX450
Model Number: MX450
Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single gross weight:0.80 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

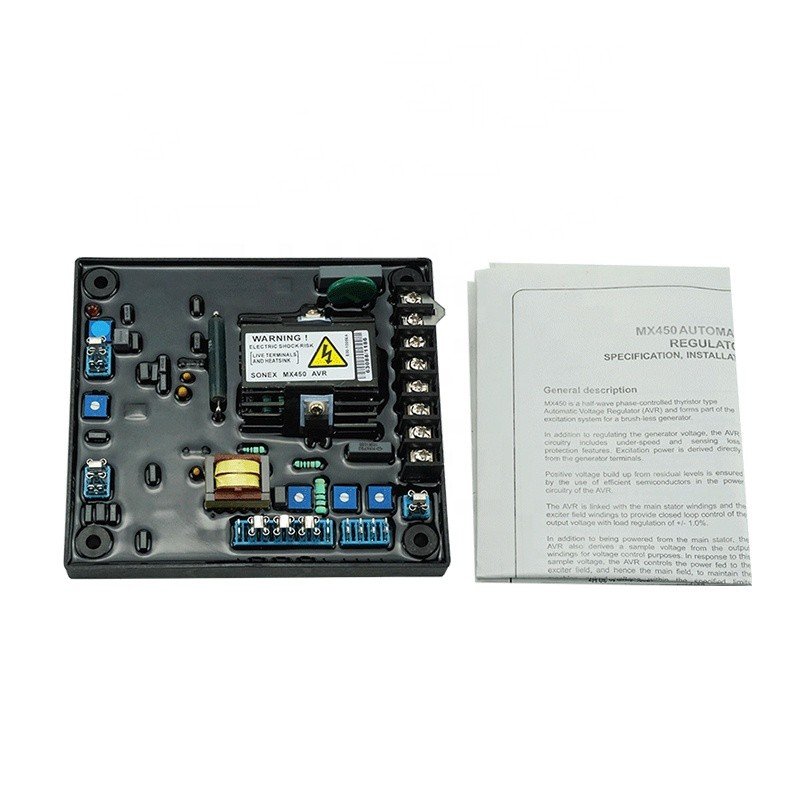

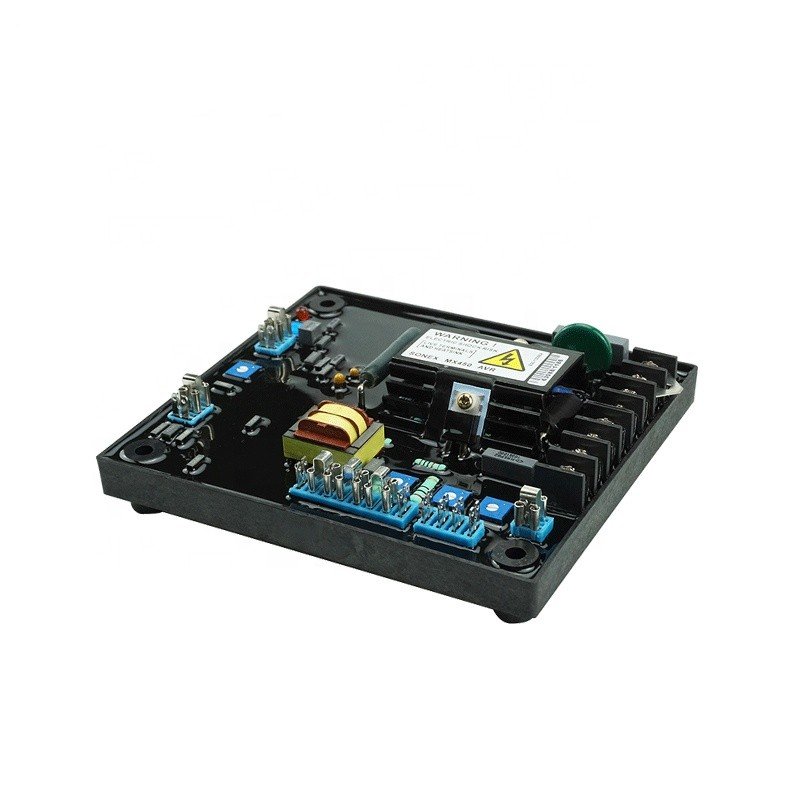

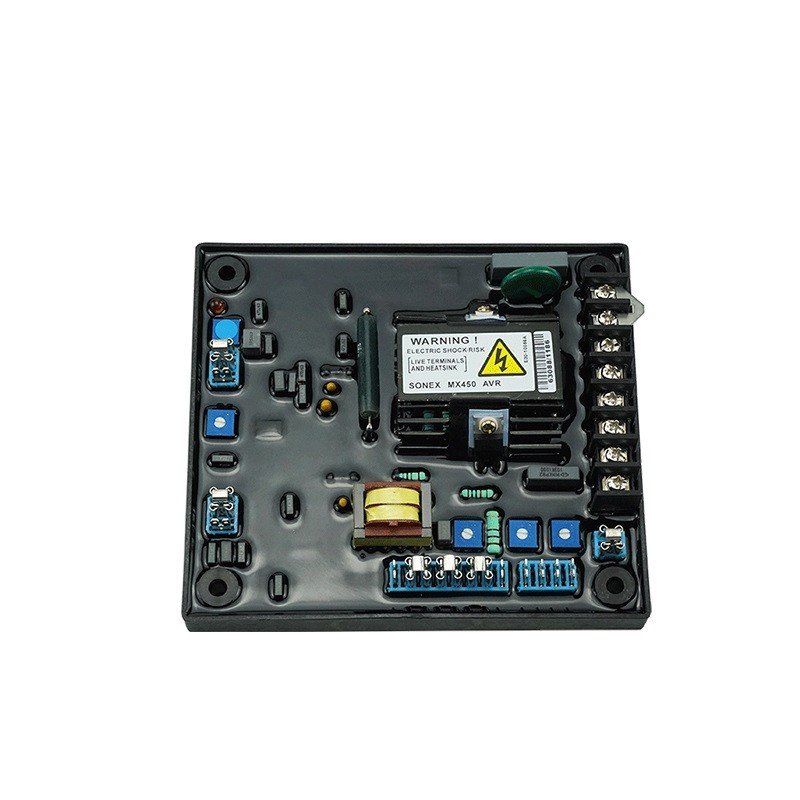

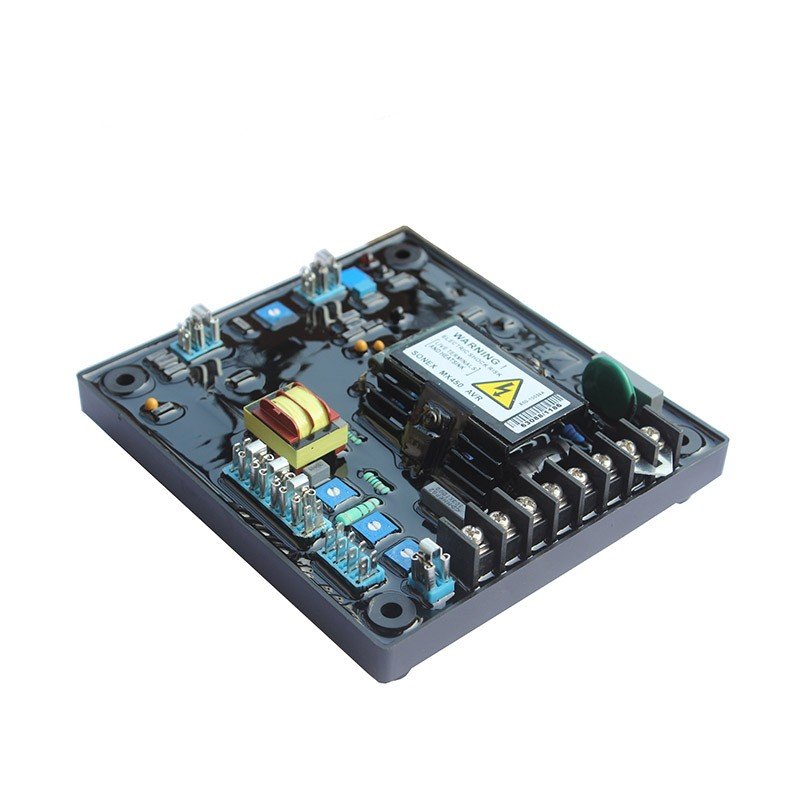

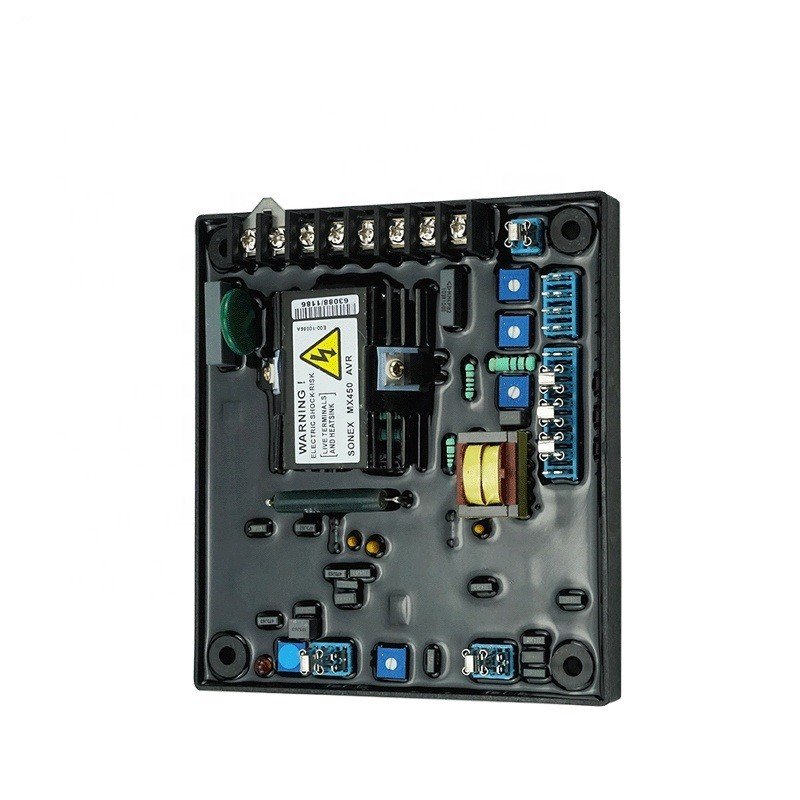

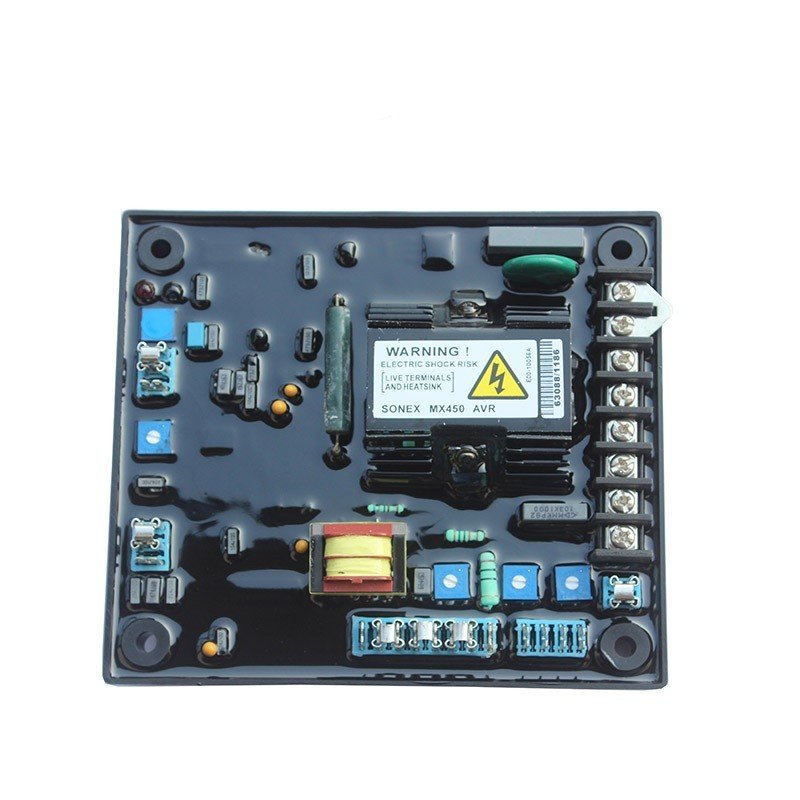

  Universal Generator Automatic Voltage Regulator MX450


Automatic Voltage Regulator AVR MX450 Specifications:

Universal Generator Automatic Voltage Regulator MX450 For Big Current  is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Automatic Voltage Regulator AVR MX450 Features:

Product Name

MX450

SENSING/POWER INPUT


Voltage

190-264VAC, 1 phase 2 wire

MAGNETIC FIELD OUTPUT


Voltage

max 90VDC at 207VAC input

Current

continuous 4A, intermittent 6A

PRESSURE REGULATING ACCURACY

<+/-1%RMS with 4% engine governing

How to choose Stanford Generator AVR

Generator/AVR

SA465

SA465

SX460

SX440

SX421

MS341

MX321

BC16



STD





BC182



STD





BC184

AUX WDG

OPT

STD


LOOSE



UC224



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

UC274



STD

OPT

OPT

OPT(PMG)

OPT(PMG)

HC4




STD

OPT

OPT(PMG)

OPT(PMG)

HC5




STD

OPT

OPT(PMG)

OPT(PMG)

HC6







STD

HC/MV7







STD

Automatic Voltage Regulator AVR MX341 Pictures:

More Genset Parts:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
