Smartgen ATS Controller HAT560NB

Product Name: Smartgen ATS Controller HAT560NB
Model Number: HAT560NB
Power Supply: DC(8~35)V
Material: Copper, Iron, DMC
AC System: 1P2W/2P3W/3P4W
Frequency: 50 Hz/60Hz
Certificate: CE,RoHS,ISO9001
Function: automatic transfer switch
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Supply Ability: 5000 Piece/Pieces per Month
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Smartgen ATS Controller HAT560NB

Smartgen ATS Controller HAT560NB Specifications:

HAT560NB

HAT560NB dual power automatic switching controller is an intelligent dual power switching module with programmable function, automatic measurement, LCD display and digital communication. It integrates digitalization, intelligence and networking, realizes automation of measurement and control process, and reduces human operation errors. It is an ideal product for dual power switching.

HAT560NB dual power automatic switching controller is composed of microprocessor, which can accurately detect two-way three-phase / single-phase voltage, make accurate judgment on the voltage abnormality (over-voltage, under voltage, phase loss, over frequency, under frequency) and output the passive control switching value. The device fully considers the application in a variety of ATS (automatic load conversion system), which can be directly used in ATS consisting of special ATS switch, contactor, air switch, etc. It has the advantages of compact structure, advanced circuit, simple connection and high reliability. It can be widely used in electric equipment, automatic control and debugging system of electric power, post and telecommunications, petroleum, coal, metallurgy, railway, municipal administration, intelligent building and other industries and departments.

Smartgen ATS Controller HAT560NB Features:

Advantage:

* LCD size is 132x64, with backlight, two languages (Simplified Chinese, English) display, touch button operation * It is equipped with automatic / manual state switching. Under the manual mode, the switch can be forced to close or open

* With switch reclosing and power-off reclosing function * With the function of historical record, it can cycle 50 records

* Modular structure design, flame retardant ABS shell, pluggable terminal block, embedded installation mode, compact structure, convenient installation

	DC POWER SUPPLY	AC POWER SUPPLY	AC CURRENT POWER
HAT560NC	√	×	×
HAT560NBC	√	√(LN220V)	×

Function Item	Parameter
Display	LCD(132*64)
Language	Chinese&English
AC System	1P2W/2P3W/3P4W
Alternator Voltage	(170-270)V(ph-N)
Alternator Frequency	50/60HZ
Monitor Interface	LINK/RS485
Programmable Interface	LINK/RS485
Applicable Switch Type	PC Two-stage，PC Three-stage，CB and CC switch
DC Supply	DC(8-35)V
Case Dimensions(mm)	13912048
Panel Cutout(mm)	130*111
Operating Temp.	(-25~+70)℃

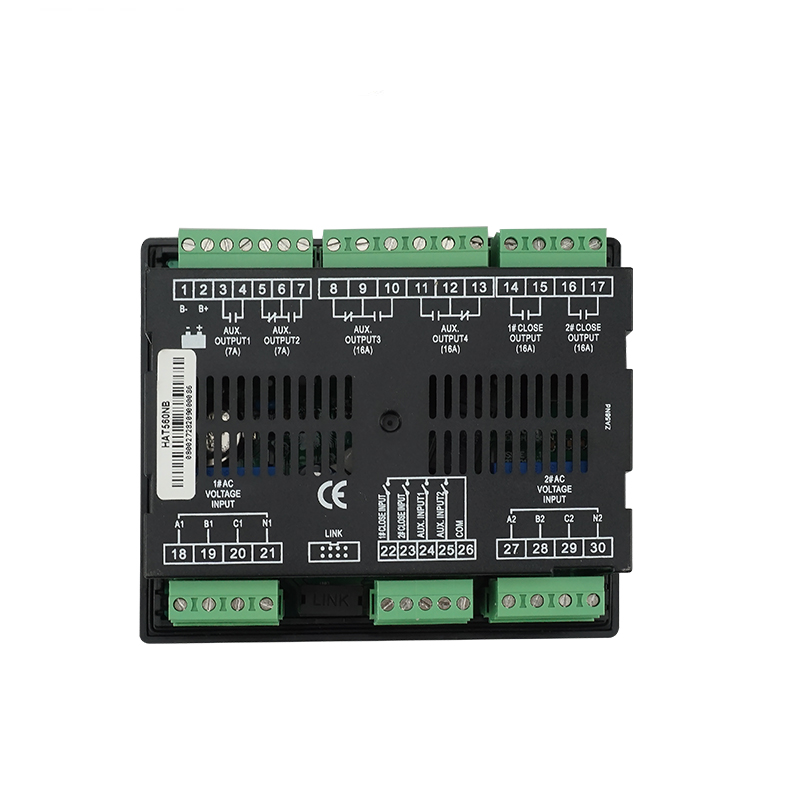

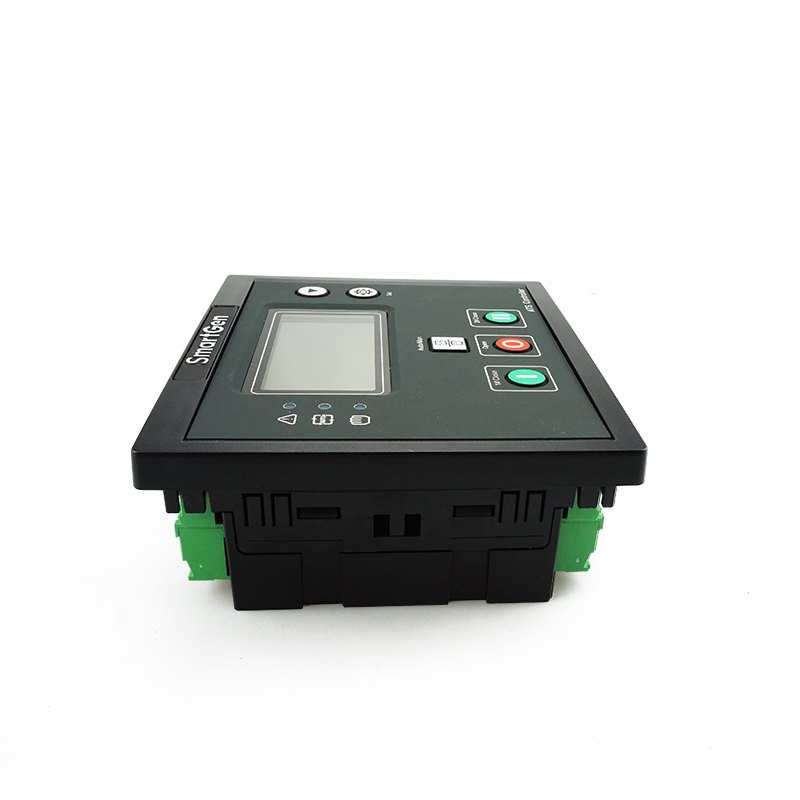

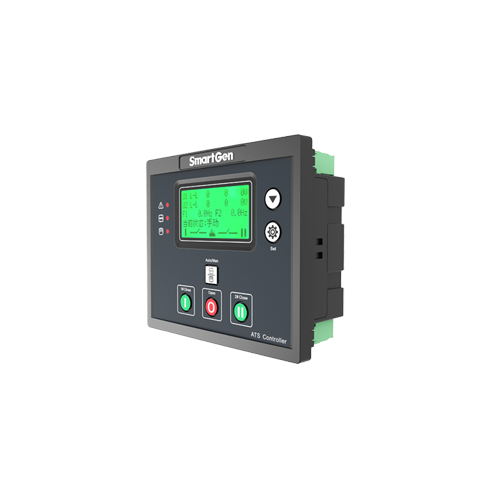

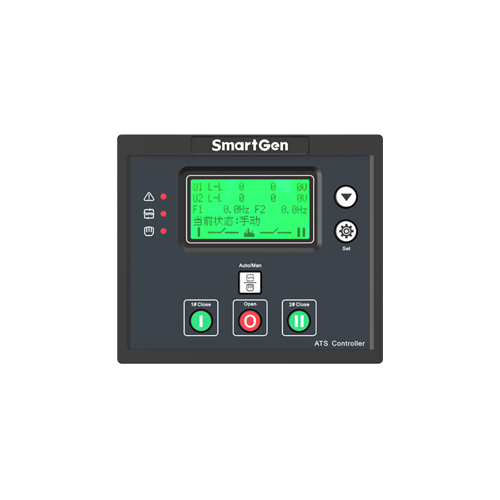

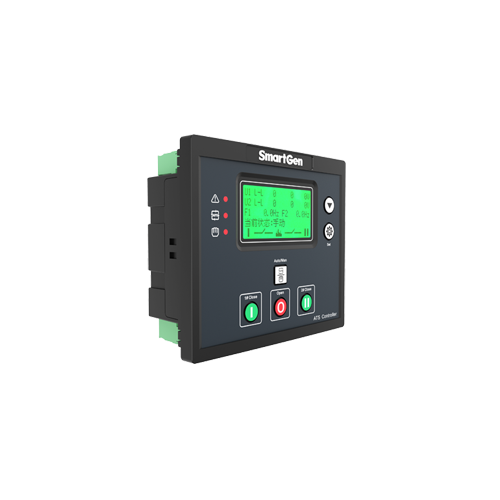

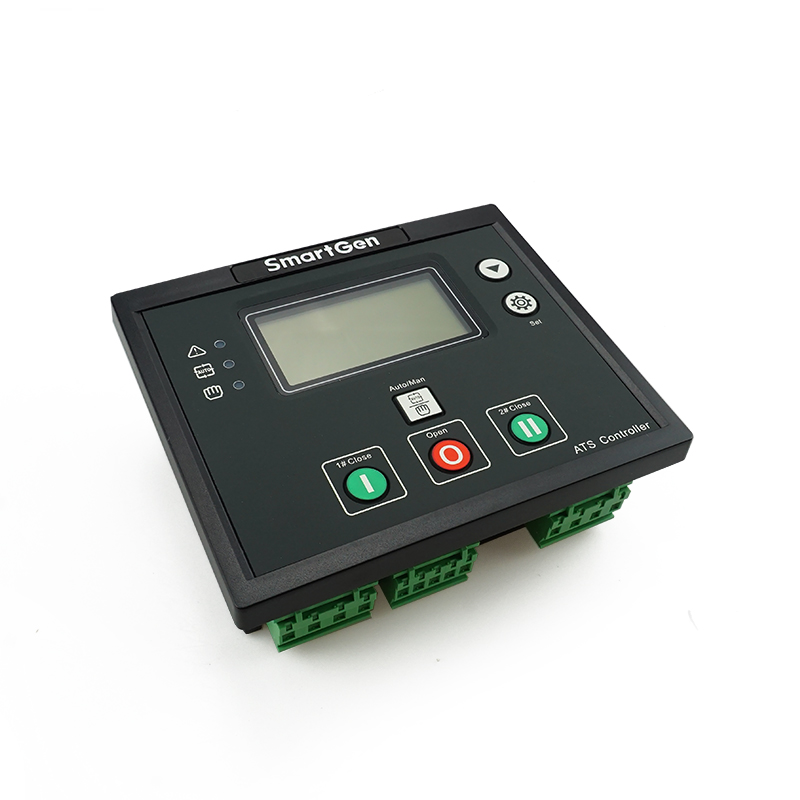

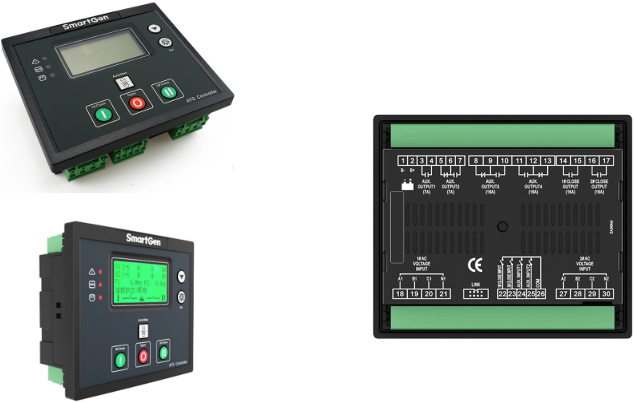

Smartgen ATS Controller HAT560NB Pictures:
