Smartgen ATS Control Module HAT553 Dual Power ATS Controller

Smartgen ATS Control Module HAT553 Dual Power ATS Controller

Product Name: Smartgen HAT553 Dual Power ATS Controller
Model Number: HAT553
Power Supply: DC(8~35)V
Material: Copper, Iron, DMC
AC System: 1P2W/2P3W/3P3W/3P4W
Frequency: 50 Hz/60Hz
Certificate: CE,RoHS,ISO9001
Function: automatic transfer switch
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Supply Ability: 5000 Piece/Pieces per Month
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Smartgen ATS Control Module HAT553 Dual Power ATS Controller

Smartgen ATS Control Module HAT553 Specifications:

HAT553

HAT552/HAT553 dual power ATS controller is a dual power transfer module integrated with configurable function, automatic measurement, LCD display, and digital communication. It combines digitalization, intelligence and networking together, which realizes automation for measuring and control process, reducing artificial operation mistakes. It is the ideal product for dual power transfer. HAT552 is applicable for non-breaking switches, while HAT553 is applicable for non-breaking, one-breaking, and two-breaking switches.

Display	LCD(132*64)
Language	Chinese & English
Programmable Input	4
Programmable Output	6
AC System	1P2W/2P3W/3P4W
Alternator Voltage	(170~277) V
Alternator Frequency	50/60Hz
Monitor Interface	RS485
Programmable Interface	RS485
Applicable Switch Type	Two-stage
Case Dimensions(mm)	13912050
Operating Temp.	(-25~+70)℃

Smartgen ATS Control Module HAT553 Features:

PERFORMANCE AND CHARACTERISTICS

System type can be set to: Mains - Generator, Generator - Mains, Mains - Mains;
132x64 LCD with backlight, optional Chinese and English display, push-button operation;
Measure and display 2-channel 3 phase voltage, frequency and phase sequence;
Display of A power/B power accumulated close times;
Display of present continuous power supply time and A power/B power accumulated power supply time;
Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection function;
Auto/Manual mode transfer function: in manual mode, user can control the switch to close or open;
All parameters are configurable. password verification is used to prevent non-professional error operations;
Commissioning can be done on site manually to execute genset start/stop operations;
Switch Re-closing function is fitted;
Breaker close output can be set to pulse or steady output;
2-channel N wire isolated design;
Real-time clock (RTC) display, and event log function, which can record 50 data cyclically.
Scheduled start & stop generator function: running once monthly/weekly, and onload/offload running are configurable;
AC supply power can be phase voltage (L, N), supply range: (177-277)V;
1 RS485 isolated communication port, has "remote control, remote measuring, remote communication, remote adjusting" function with ModBus-RTU communication protocol; genset start, genset stop, ATS close/open can be controlled remotely;
Suitable for various AC system types (3 phase 4-wire, single-phase 2-wire, and 2-phase 3-wire);
Modular design, self extinguishing ABS plastic shell, pluggable terminal, built-in mounting, compact structure with easy installation.

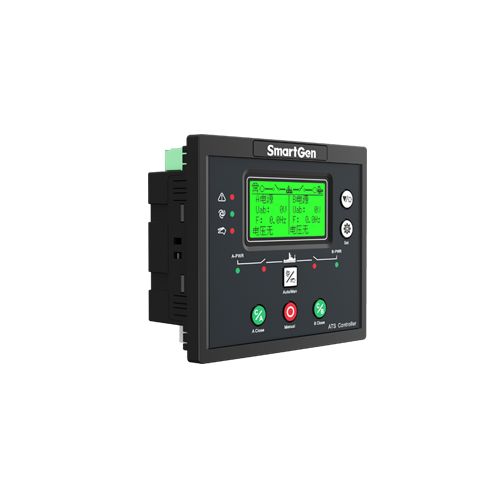

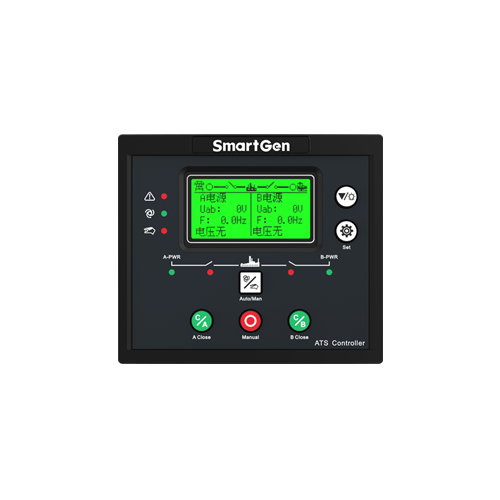

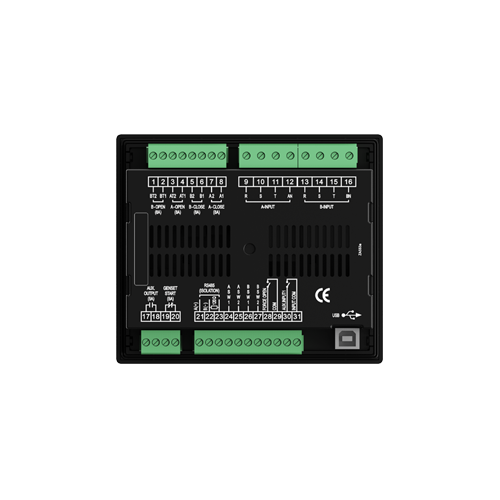

Smartgen ATS Control Module HAT553 Pictures:
