Product Name: Smartgen Intelligent ATS Controller HAT600NI
Model Number: HAT600NI
Power Supply: DC(8~35)V
Material: Copper, Iron, DMC
Frequency: 50 Hz/60Hz
Certificate: CE,RoHS,ISO9001
Function: ats controller automatic transfer switch
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Supply Ability: 5000 Piece/Pieces per Month
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Smartgen Intelligent ATS Controller HAT600NI Automatic Transfer Switch

Smartgen Intelligent ATS Controller HAT600NI Specifications:

HAT600N series ATS controller is intelligent dual-supply module with programmable function, automatic measurement, LCD display, and digital communication. It combines digital intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency). This controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc. It have compact structure, advanced circuits,
simple wiring and high reliability, be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.

Smartgen Intelligent ATS Controller HAT600NI Features:

Function Item	Parameter
Display	LCD(128*64)
Language	Chinese/English
AC System	1P2W/2P3W/3P3W/3P4W
Alternator Voltage	(50-625)V(ph-N)
DC Supply	DC(8-35)V
Alternator Frequency	50/60HZ
Monitor Interface	RS485
Programmable Interface	LINK/RS485
Applicable Switch Type	All types
Case Dimensions(mm)	20915355
Panel Cutout(mm)	186*141
Operating Temp.	(-25-+70)℃

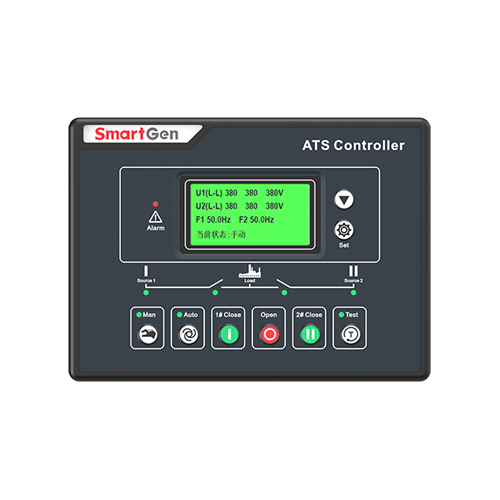

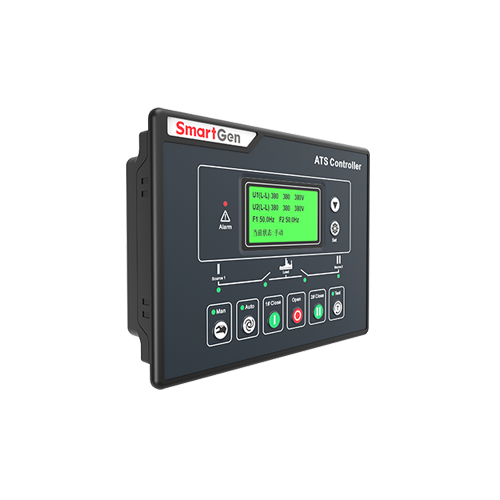

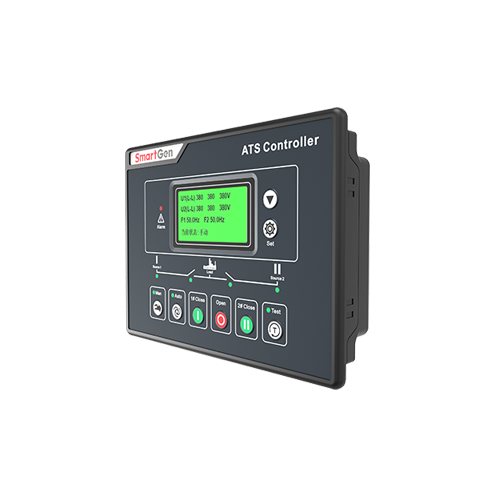

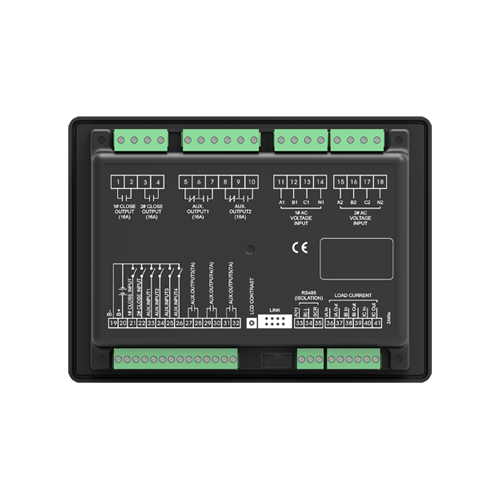

Smartgen Intelligent ATS Controller HAT600NI Pictures:

Other more AVR stock in our warehouse.

AVR: SX460,SX440,SX450, MX321,MX341, AS480, AS440

AVR: R220,R230,R438,R448,R449,R250,R450, R450M, R120, R731

AVR: SE350, EA350, PX350

AVR: GAVR-8A, GAVR-8AH, GAVR-10A, GAVR-12A, GAVR-15A, GAVR-15C, GAVR-20A, GAVR-25A

AVR: VR6,AVC63-7,AVC63

AVR: UVR6;SR7

AVR: M40FA640A, M16FA655

AVR: EA04C, EA05A, EA16A

AVR: WT-2, WT-3

More Genset Parts:

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that each product is used by customers assured.

Oil Pressure Sensor.png

Genset Controller.png

Our Packing:

Payment and Shipping:

We supply various shipping and payment methods for our customers.

1. For the sampling order, we can accept PayPal, West Union, MoneyGram as the payment, and will ship the samples by air express including DHL, UPS, TNT, Fedex, ARAMEX.

2. For the bulk order, we can accept the T/T bank transfer, L/C as the payment method with the 30% deposit, we will ship out the goods according to the choice from the customers for shipping.

3. We can ensure the shipping of us are fast and efficient, and the payment is safe.
