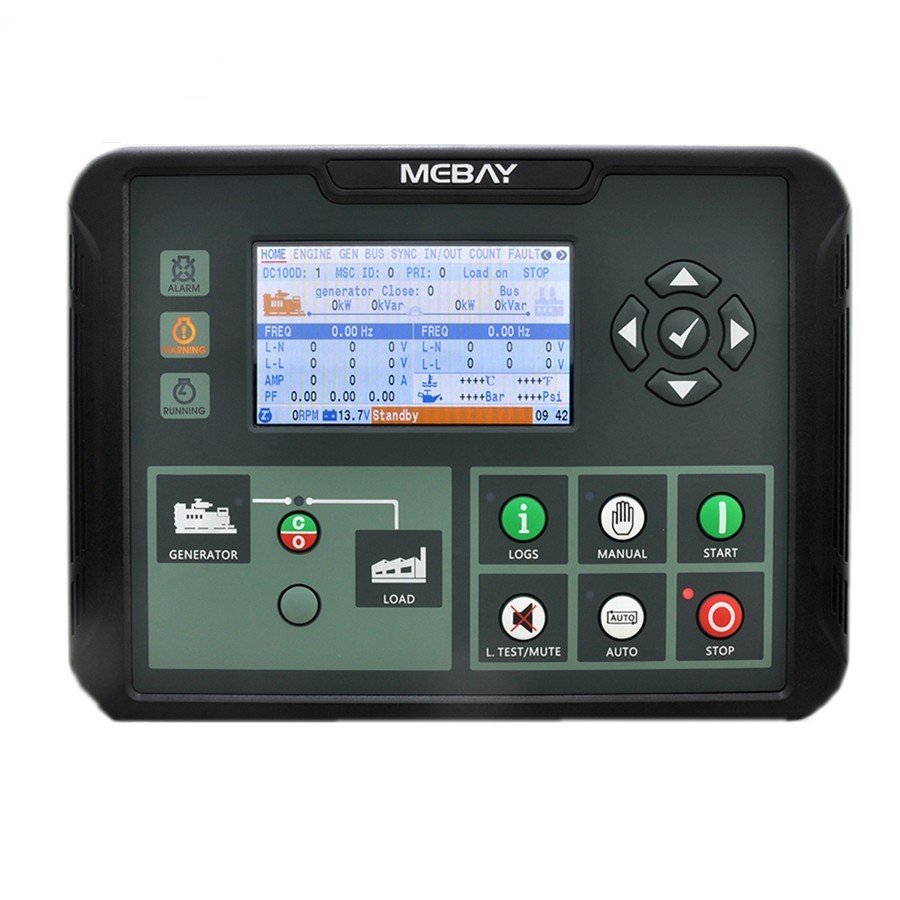

Mebay Genset Parallel Controller DC100D With Remote Communication Function

Mebay Genset Parallel Controller DC100D With Remote Communication Function

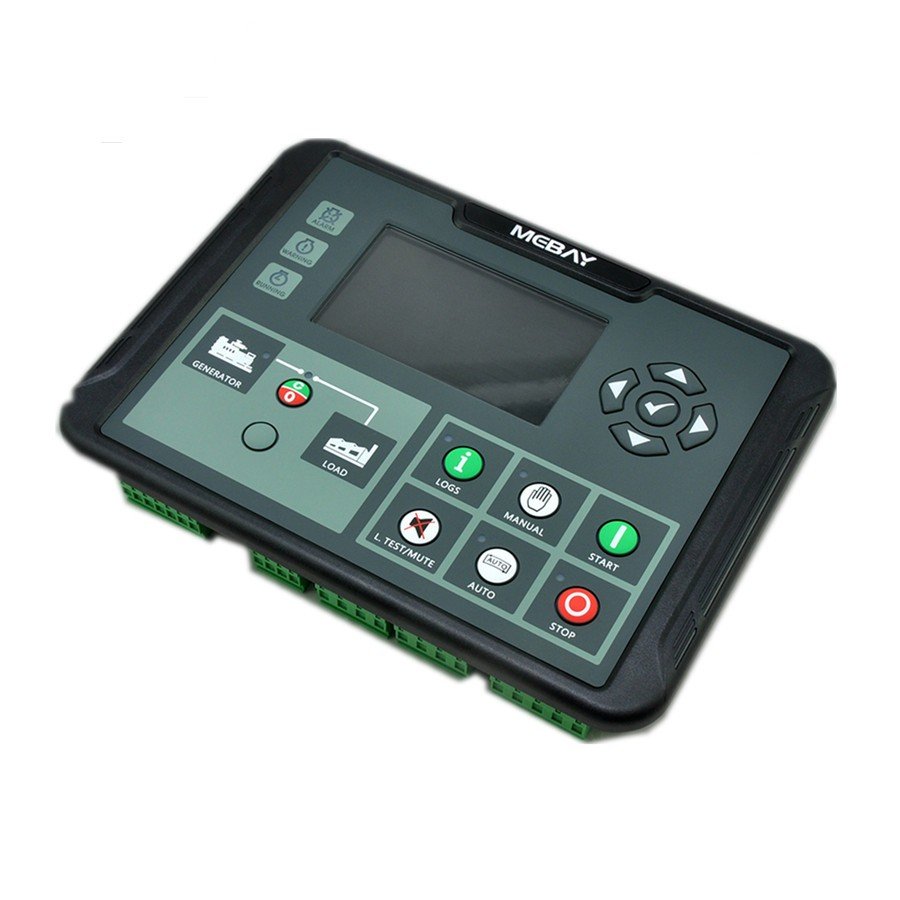

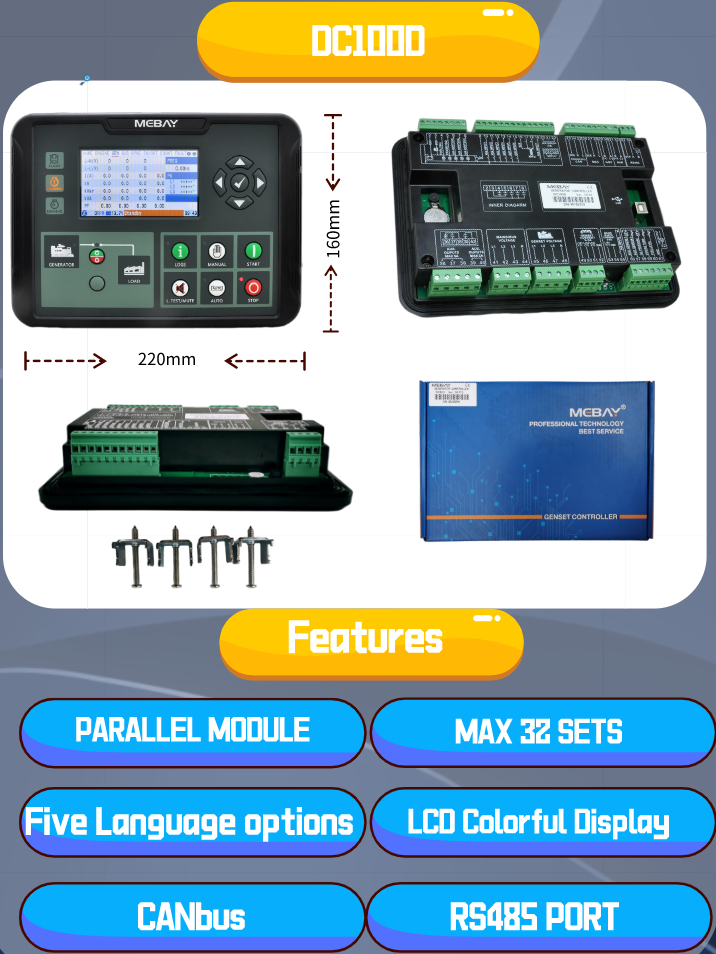

Mebay Genset Parallel Controller DC100D Specifications:

DC100D Parallel Controller

Generator Controller DC100D

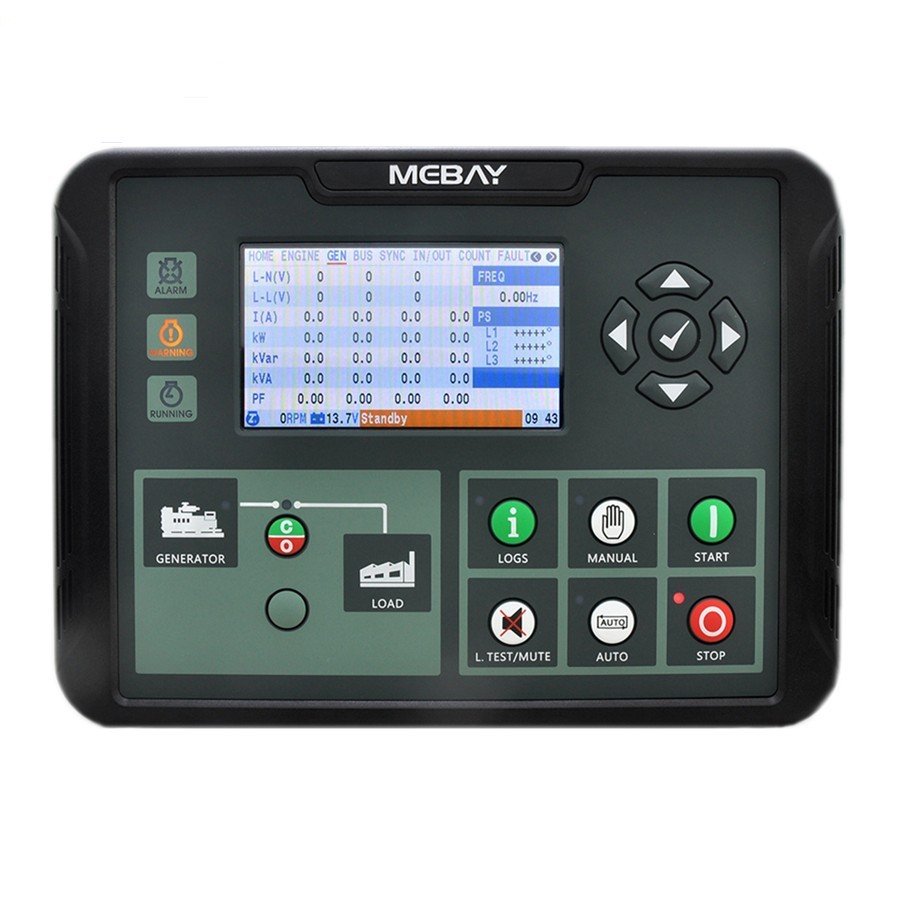

This series controller is designed for manual/auto parallel system generators with similar or different capacity. Additionally,It is suitable for independent constant power output and multiple generators in parallel. It allows automatic start/stop, parallel running, data measurement, alarm protection as well as remote control, remote measurement and remote communication function. 4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the gen set will be stopped once it can’t work smoothly. The gen set parallel controller utilizing the GOV (Engine Speed Governor) and AVR (Automatic Voltage Regulator) control function, the controller is able to synchronize and share load automatically; it can be used to parallel with other DC100D controller. DC100D controller accurately monitors various working states of the generator set. When the generator set works abnormally, it automatically opens the bus bar and disconnects the bus, shuts down the generator set, and displays the fault status on the LCD.  SAE J1939 interface enables the controller to communicate with various ECU (ENGINE CONTROL UNIT) which fitted with J1939 interface. There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gen sets.

Wiring Diagram:

Deep Sea Auto Mains Failure Control Module DSE4620 Features:

1. Dual core 32bit high performance single chip microcomputer.

2. 4.3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary.

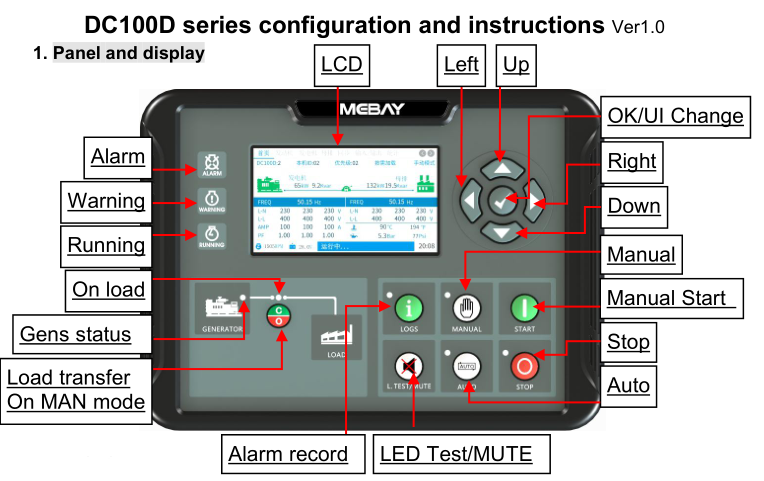

3. Indicator and number display through UI surface.

4. Acrylic material is adapted to protect the screen.

5. Silicone panels;

6. USB Port: parameters can be set even without power through USD port to monitor in real time.

7. With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.

8. Standard CAN communication port, built-in J1939 protocol, has matched more than 30 kinds of engines.

9. Various kinds of parameters display.

10. Input/output function, status can be shown directly.

11. More categories of surface setting.

12. Real time

clock inside: preset time operate and auto maintenance is available. Gen set working plan can be set as per week or month.

13.Three class protection countdown function, which can set the maintenance time or date.

14. The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault.

Deep Sea Auto Mains Failure Control Module DSE4620 Pictures:

Other more AVR stock in our warehouse.

AVR: SX460,SX440,SX450, MX321,MX341, AS480, AS440

AVR: R220,R230,R438,R448,R449,R250,R450, R450M, R120, R731

AVR: SE350, EA350, PX350

AVR: GAVR-8A, GAVR-8AH, GAVR-10A, GAVR-12A, GAVR-15A, GAVR-15C, GAVR-20A, GAVR-25A

AVR: VR6,AVC63-7,AVC63

AVR: UVR6;SR7

AVR: M40FA640A, M16FA655

AVR: EA04C, EA05A, EA16A

AVR: WT-2, WT-3

More Genset Parts:

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
