Kipor Generator Spare Parts AVR 5KW KI-DAVR-50S

Kipor Generator Spare Parts AVR 5KW KI-DAVR-50S

Product Name: Generator AVR KI-DAVR-50S
Model Number: KI-DAVR-50S
Usage: For Kipor Generator
Phase: Three Phase and Single Phase
Quality Class: A grade high quality
Warranty: 1 Year
Single package size: 20X20X10 cm
Single gross weight: 0.450 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Kipor Generator Spare Parts AVR 5KW KI-DAVR-50S

Kipor AVR KI-DAVR-50S Specifications:

Kipor Generator Spare Parts AVR 5kw

KI-DAVR-50S

Stability of output voltage±5%
<±1% RMS with 4% engine governing
With intelligent integrated circuit chip control,Automatic circuit protection function
Output current flow automatic stop, automatic stop outside the output voltage is more than 10% of the rated voltage output load is too large or too short will automatically stop

Technical sepcification
Sensing/Power input	Voltage	Jumper selectable 90-130V ac
	Frequency	50-60 Hz nominal
	Phase	1
	Voltage	Max 150V ac ,3 phase
Magnetic Field Output	Current	DC< 6A
Magnetic Field Output	Resistance	15 ohms minimun
Pressure Regulating Accuracy		<±1% RMS with 4% engine governing

Kipor AVR KI-DAVR-50S Features:

1 Phase 5KW Kipor Generator AVR KI DAVR 50S Automatic Voltage Regulator

We have more similar items:

DAVR-50S for 5KW Single phase
DAVR-50S3 for 5KW three phase
DAVR-95S for 8.5/9.5KW Single phase
DAVR-95S3 for 8.5/9.5KW three phase

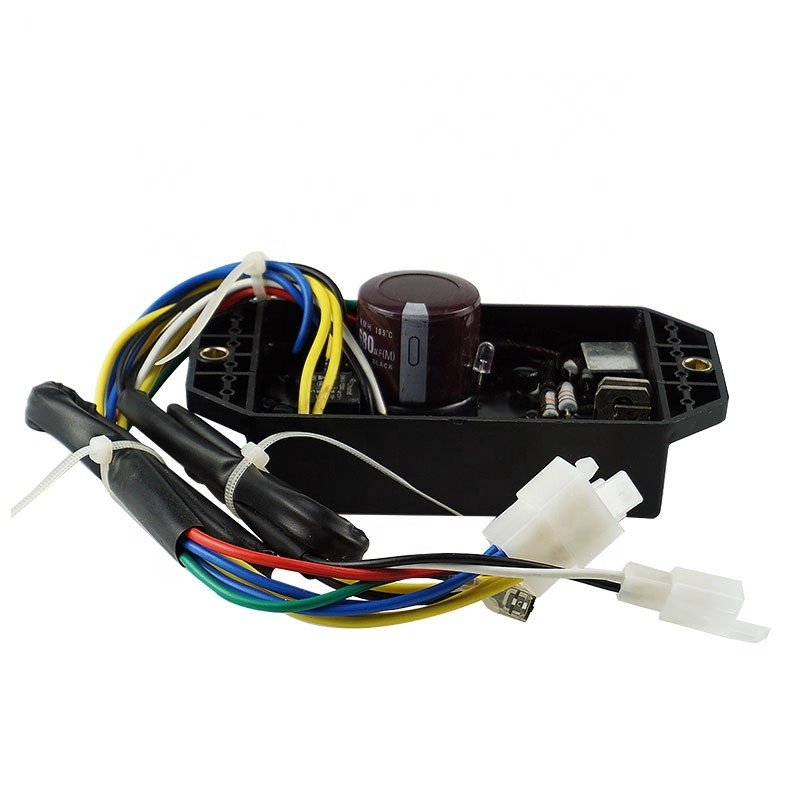

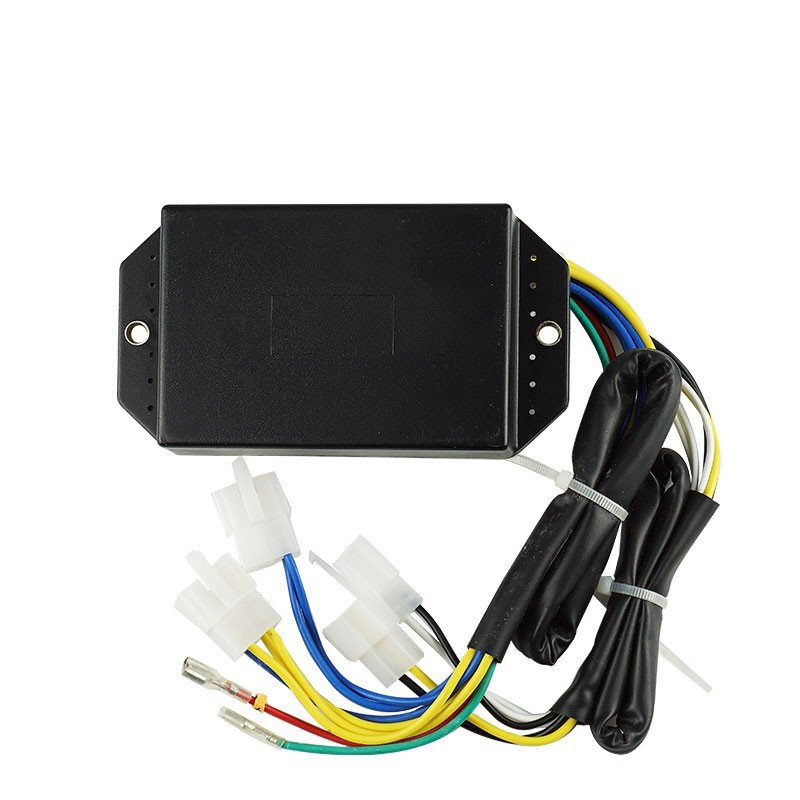

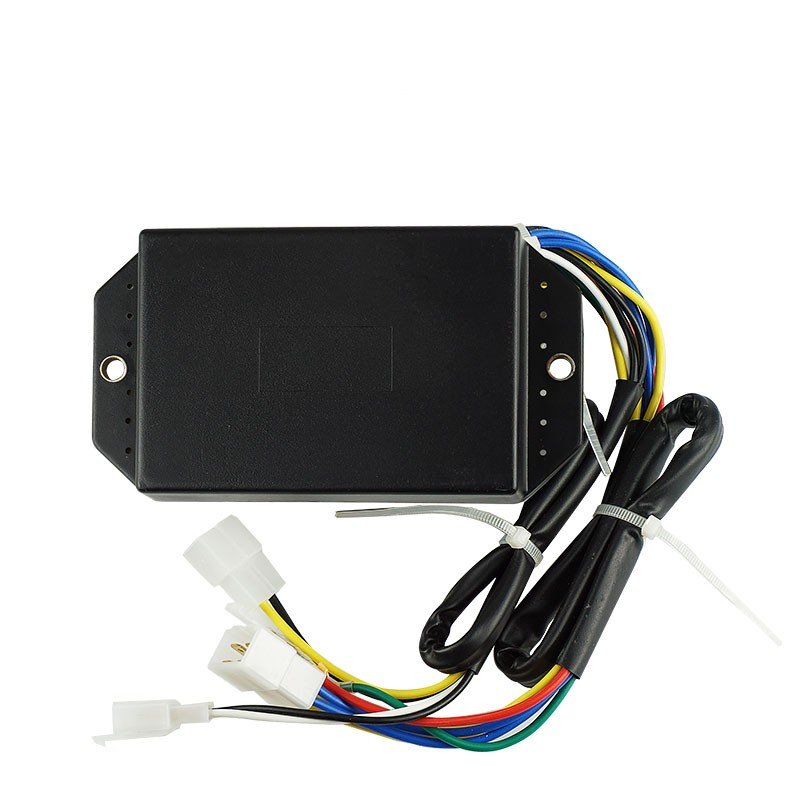

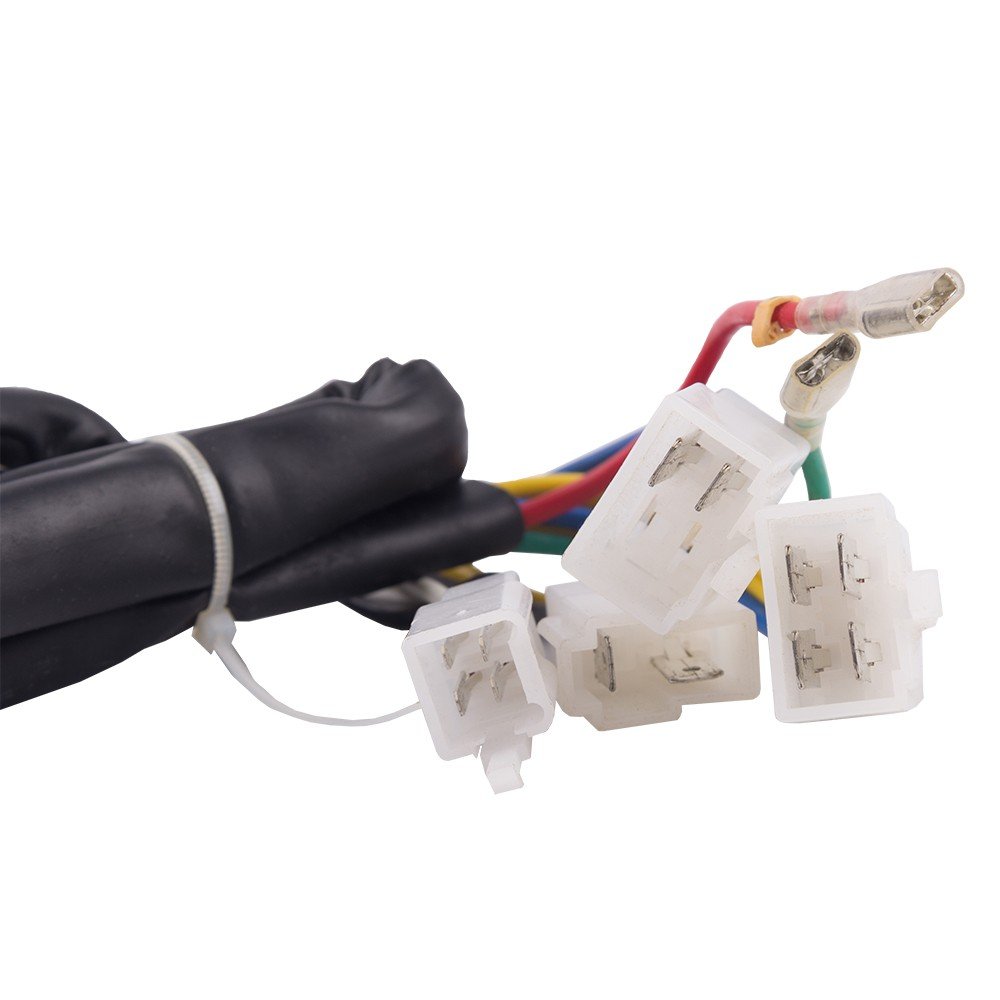

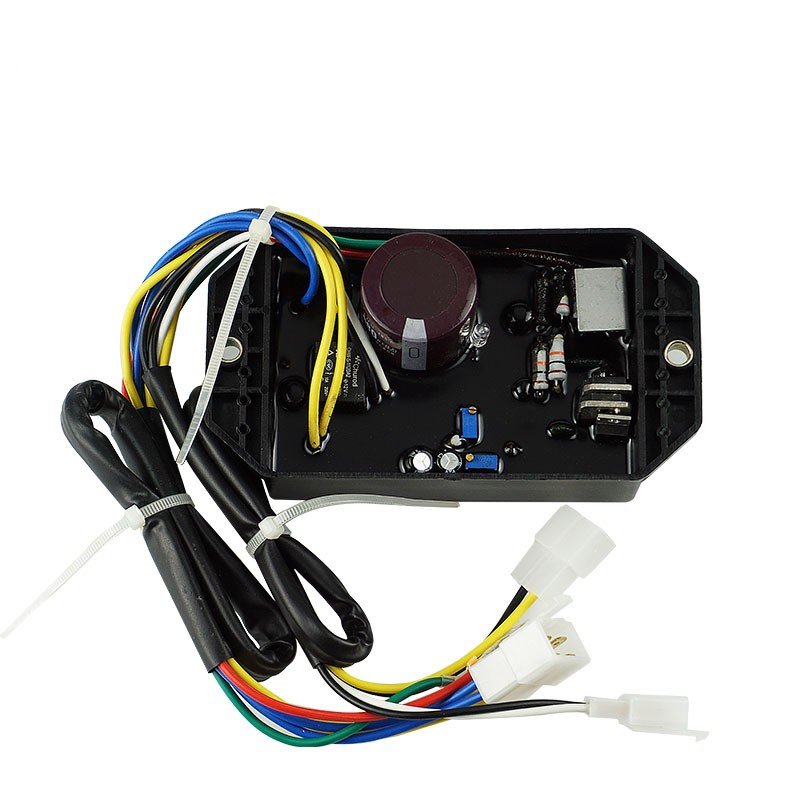

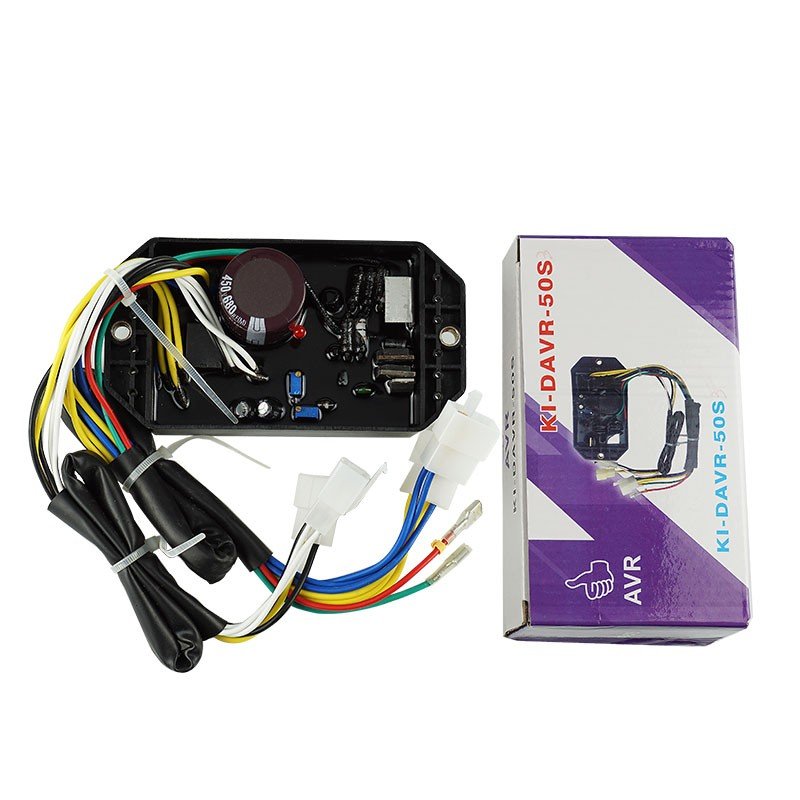

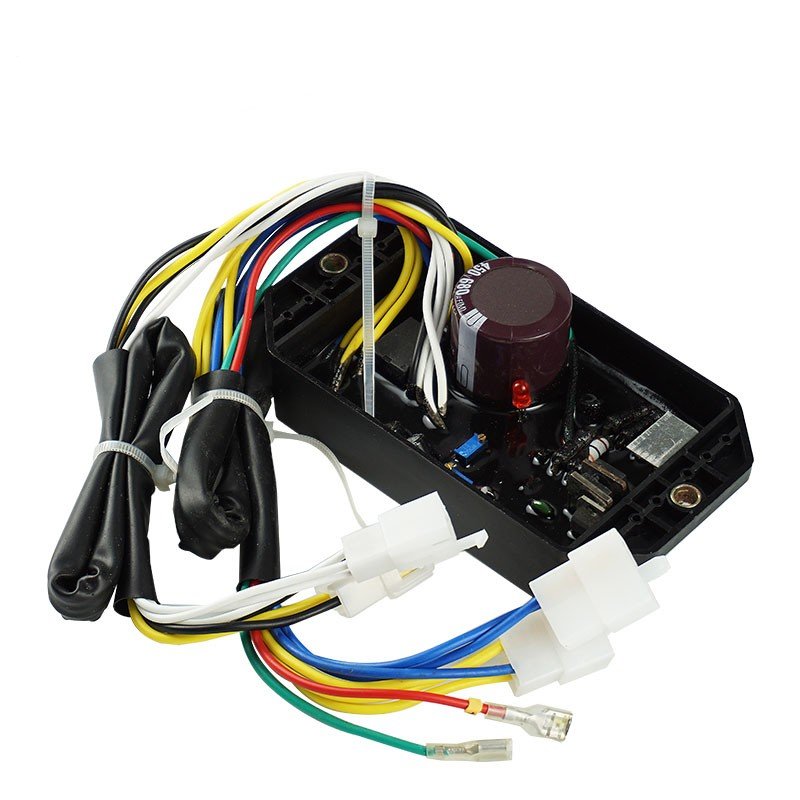

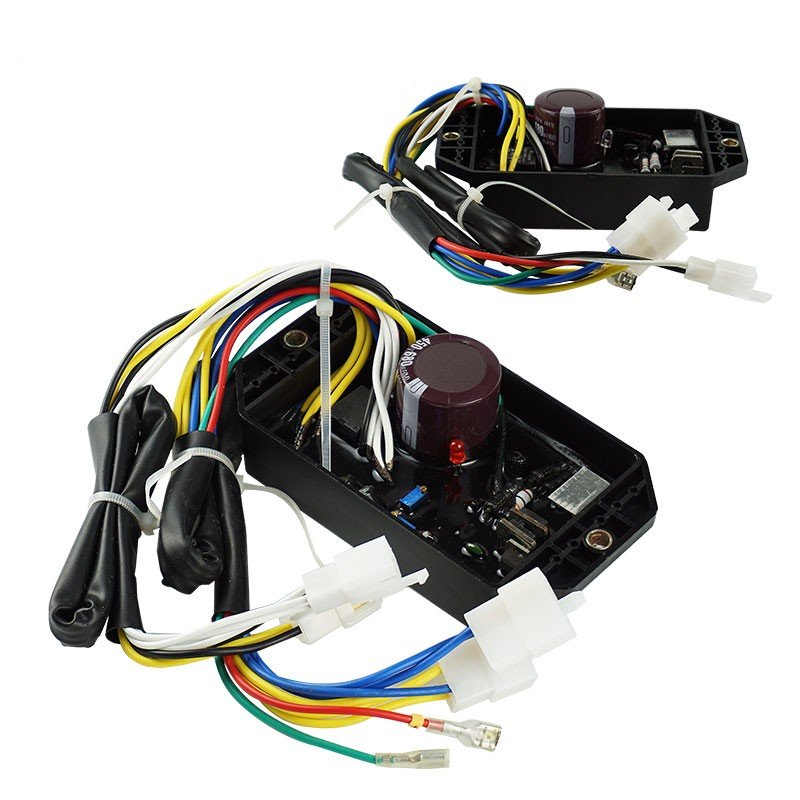

Kipor AVR KI-DAVR-50S Pictures:

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that each product is used by customers assured.

Our Packing:

Replace Engga Genset AVR Automatic Voltage Regulator WT-3

Payment and Shipping:

We supply various shipping and payment methods for our customers.

1. For the sampling order, we can accept PayPal, West Union, MoneyGram as the payment, and will ship the samples by air express including DHL, UPS, TNT, Fedex, ARAMEX.

2. For the bulk order, we can accept the T/T bank transfer, L/C as the payment method with the 30% deposit, we will ship out the goods according to the choice from the customers for shipping.

3. We can ensure the shipping of us are fast and efficient, and the payment is safe.
