Deep Sea Auto Mains Failure Control Module DSE4620 Specifications:

DSE4620

Auto Start Control Module

The DSE 4620 Generator Controller is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6" x 3.6")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

The Deep Sea 4620 Generator Controller and the Deep Sea DSE4620 Auto Mains Failure Control Module are suitable for a wide variety of single gen-set applications.
Whilst maintaining functions included within higher end controllers, such as generator or load power monitoring, the Deep Sea Generator Controller DSE4620 range of especially compact controllers provide the user with the ultimate size to feature ratio.

Monitoring engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level, the modules will give comprehensive engine and alternator protection. This will be indicated on the largest back-lit
LCD icon display in its class via an array of warning, electrical trip and shutdown alarms.

Alternator frequency & magnetic pick up speed sensing support for diesel, gas and petrol engines all in one variant. With a number of flexible inputs, outputs and protections, Deep Sea DSE4620 Generator Controller can be easily adapted to suit a wide range of applications including lighting towers with the added option for staged loading outputs.

Deep Sea Auto Mains Failure Control Module DSE4620 Features:

Main function

1.Configuratable inputs/outputs.
2.Generator overload protection(KW).
3.Fuel&crank outputs.
4.Magnetic pick-up speed sensing.
5.DSE Configuration Suite PC software.

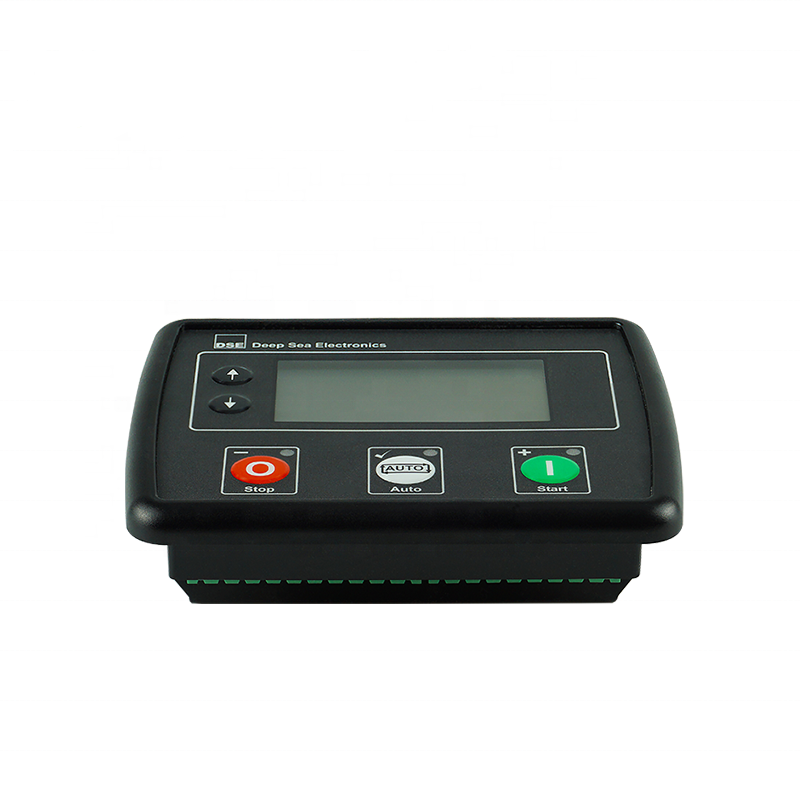

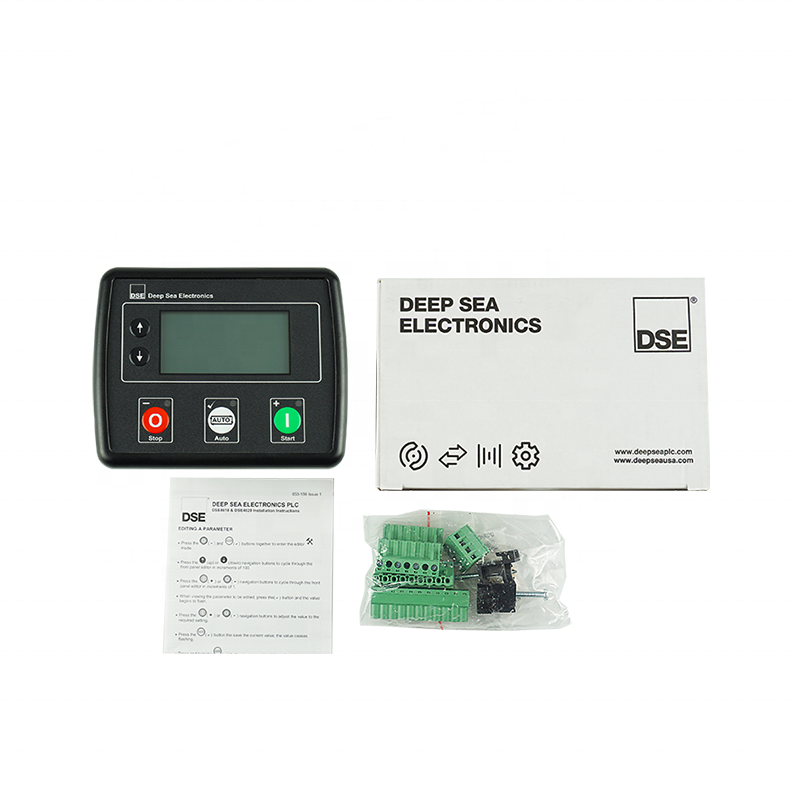

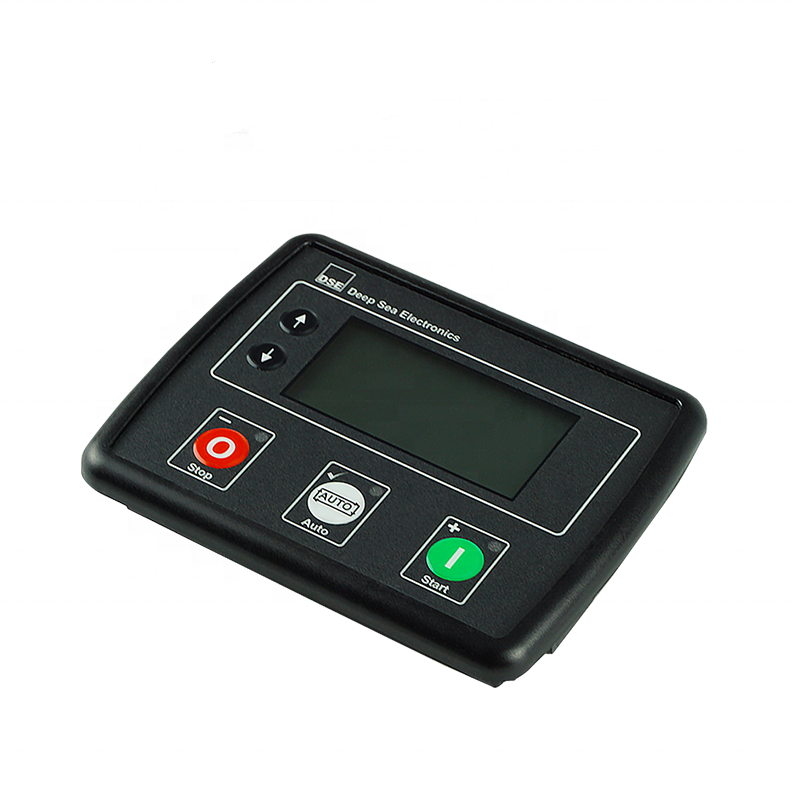

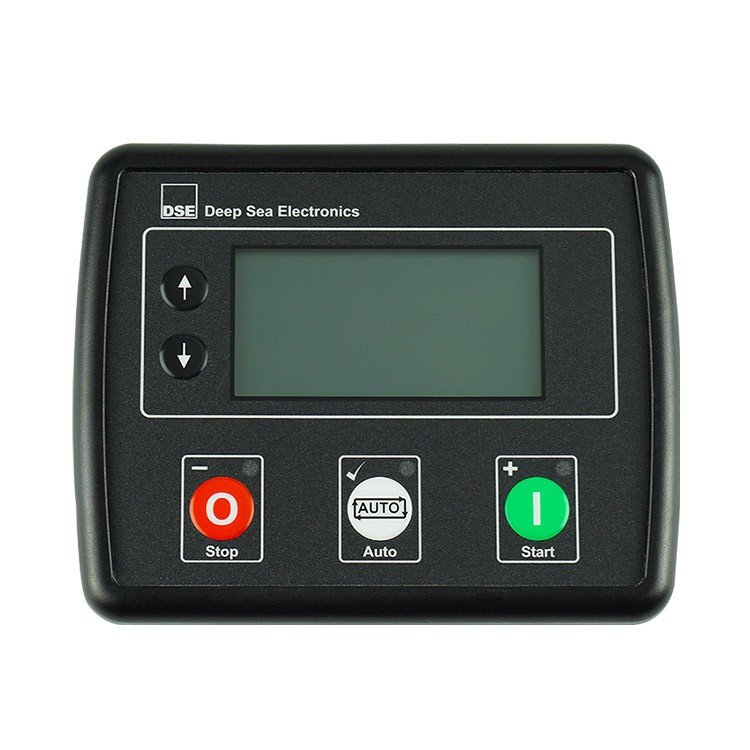

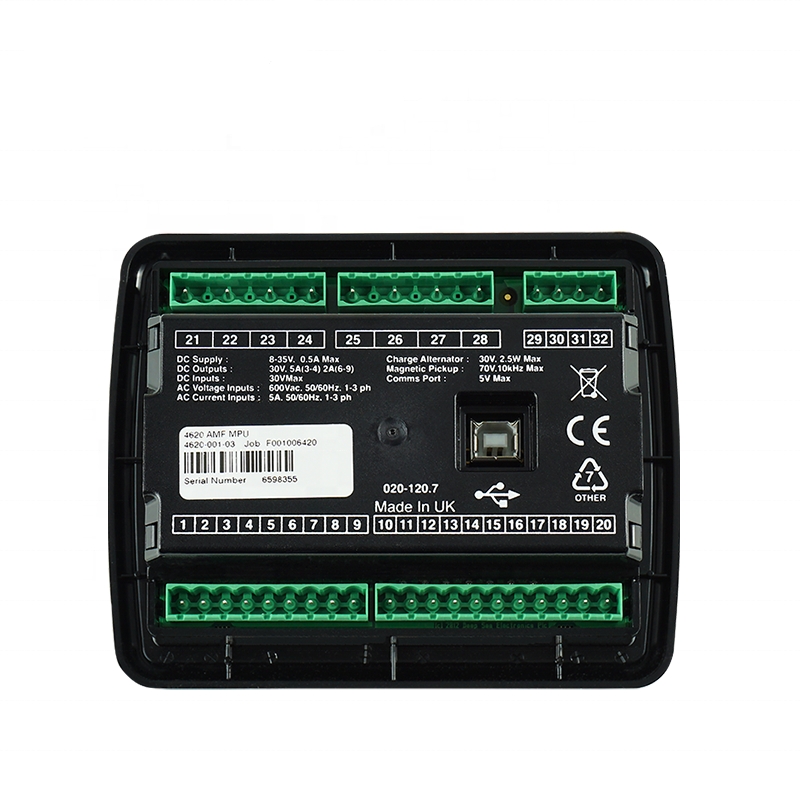

Deep Sea Auto Mains Failure Control Module DSE4620 Pictures:
