Water jacket heater FS-001-0.5 220V 500W for diesel engine

Water jacket heater FS-001-0.5 220V 500W for diesel engine

Product Name: Water Jacket Heater FS-001-0.5
Model Number: FS-001-0.5 500W
Voltage: 220-240V
Output: 500W 220V/240V
Insulating Resistance: >50mo
Thermostat set point: 45 degree
Inlet/outlet size: 16mm
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 1 kg
Certificate: CE,RoHS,ISO9001
Quality Class: A grade high quality
Warranty: 1 Year
Supply Ability: 5000 Piece/Pieces per Month
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

Water jacket heater FS-001-0.5 220V 500W for diesel engine Specifications:

The water jacket heater uses an external power supply to preheat and maintain the engine cooling water and lubricating oil to ensure that the diesel engine equipment works normally in a low temperature environment.

Water Jacket Heater FS-001-0.5 Features:

Engine Preheater Water Heater For Diesel Generator 500W, 1000W, 1500W, 2000W, 3000W, 4000W Genset Jacket Electric Heater

110V/220V/240V for option

MODEL	FS-001-0.5	FS-001-1	FS-001-1.5	FS-001-2
RATED POWER	500W	1000W	1500W	2000W
RATED VOLTAGE	AC240V
RATED CURRENT	2A	4.2A	6.3A	8.3A
ENGINE DISPLACEMENT	0-2.5L	2.5-5.7L	5.7-8.2L	8.2-13L
THERMOSTAT SET POINT	45 Degree
TEMPERATURE SWITCH	Off/45C, On/25C ,Customized
INSULATING RESISTANCE	>=50MO
ELECTRICAL STRENGTH	AC 1.5KV 1MIN
INLET/OUTLET SIZE	16mm
MAX.WATER PRESSURE	0.5Mpa
PROTECTION CLASS	IP54

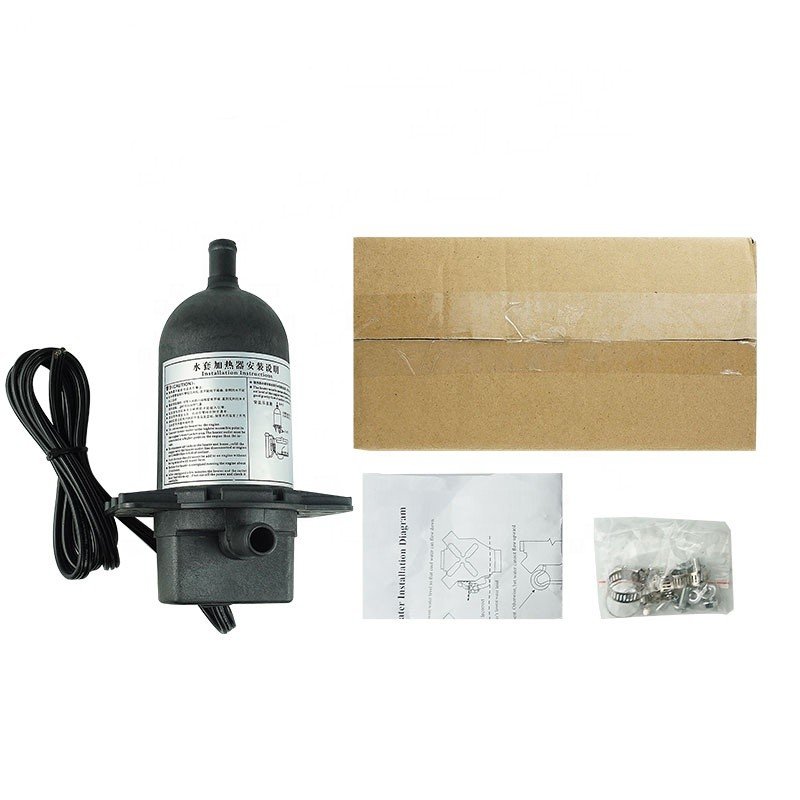

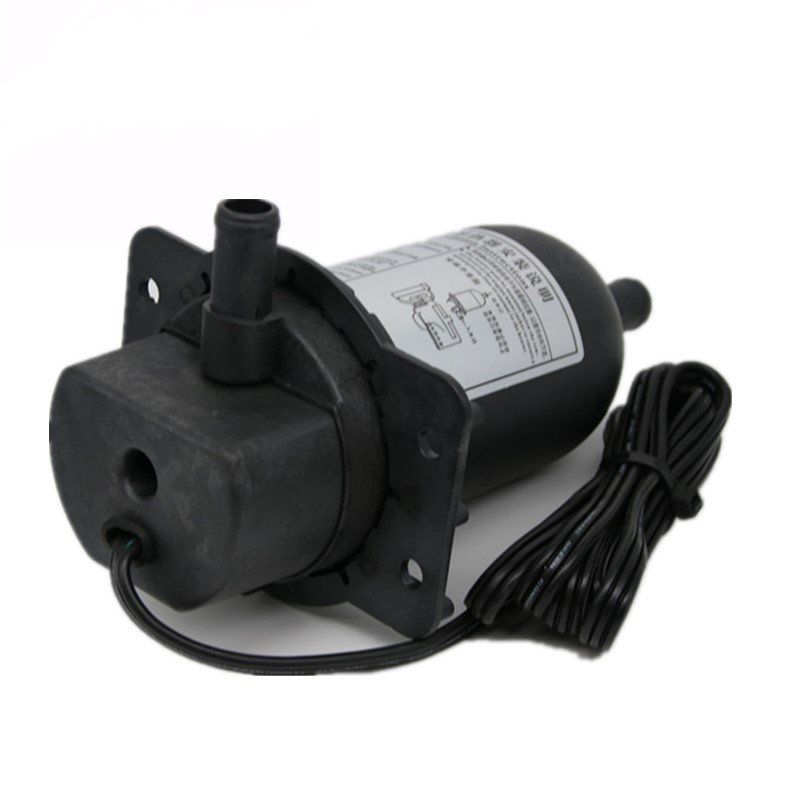

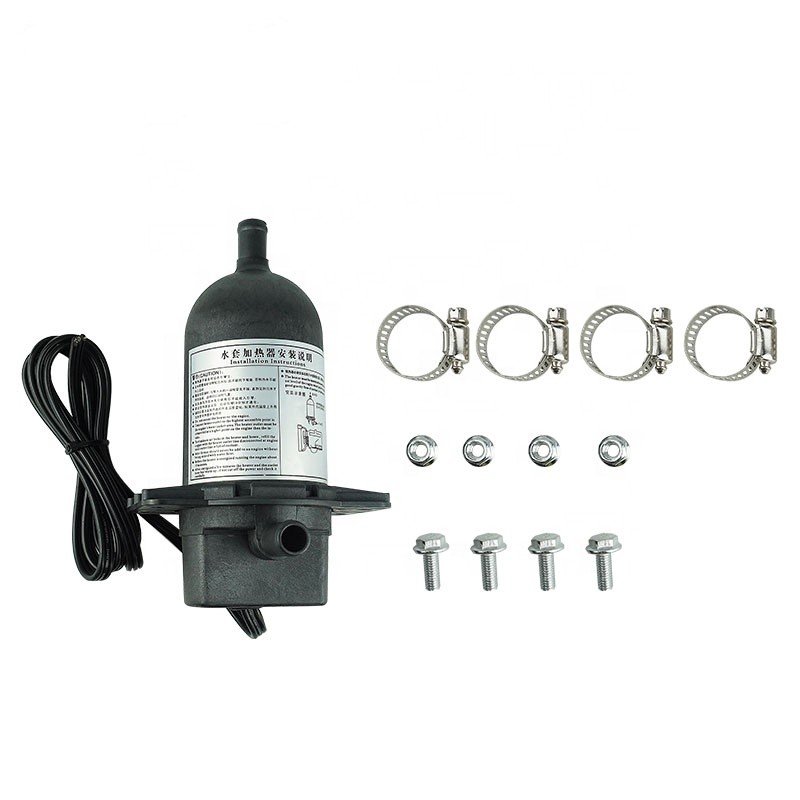

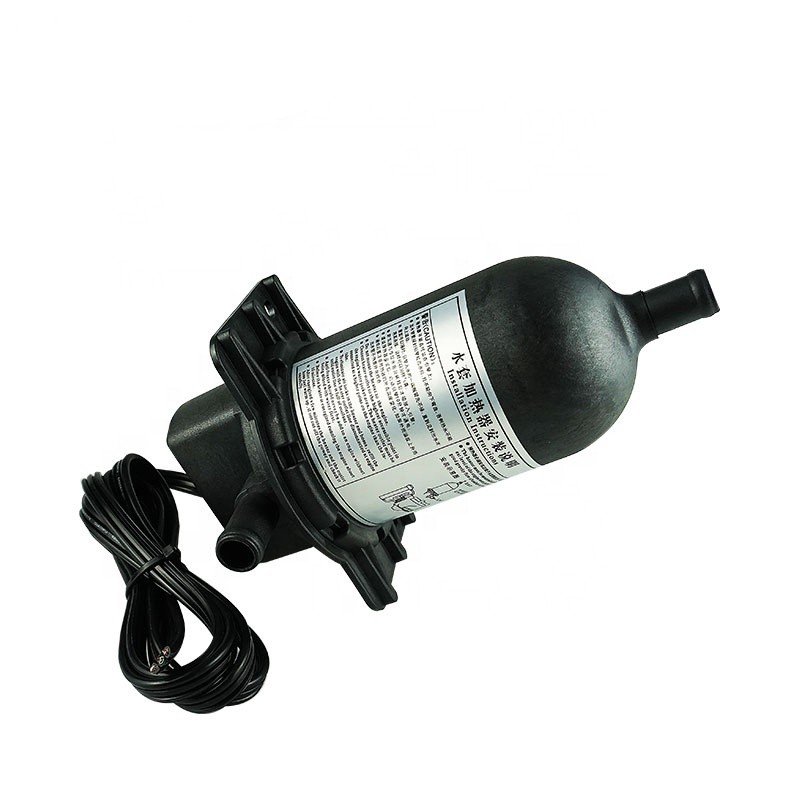

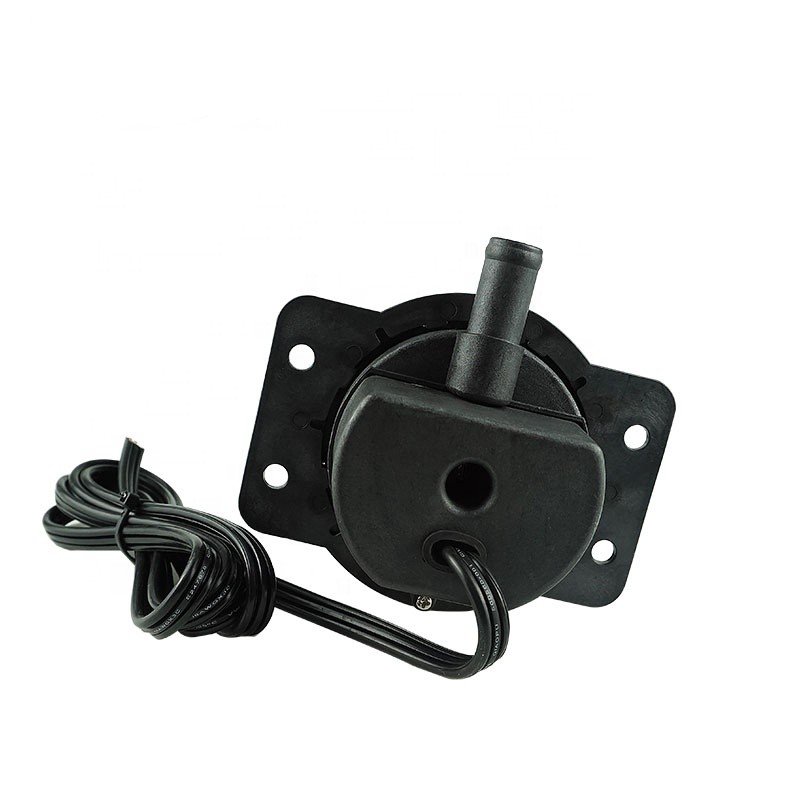

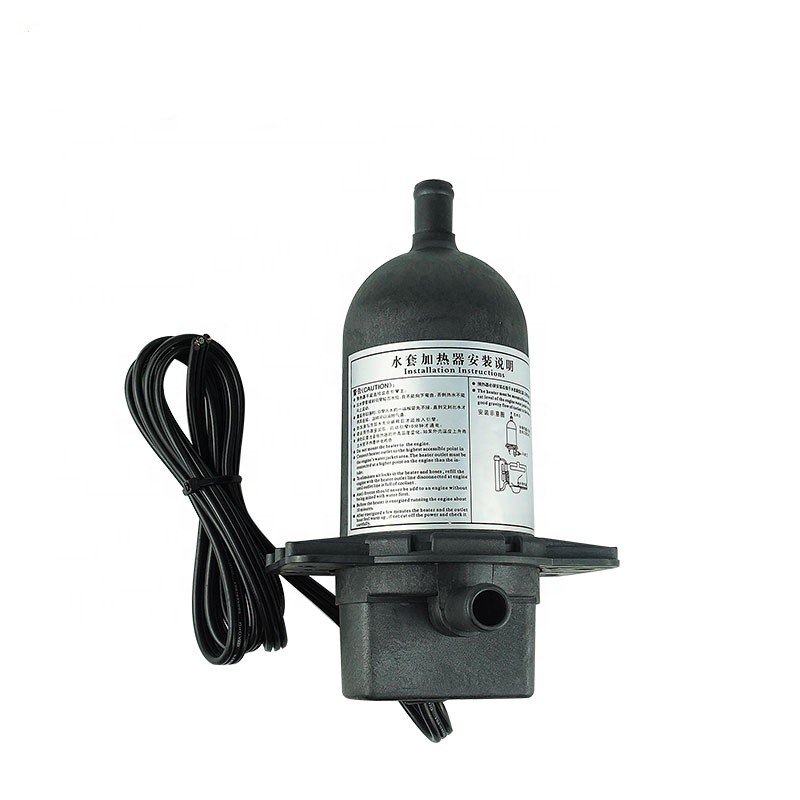

Water Jacket Heater FS-001-0.5 Pictures:

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that each product is used by customers assured.

Oil Pressure Sensor.png

Genset Controller.png
