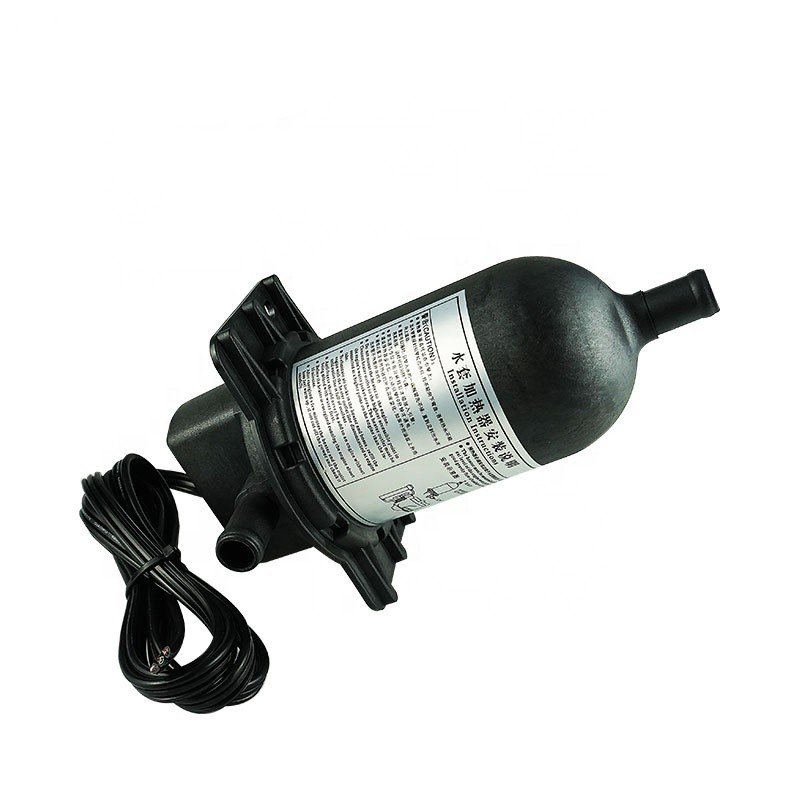

Water Jacket Heater FS-001-1 Diesel Genset Engine Coolant Heater 500W-4000W

Product Name: Water Jacket Heater FS-001-1
Model Number: FS-001-1 1000W
Voltage: 220-240V
Output: 1000W 220V/240V
Insulating Resistance: >50mo
Thermostat set point: 45 degree
Inlet/outlet size: 16mm
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 1 kg
Certificate: CE,RoHS,ISO9001
Quality Class: A grade high quality
Warranty: 1 Year
Supply Ability: 5000 Piece/Pieces per Month
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Water Jacket Heater FS-001-1 Diesel Genset Engine Coolant Heater 500W-4000W Specifications:

The water jacket heater uses an external power supply to preheat and maintain the engine cooling water and lubricating oil to ensure that the diesel engine equipment works normally in a low temperature environment.

Water Jacket Heater FS-001-1 Features:

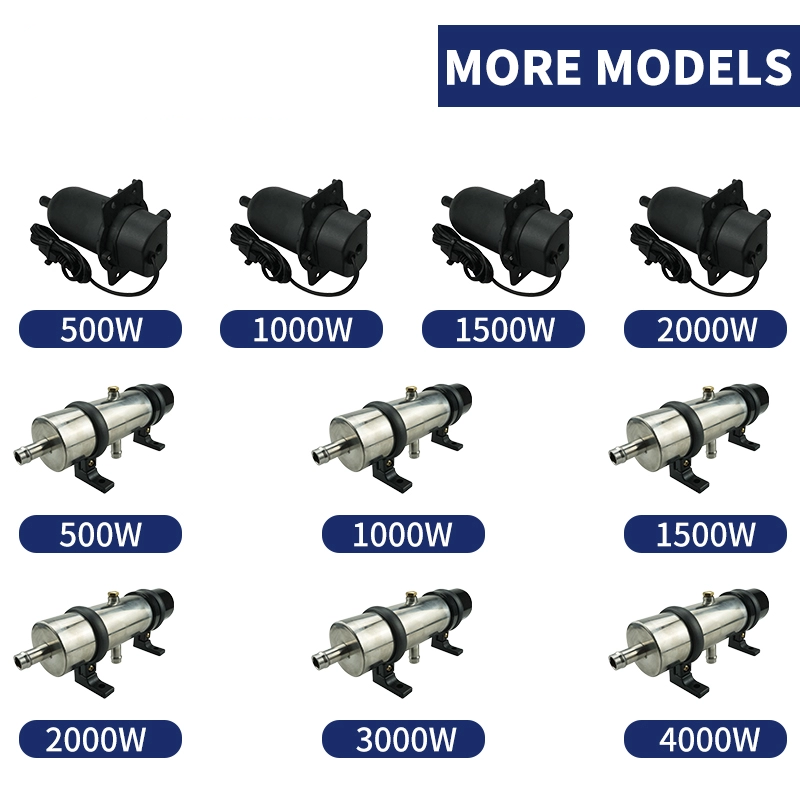

Engine Preheater Water Heater For Diesel Generator 500W, 1000W, 1500W, 2000W, 3000W, 4000W Genset Jacket Electric Heater

110V/220V/240V for option

MODEL

FS-001-0.5

FS-001-1

FS-001-1.5

FS-001-2

RATED POWER

500W

1000W

1500W

2000W

RATED VOLTAGE

AC240V

RATED CURRENT

2A

4.2A

6.3A

8.3A

ENGINE DISPLACEMENT

0-2.5L

2.5-5.7L

5.7-8.2L

8.2-13L

THERMOSTAT SET POINT

45 Degree

TEMPERATURE SWITCH

Off/45C, On/25C ,Customized

INSULATING RESISTANCE

>=50MO

ELECTRICAL STRENGTH

AC 1.5KV 1MIN

INLET/OUTLET SIZE

16mm

MAX.WATER PRESSURE

0.5Mpa

PROTECTION CLASS

IP54

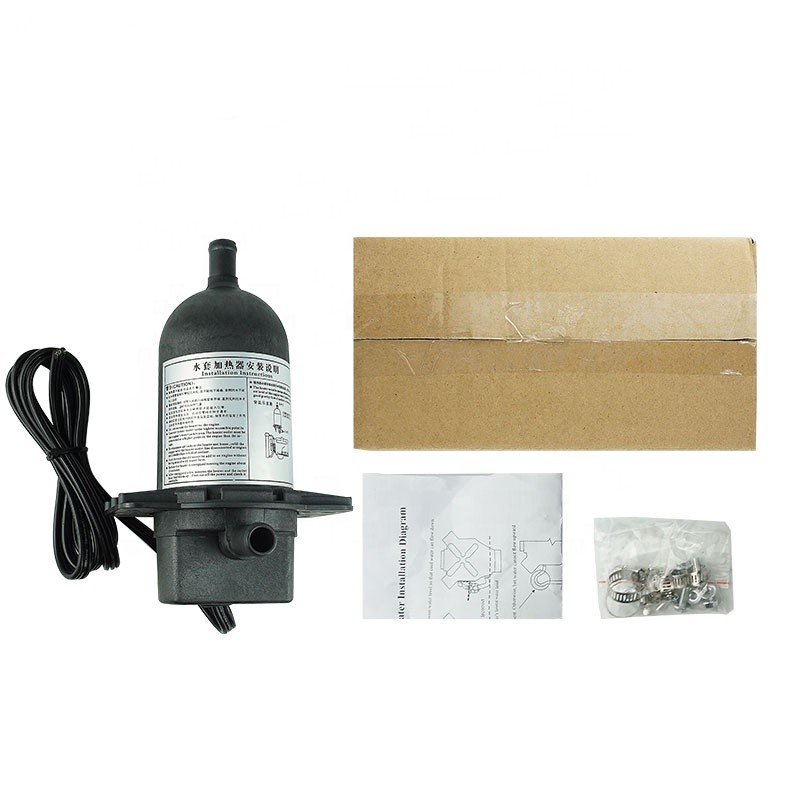

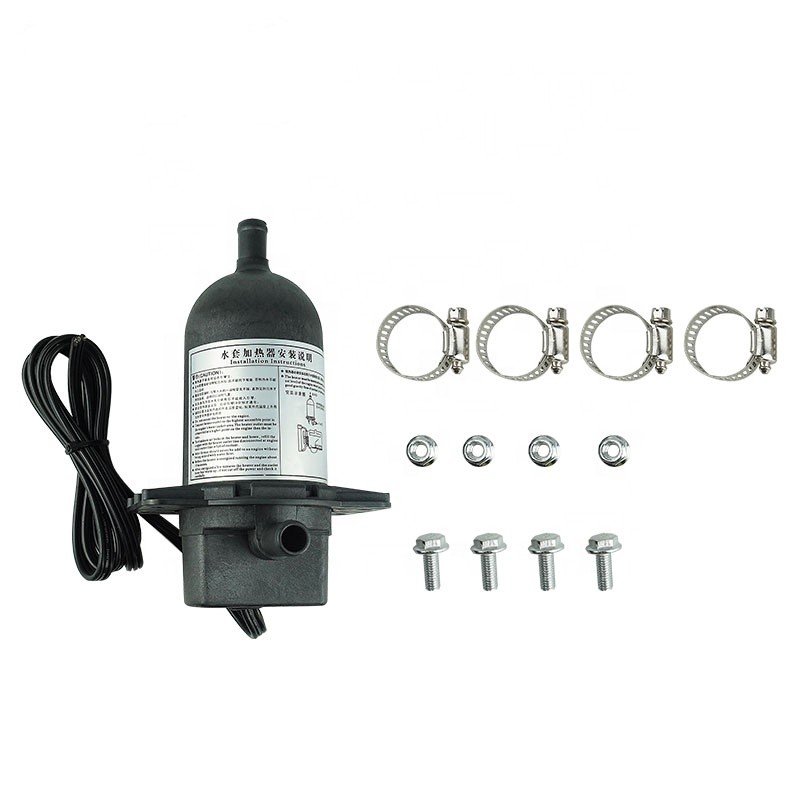

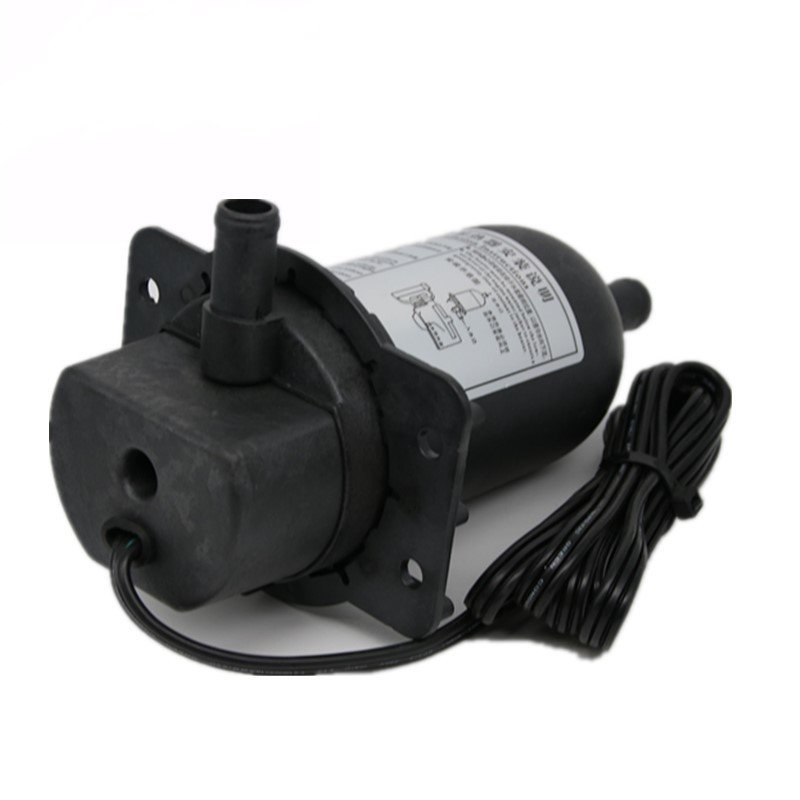

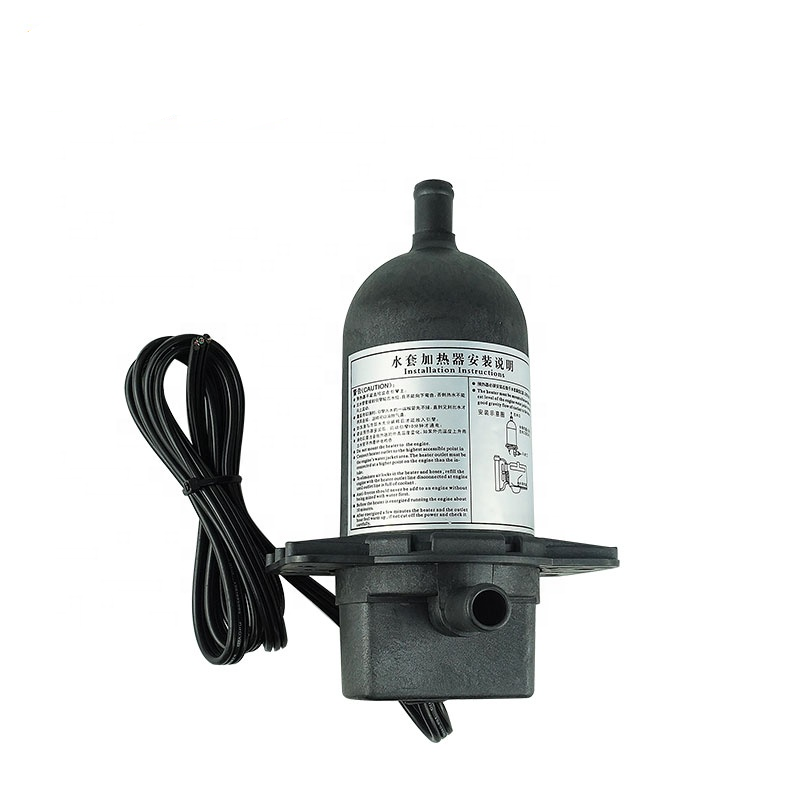

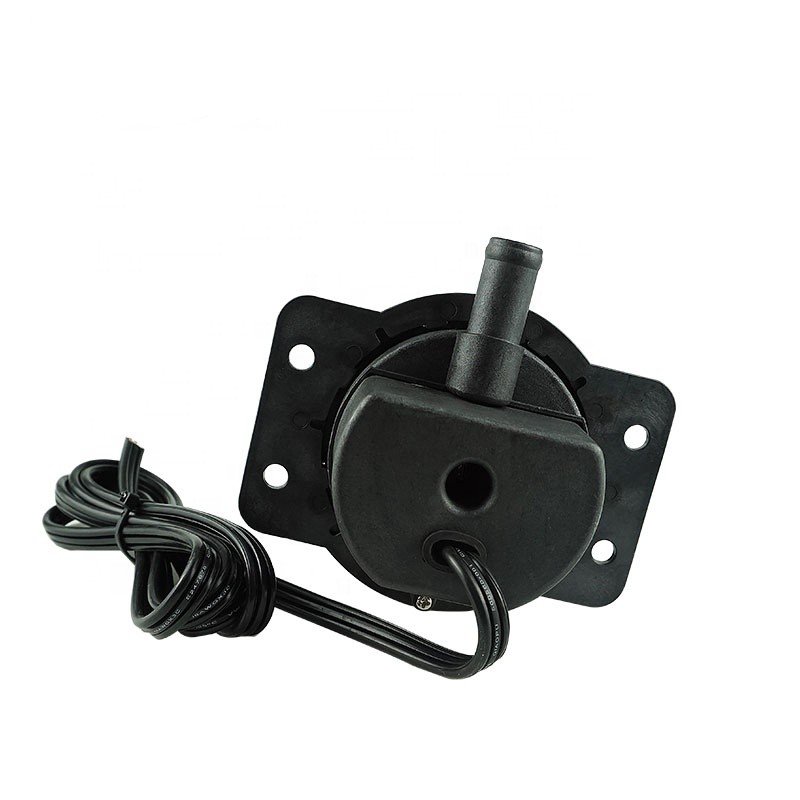

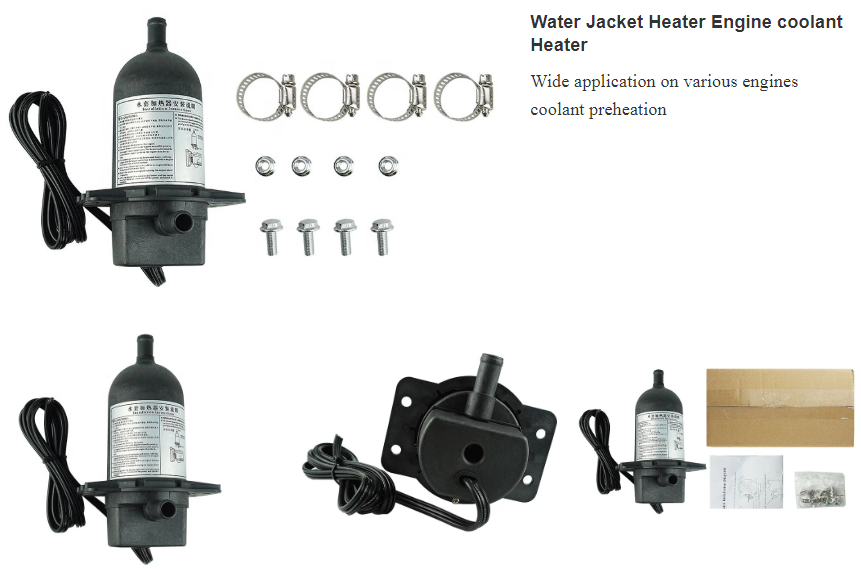

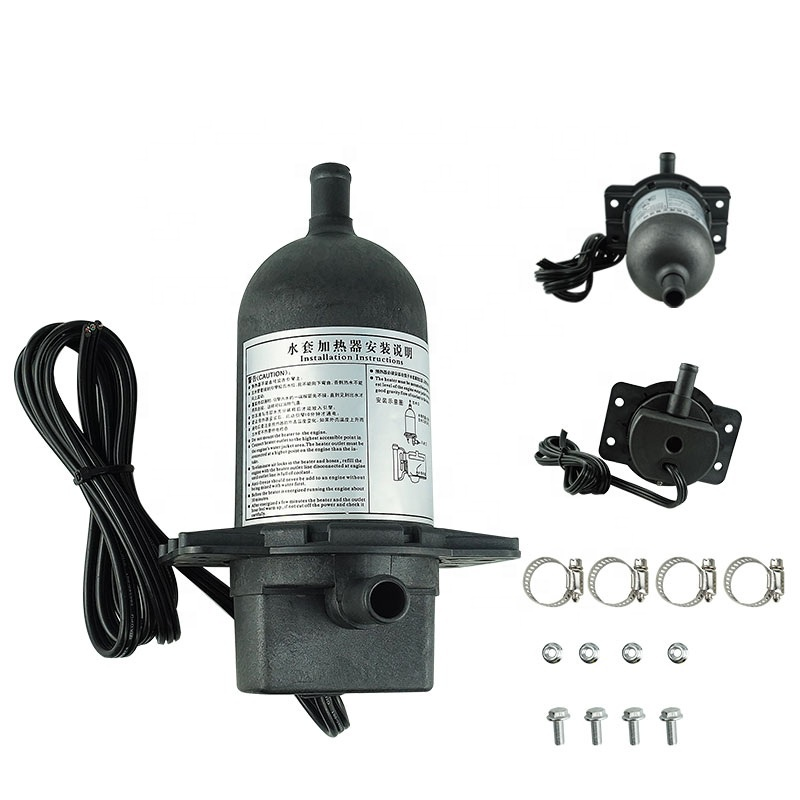

Water Jacket Heater FS-001-1 Pictures:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
