R450 Alternator Avr R450 AVR For Leroy Somer Alternator Genset Generator

Product Name: AVR R450
Model Number: R450
Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single package size: 35X25X20 cm
Single gross weight: 1.5 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

  R450 Alternator Avr R450 AVR For Leroy Somer Alternator Genset Generator


R450 Alternator Avr R450 AVR For Leroy Somer Alternator Genset Generator Specifications:


R450 AVR is an analog A.V.R.. It is designed for alternators with a SHUNT, AREP or PMG excitation .

R450 AVR for Genset controls the excitation current in order to maintain the output voltage of the alternator. R450 is performant in terms of voltage regulation, simple to set, to use and is reliable.

Rotating switch for U/f, LAM, excitation type and voltage sensing are available. It is in compliance with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved

Leroy Somer Generator Spare Parts AVR Voltage Regulator R450

AVR R450

Sensing voltage terminal 0-110V=95- 140V terminal 0-220V =170-260V terminal 0-380V=340-520V
Frequency 50-60Hz
Voltage input 40-50VAC, 3 phase
Harmpnic auxiliary winding 6-150VAC (no-load rms)
Output Voltage max 160VDC at 120VAC input
Current max 10A
Resistance 15 Ω minimum
Regulation +/-5% RMS with 4% engine governing
Voltage build-up Residual voltage at avr terminal≥5VAC
External Voltage Adjustment +/-10% with 1k ohm 1 watt trimmer

AVR R450 Replacement for Alternator Genset Parts

We have AVR R450 Replace for Leroy Somer Alternator in our regulator stock with Reasonable Price!

R450 AVR FOR SHUNT, AREP or PMG ALTERNATORS

We have Replacement Models for Generator: R220, R230, R250, R438, R448, R449, R450, R450M, R450T

Other AVR Models We Provide:(Product increasing ,some may not list below)

SX460 SX440 AS440 AS480 MX321 MX341 MX450...

R220 R230 R250 R438 R448 R449 R450 R450M R450T...

GAVR-8A GAVR-12A GAVR-15A GAVR-20A AVR-35A POW50A POW50B 703 704 701 AVR-100A...

M40FA640A M16FA655A...

VR6 K65-12B K125-10B AVC63-12B...

UVR6 SR7 DSR DER....

.....


R450 Alternator Avr R450 AVR For Leroy Somer Alternator Genset Generator Features:

Operation mode : Standalone

Main feature and characteristics of R450 AVR for diesel alternator:

- Voltage regulation : ± 0.5 %.

- Under-speed protection by function :

1 U/f (LAM : OFF).

2 U/f (LAM : MODE1).

Auto-adaptating LAM + 2 U/f (LAM : MODE 2).

- Nominal excitation current : 6A.

- Maximum excitation current : 10A during 10 s.

- Provide range 150V (50Hz/60Hz).

- Voltage détection : ≤ 530 V.

- Protection : fuse fast 10A.

- Protection on load, short-circuit and voltage reference loss.



Operation conditions R450 AVR for Leroy Somer Genset:

- Operating temperature range : - 40° C à + 65° C.

- Storage temperature range : - 55° C à + 85° C.

- Hygrometry : 98%.

- Maximum choc : 9 g on 3 axis..

- Vibrations : less than 10 Hz , 2 mm peak magnitude.

From 10 Hz to 100 Hz : 100 mm/s, below 100 Hz : 8g.

Optional modules compatible of R450 AVR for diesel genset

- R 731 : three phase voltage sensing.

- R 734 : 3-phase current and voltage sensing for parallel operation

- R 726 : regulation system changed to “4 - function”



Connexion and setting of R450 AVR for  Alternator:

Settings are done through the A.V.R.

- Potentiometer P1 : voltage setting.

- Potentiometer P2 : stability setting.

- Potentiometer P3 : excitation.

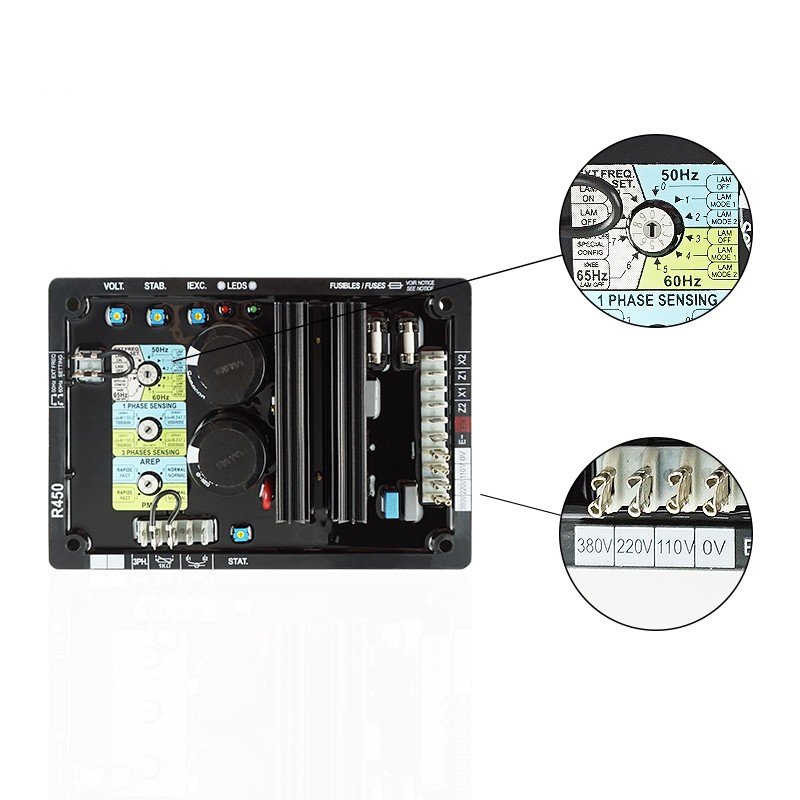

- Rotating switch selection 1 : frequency, U/F function, LAM function

- Rotating switch selection 2 : alternator type and voltage sensing (1 ph. ou 3 ph.).

- Rotating switch selection 3 : excitation type (AREP or PMG) and time response.

- Potentiometer P4 : quadrature droop.

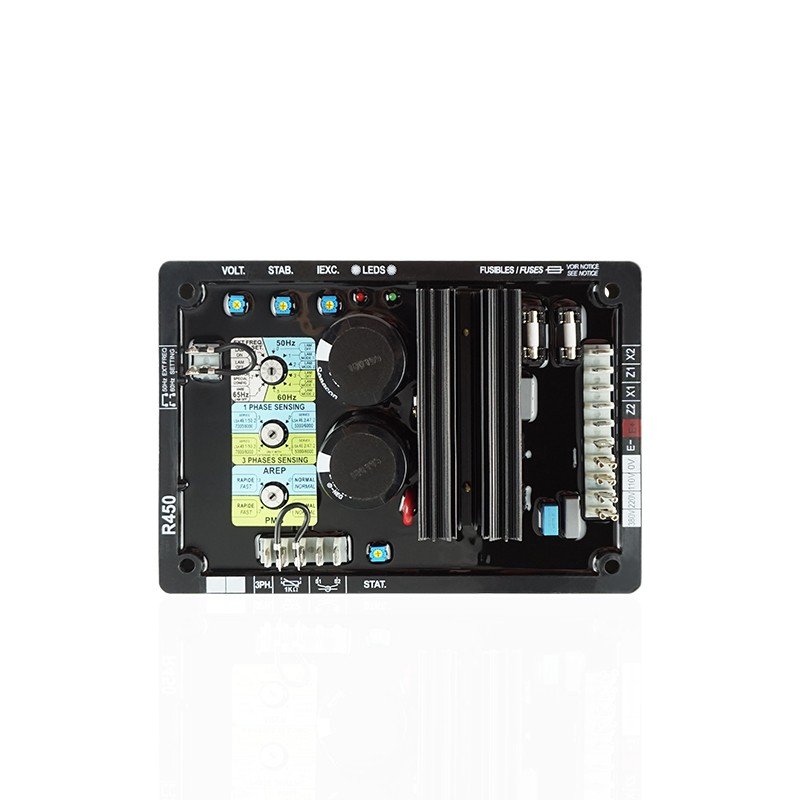

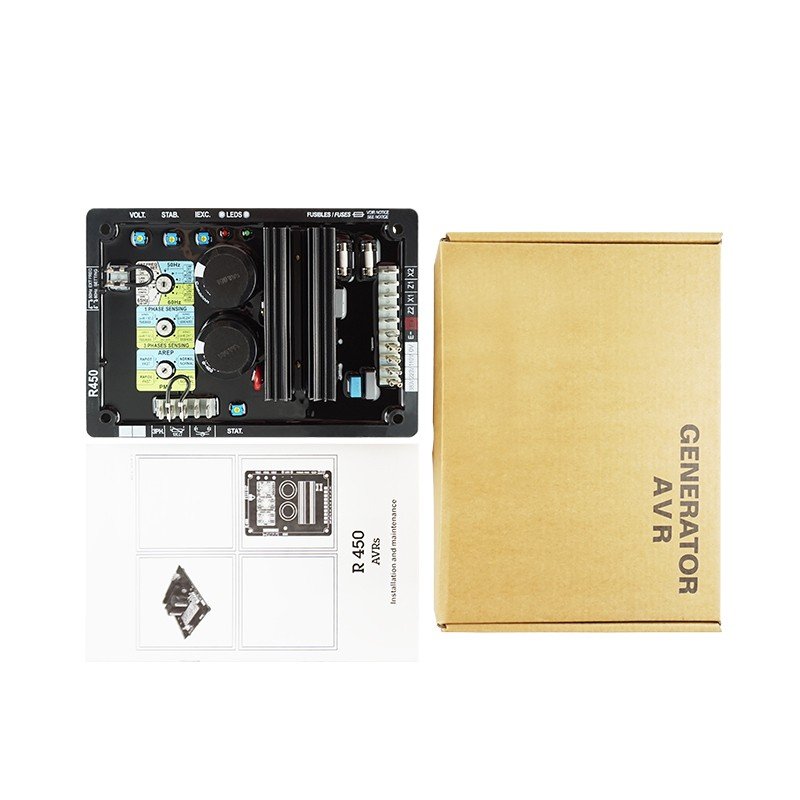

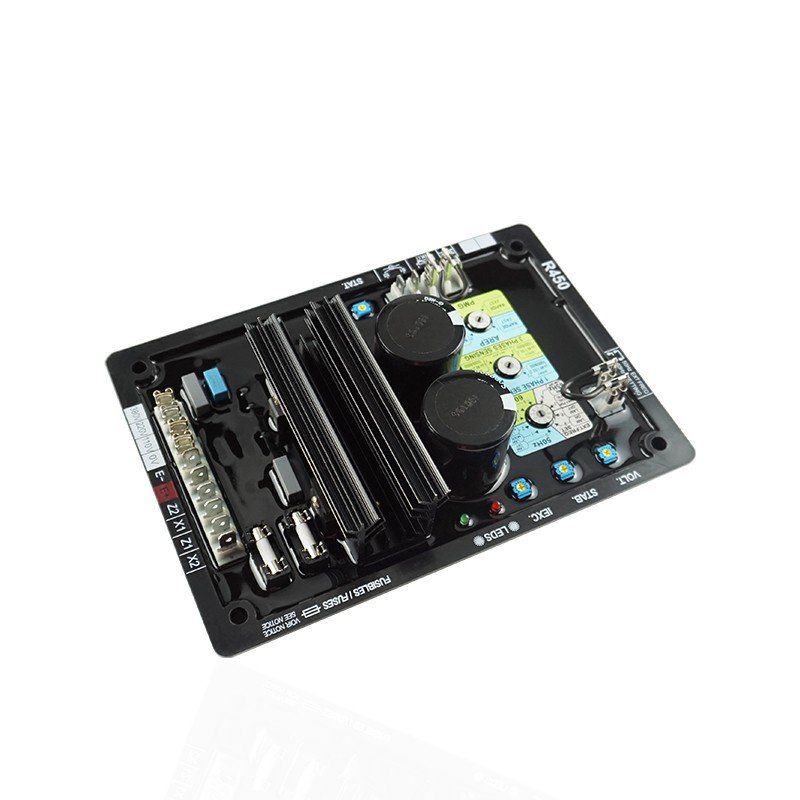

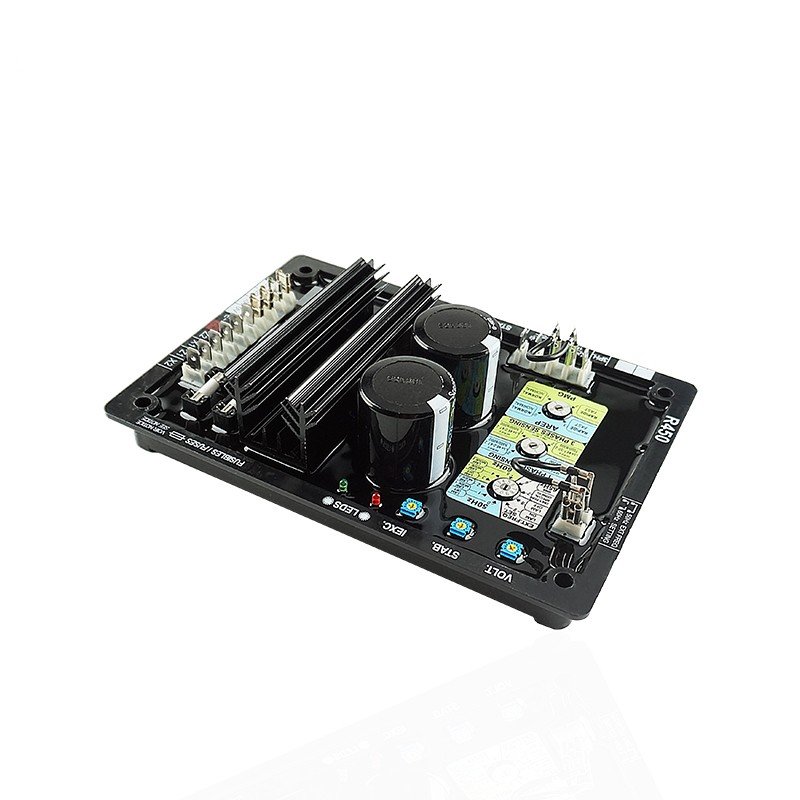

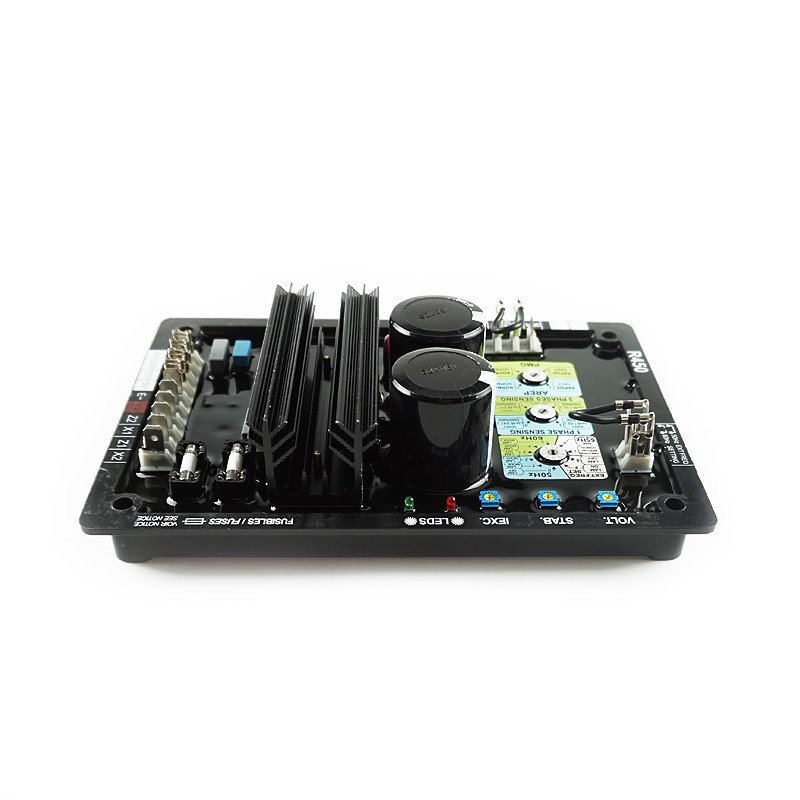

R450 Alternator Avr R450 AVR For Leroy Somer Alternator Genset Generator Pictures:
