R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator

R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator

Product Name: AVR R450M
Model Number: R450M
Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Single package size: 35X25X20 cm
Single gross weight: 1.5 kg
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

Email us

R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator

R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator Specifications:

Generator Voltage Stabilizer Single phase AVR R450M For Diesel Engine is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

We have Replacement Models for Generator: R220, R230, R250, R438, R448, R449, R450, R450M, R450T

Other AVR Models We Provide:(Product increasing ,some may not list below)

SX460 SX440 AS440 AS480 MX321 MX341 MX450...

R220 R230 R250 R438 R448 R449 R450 R450M R450T...

GAVR-8A GAVR-12A GAVR-15A GAVR-20A AVR-35A POW50A POW50B 703 704 701 AVR-100A...

M40FA640A M16FA655A...

VR6 K65-12B K125-10B AVC63-12B...

UVR6 SR7 DSR DER....

.....

R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator Features:

Product Name	R450M
SENSING/POWER INPUT
Voltage	95-480VAC, 1 phase
MAGNETIC FIELD OUTPUT
Voltage	Max 160VDC at 120VAC input
Current	Max 10A
PRESSURE REGULATING ACCURACY	<+/0.05%RMS with 4% engine governing

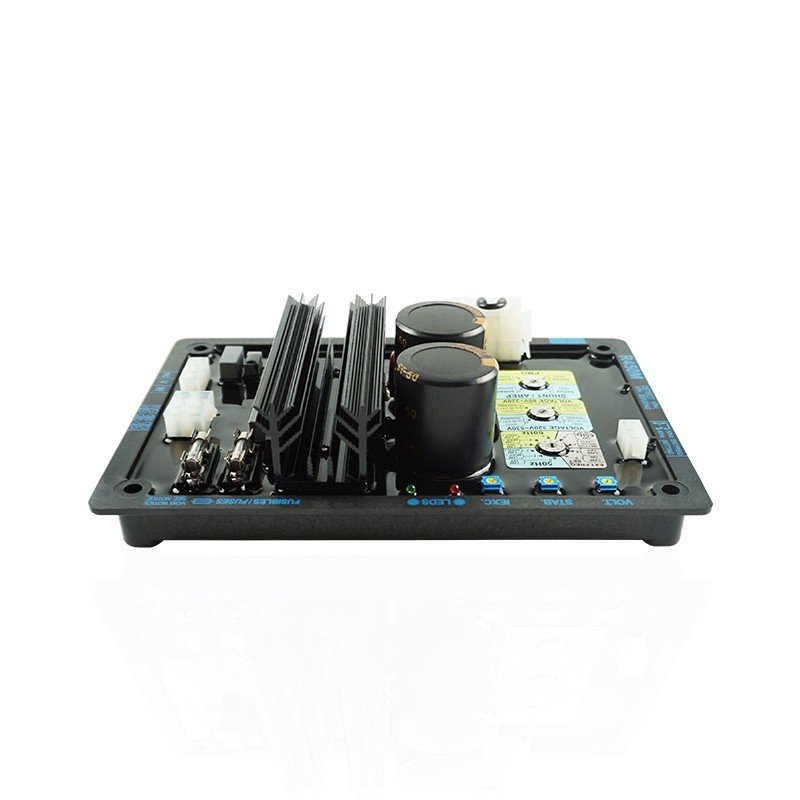

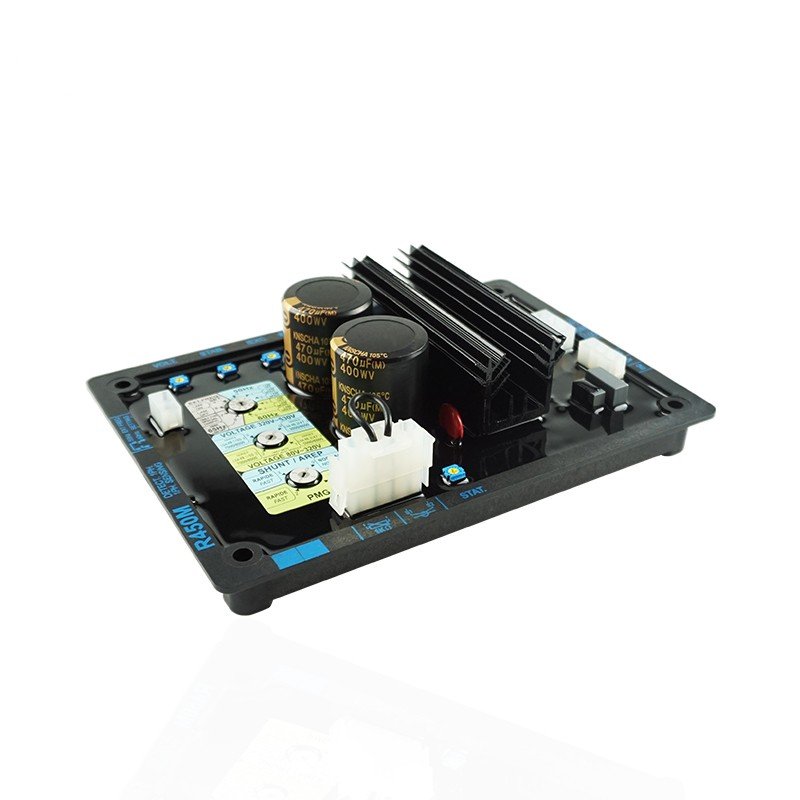

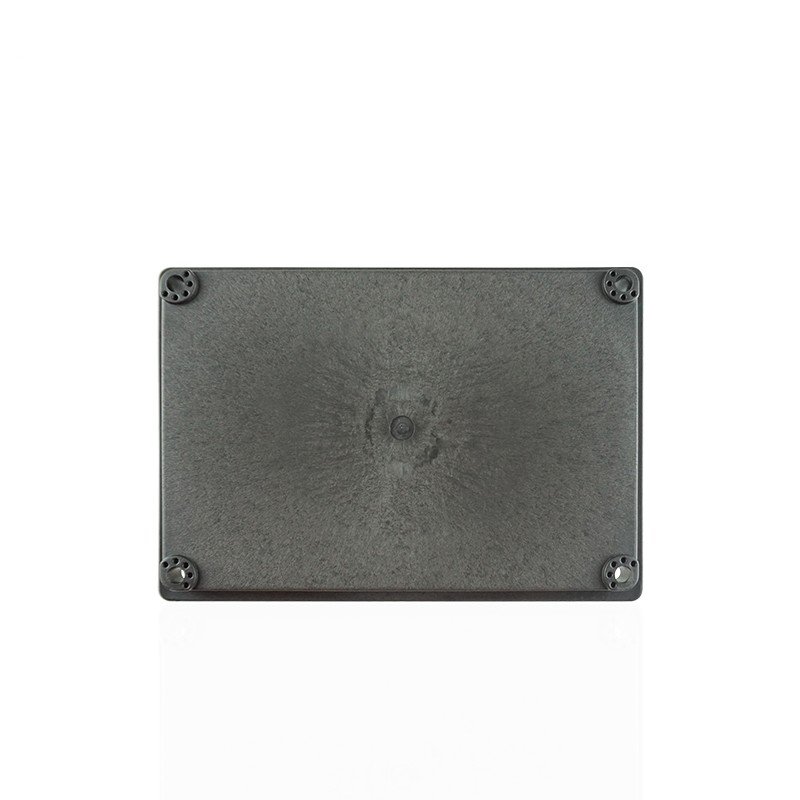

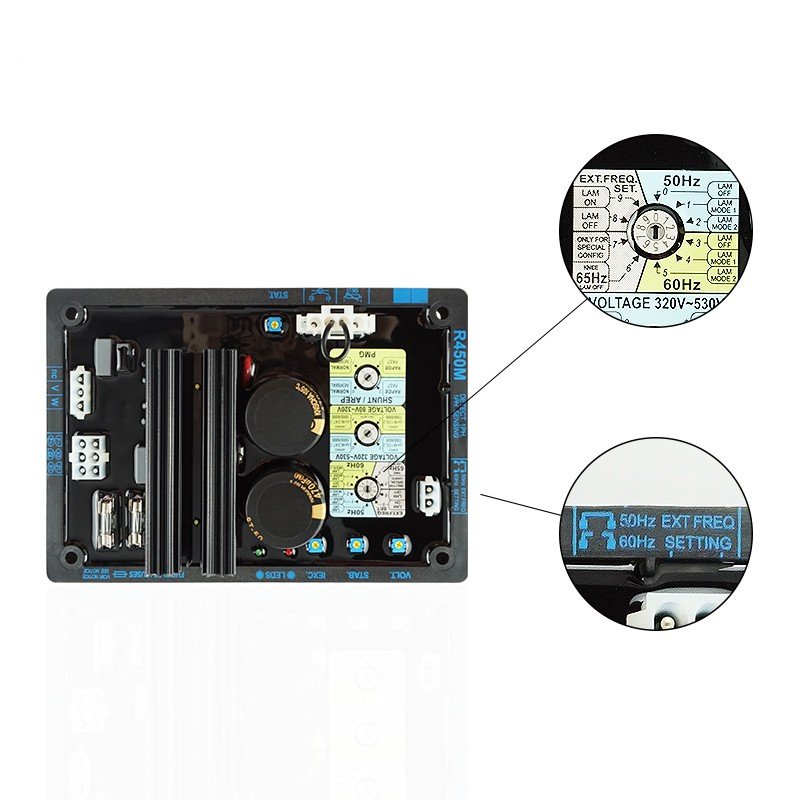

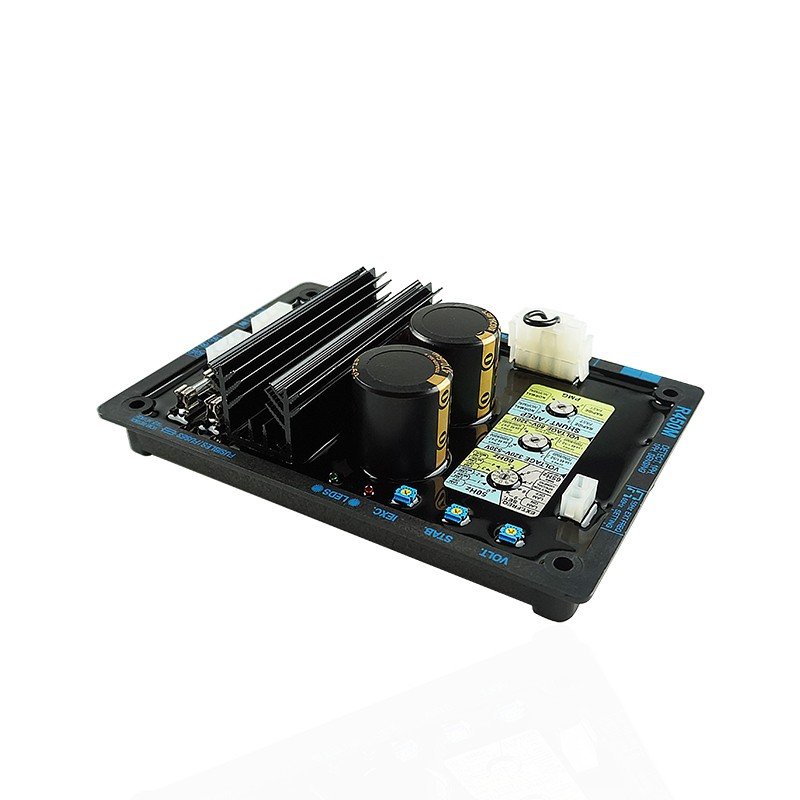

R450M Diesel Generator Voltage Stabilizer AVR R450M Automatic Voltage Regulator Pictures:

More Genset Parts:

Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that each product is used by customers assured.

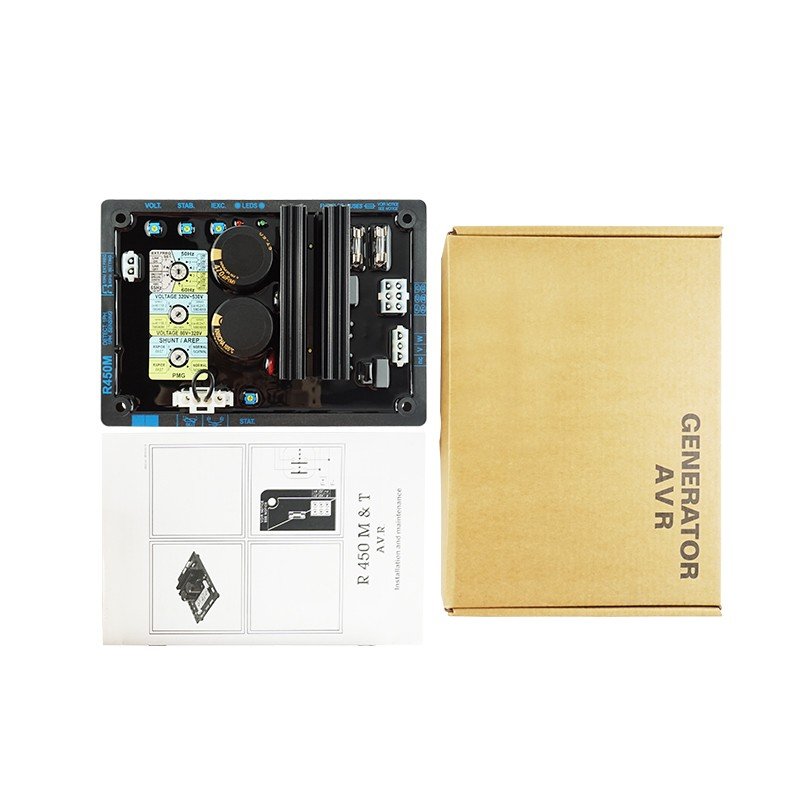

Our Packing:
