KI-DAVR-150S3 Aluminum Single Phase 10KW For Kipor Generator

Product Name: KI-DAVR-150S3 Kipor AVR
Model Number: KI-DAVR-150S3
Certificate: CE,RoHS,ISO9001
Function: Automatic Voltage Regulator AVR
Quality Class: A grade high quality
Warranty: 1 Year
Selling Units: Single item
Supply Ability: 5000 Piece/Pieces per Month
Function: Stabilize and regulate voltage, Replaced for generator avr
Packaging Details: Each one into small inner box then into Strong Export Standard Carton

KI-DAVR-150S3 Aluminum Single Phase 10KW For Kipor Generator


KI-DAVR-150S3 Kipor AVR Specifications:

Aluminum Single Phase 10Kw AVR KI-DAVR-150S3 For Kipor Generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name

KI-DAVR-150S3

SENSING/POWER INPUT


Voltage

120(90-132VAC) or 240(190-264VAC), 1 phase 2 wire

MAGNETIC FIELD OUTPUT


Voltage

max 90VDC at 207VAC input

Current

continuous 4A, intermittent 10A within 10 seconds

PRESSURE REGULATING ACCURACY

<+/-1%RMS with 4% engine governing

KI-DAVR-150S3 Kipor AVR Features:

more series AVR

MODEL

OUTPUT

PHASE

BODY MATERIAL

DAVR-50S

5KW

SINGLE PHASE

PLASTIC

DAVR-50S3

5KW

THREE PHASE

PLASTIC

DAVR-95S

10KW

SINGLE PHASE

PLASTIC

DAVR-95S3

10KW

THREE PHASE

PLASTIC/ALUMINIUM

DAVR-150S

15KW

SINGLE PHASE

PLASTIC

DAVR-150S3

15KW

THREE PHASE

PLASTIC

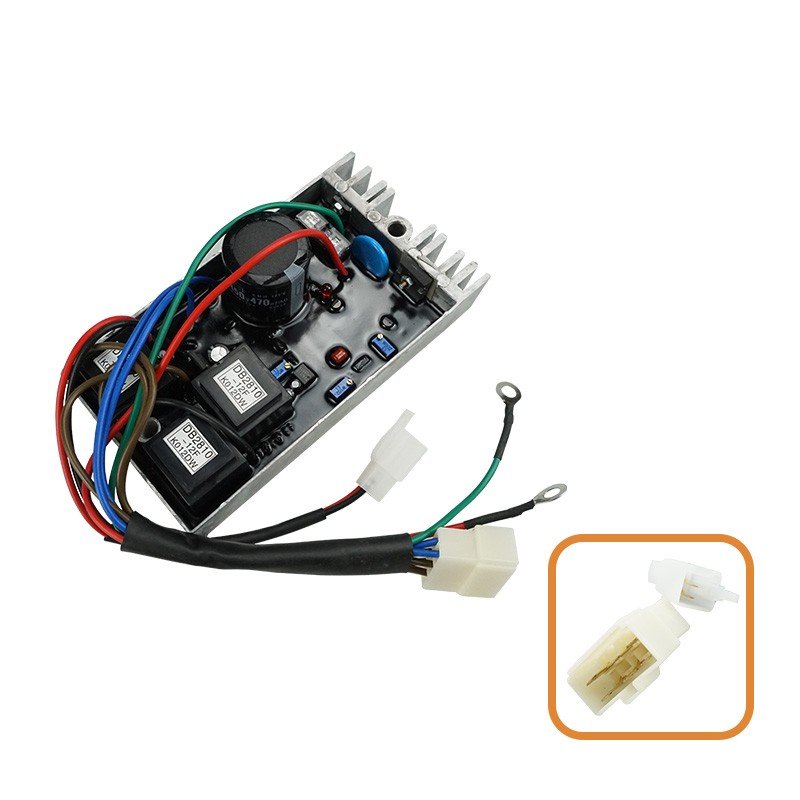

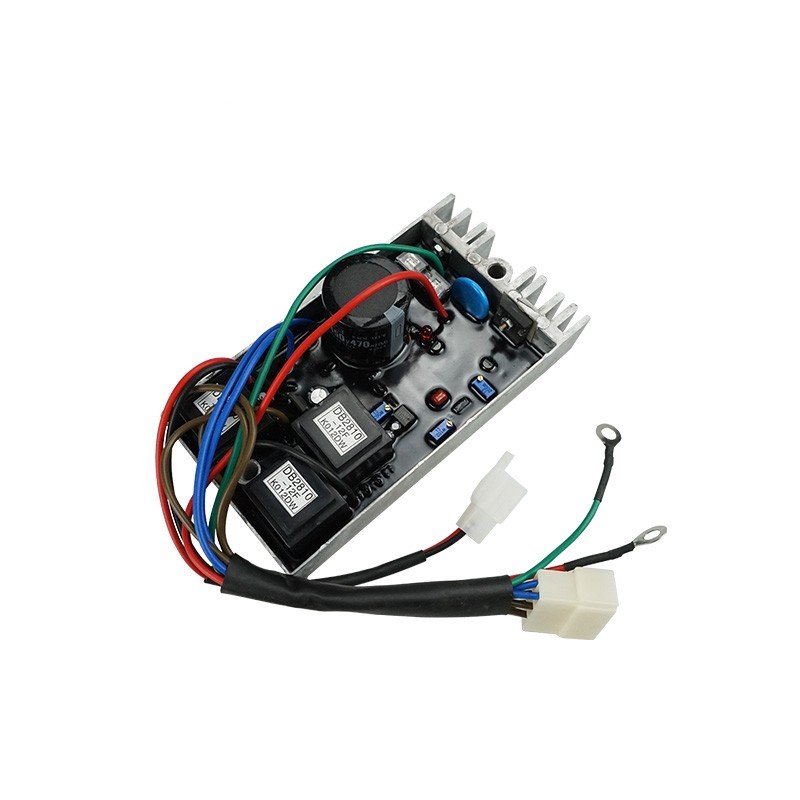

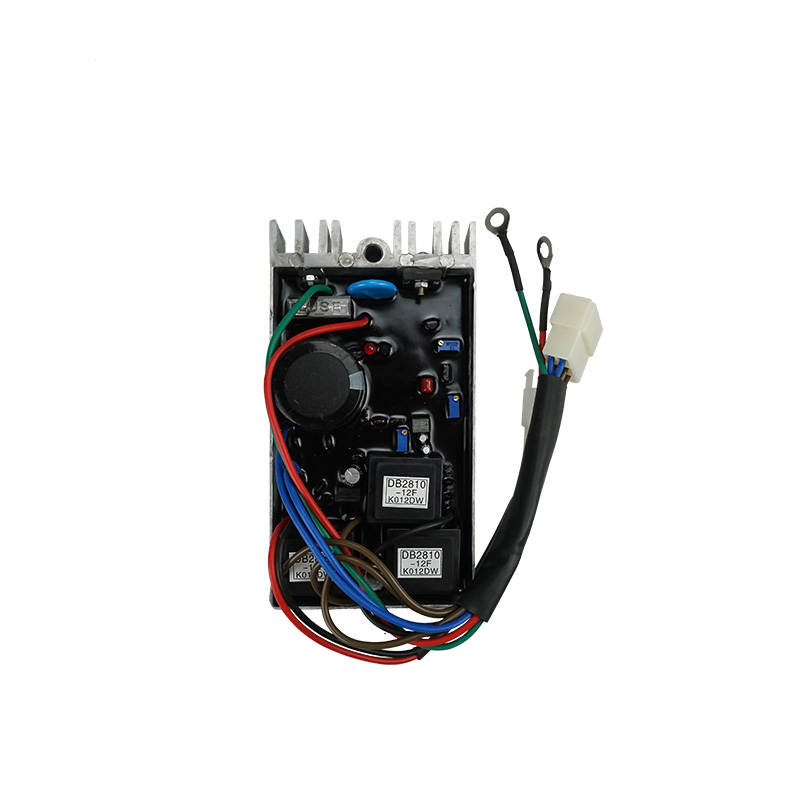

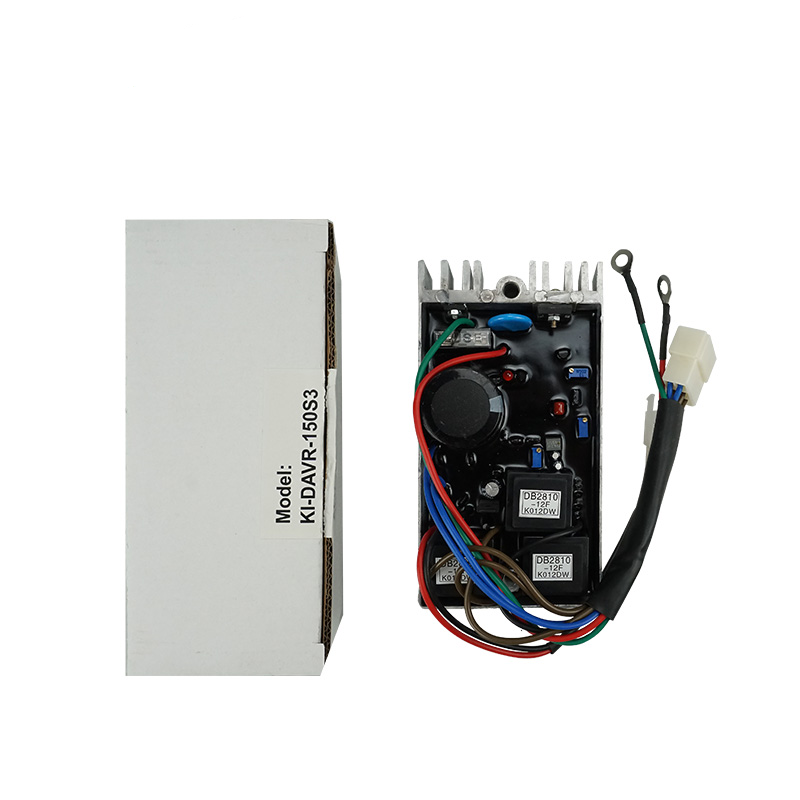

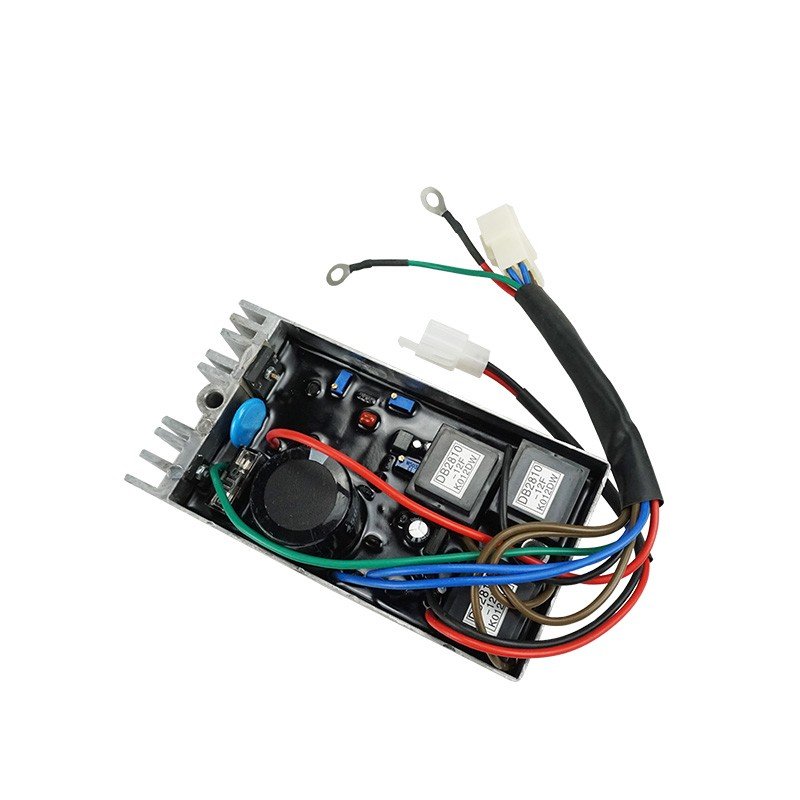

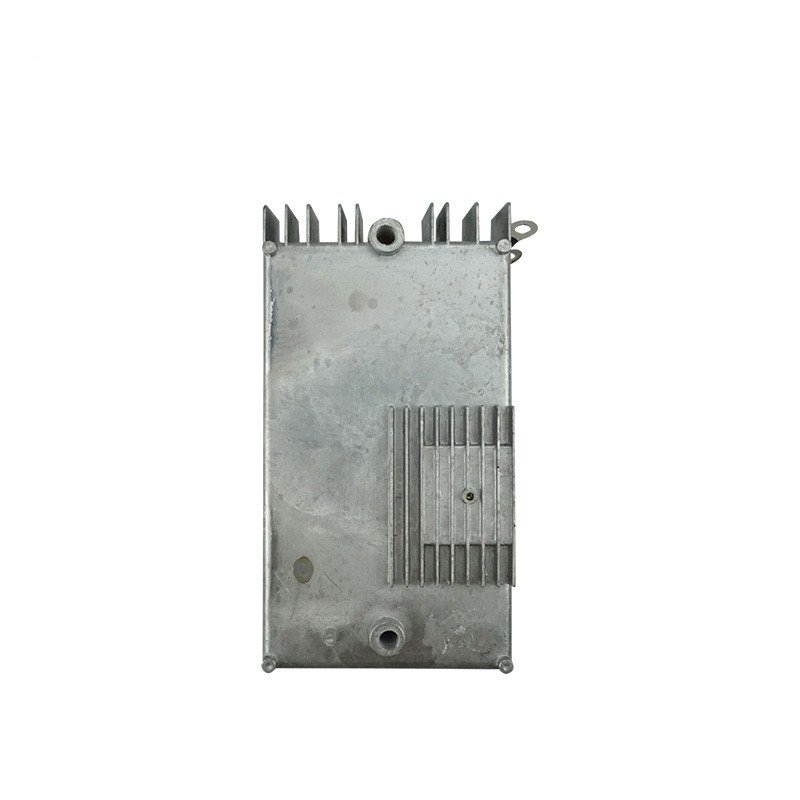

KI-DAVR-150S3 Kipor AVR Pictures:

Other more AVR stock in our warehouse.

AVR: SX460,SX440,SX450, MX321,MX341, AS480, AS440

AVR: R220,R230,R438,R448,R449,R250,R450, R450M, R120, R731

AVR: SE350, EA350, PX350

AVR: GAVR-8A, GAVR-8AH, GAVR-10A, GAVR-12A, GAVR-15A, GAVR-15C, GAVR-20A, GAVR-25A

AVR: VR6,AVC63-7,AVC63

AVR: UVR6;SR7

AVR: M40FA640A, M16FA655

AVR: EA04C, EA05A, EA16A

AVR: WT-2, WT-3

More Genset Parts:


Product Test:

Advanced equipment

Factory used the advanced equipment to produce, assembly and inspect the AVR. To ensure the high accuracy


AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory.  Ensure that each product is used by customers assured.
